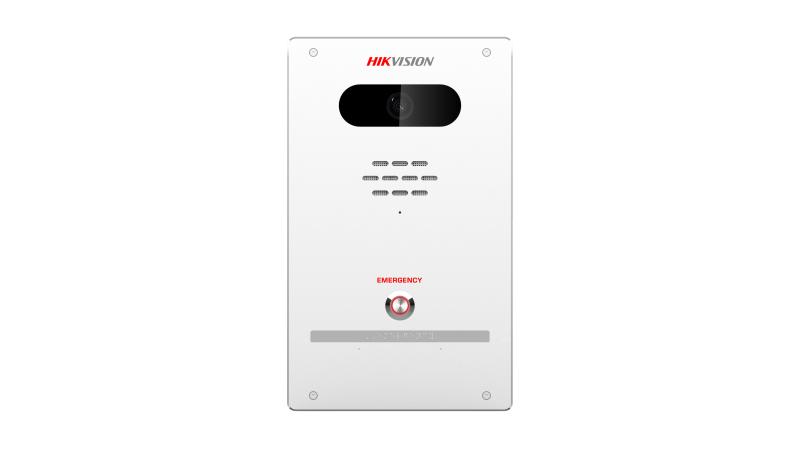

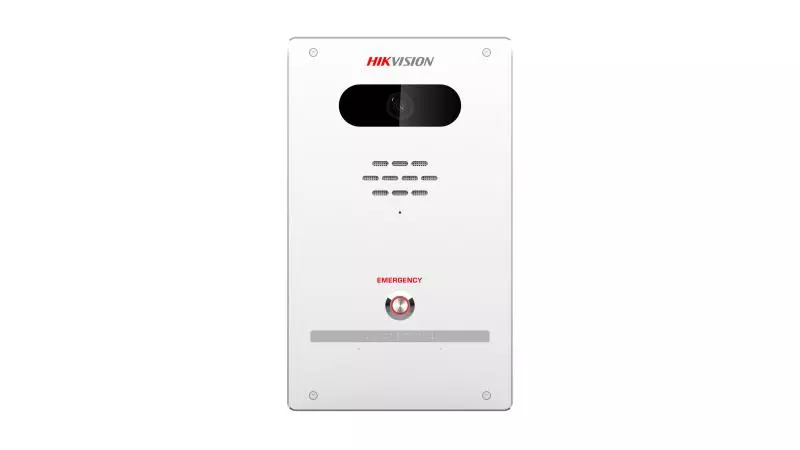

Hikvision DS-PEAP-CV1E(B)

Wired network

10 M/100 M Self-adaptive Ethernet port

Network encryption

Supports User Lock-in and Password Security Prompt

SD card

Standard Micro SD Card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G

Tamper-Proof

Support

Fill light

Infrared Light

Resolusion

2560*1440

Field angle

Horizontal: 109°;Vertical: 86°;Diagonal: 142°

Day/night switch mode

Auto switching

Video compression standard

H.264;H.265

Frame rate

25fps

Audio output

1-ch 3 W Build-in Loudspeaker;1-ch 3.5 mm Audio Interface for External Audio Output

Audio input

1-ch Built-in Omnidirectional Microphone;Pickup Distance: 2 m;listening Distance: 10 m;1-ch 3.5 mm Audio Interface for External Audio Input

Audio encoding/decoding standard

G.711U/PCM/ADPCM/AAC/OPUS

Audio compression code rate

16Kbps;64Kbps

Audio quality

Smart Noise Suppression

Power supply

12 VDCorRJ45 PoE

Operation humidity

10％ to 90％

Operation temperature

-40°C to 65°C

Power consumption

≤40W

IK rate

IK10

IP rate

IP65

Installation method

Embedded-mounted

Dimension(WxHxD)

229 mm × 138 mm × 44.5 mm

Application scenario

Outdoor

Shell material

Metal

Alarm output

2

Alarm input

2

Camera

Built-in 4MP HD IR Camera;IR Distance ≥ 10m

Protocol

TCP/IP, RTSP, SIP, ONVIF
