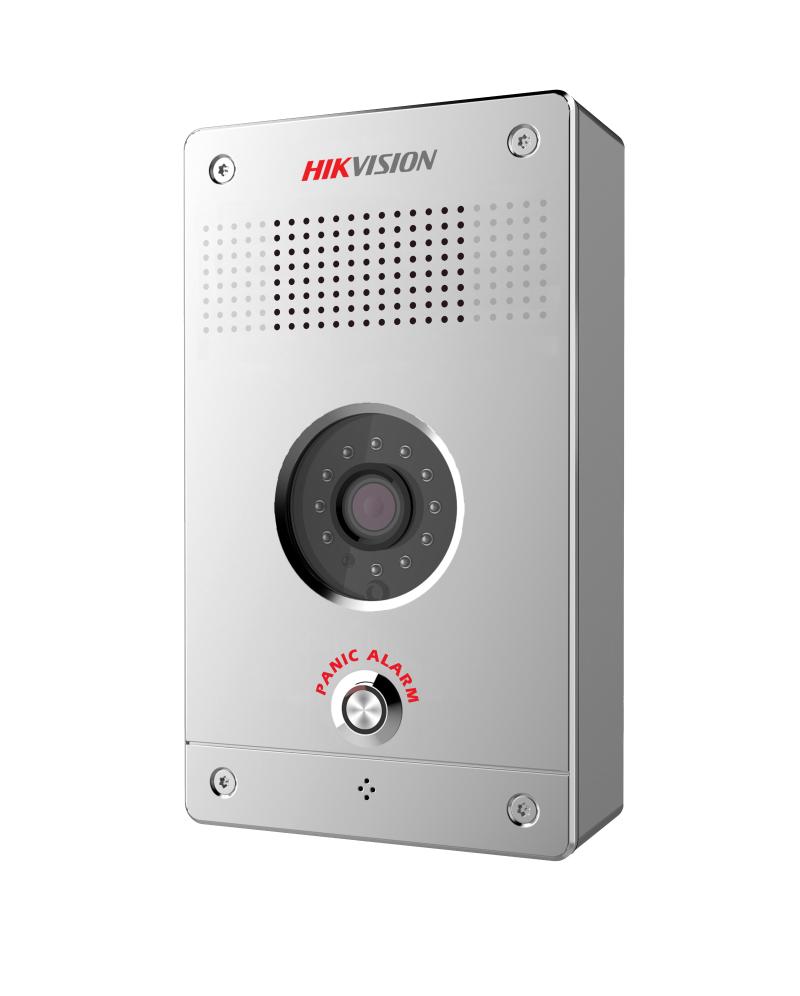

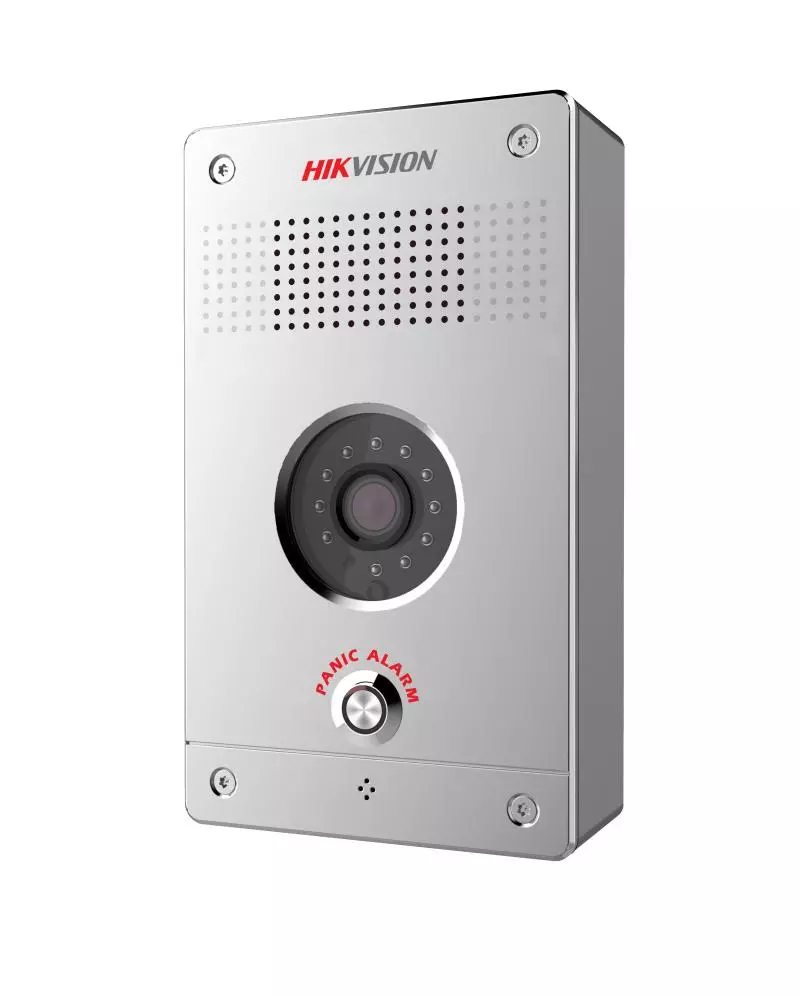

Hikvision DS-PEA22-F(B)

Sound pressure

110dB, Sound Can be Configured Separately

Tamper-Proof

tamper alarm

Intercom

1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m

Protocol

TCP/IP, RTSP, SNMP, HIK-SIP, Standard SIP, ONVIF

Alarm input

2

Alarm output

2

Netowrk interface

1RJ45,10 M/100 M/1000 M self adaptive

Audio interface

1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m;1-ch 3.5 mm Audio Interface for External Audio Input

PSTN

1

Bus

RS-485 1, Half-duplex

SD Card

Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 128G

Resolusion

1920*1080

Frame rate

25fps

Field Angle

Horizontal: 128°;Vertical: 75°;Diagonal: 147°;

Day/night switch mode

IR Cut Filter

Audio input

1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m;1-ch 3.5 mm Audio Interface for External Audio Input

Audio output

1-ch 30 W Build-in Loudspeaker;1-ch 3.5 mm Audio Interface for External Audio Output

Audio compression code rate

16Kbps;64Kbps

Power supply

12VDC

Power Consumption

≤ 24 W

Wired network

10 M/100 M Self-adaptive Ethernet port

Operation temperature

-40 °C to +60 °C (-40 °F to 140 °F)

Operation humidity

10% to 90%

Dimension(WxHxD)

218 mm × 128 mm × 58 mm (8.58″ × 5.04″ × 2.28″)

Installation method

Wall Mounting

Camera

2 MP HD IR Camera
