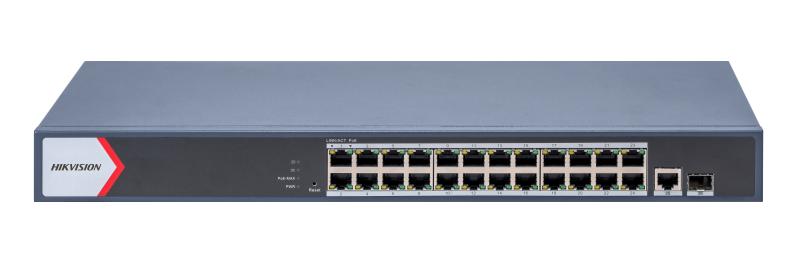

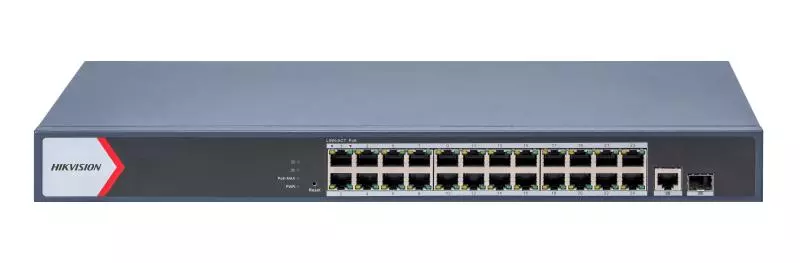

Hikvision DS-3E1526P-EI

Shell

Metal material

Net Weight

3.1 kg (6.83 lb)

Gross Weight

3.3 kg (7.27 lb)

Dimensions (W × H × D)

440.0 mm × 220.8 mm × 44.0 mm (17.32» × 8.69» × 1.73»)

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100~240 V AC, 50/60 Hz, Max. 6.3 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

400 W

Power Consumption in Idle

30 W

Surge Protection

6 KV

Ports

24 ×Gigabit PoE port,1 ×Gigabit RJ45 port,1 ×Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache

4.1 Mbits

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 24

Max. Port Power

30 W

PoE Power Budget

370 W

Long Range

Ports 1to 24: up to 300 m.;Long range performance may vary depend on camera model or cable condition.

PoE Watchdog

Ports 1to 24: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.;Support static link aggregation.;Support 8 aggregation group(s).

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.;Support 802.1D STP.;Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement.;Support 802.1Q.;Configurable VLAN ID from 1-4094.;Support Trunk, Access port mode.;Support Max. 32 VLAN.

Port Isolation

Ports 1to 24: port isolation mode to improve network security.;Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

System Maintenance

Support device management via web.;Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.;Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.;Support remote management via Hik-Partner Pro.;Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.;Support 802.1ab LLDP for peer device discovery.;Support port mirroring for fault locating.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:;1. Display the port rate.;2. Display the port bandwidth utilization rate.;3. Display the PoE power usage.;4. Display topology information.;5. Display the alarm status.;6. Restart ports and devices.;7. Enable port long-rage mode.;8. Remotely upgrade the device.

EMC

CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
