Hikvision DS-TMG520

Barrier Housing Material

SGCC

Barrier Housing Thickness

2.0 mm

Barrier Housing Door Thickness

1.5 mm

Barrier Housing Color

Orange

Barrier Housing Door Color

Orange

Boom Pole Installation Height

880 mm

Body Indicators

without indicator

Matched Boom Pole Type

Round boom pole: 1 to 4 m ;anti-collision Octagonal boom pole: 1 to 6 m;Octagonal telescopic boom pole: 4 to 6 m;Boom pole ≥ 5 m: with spindle rod

Rising/Falling Speed

DS-TMG520-H(3m): ;Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S;Falling: 3S(Default) Adjustable 1.5S, 2S, 3S;;DS-TMG520-M(4m): ;Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S;Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S;;DS-TMG520-L(6m): ;Raising: 4S(Default) Adjustable 4S, 5S, 6S;Falling: 6S(Default) Adjustable 4S, 5S, 6S;;DS-TMG520-M(4m telescopic pole): ;Raising: 2S(Default) Adjustable 2S, 2.5S;Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S;;DS-TMG520-L(5m telescopic pole): ;Raising: 4S(Default) Adjustable 4S, 5S, 6S;Falling: 6S(Default) Adjustable 4S, 5S, 6S;;DS-TMG520-L(6m telescopic pole): ;Raising: 4S(Default) Adjustable 4S, 5S, 6S;Falling: 6S(Default) Adjustable 4S, 5S, 6S

Boom Pole Direction

right by default, direction switchable

Boom Pole Falling Delay

10 s by default (configurable), min. 10 s (every 10 s followed a gap)

Motor Type

DC brushless motor

Number of Cycles

5000000

Working Voltage

220 VAC ± 15%

Remote Controller Frequency

433 MHz

Current

1.5 A

Consumption

300 W

Temperature and Humidity

-30 °C to 70 °C (-22 °F to 158 °F)

Rising Boom Pole for Poweroff

Optional, not supported by default

Barrier Housing Dimensions(L × W × H)

1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch)

Body Weight

59.3 ± 5 kg (130.7 ± 11.0 lb.)

Body Dimensions (with Package, Without Boom Pole)(L × W × H)

1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch)

Duty Cycle

100%

Rising to Limit

1 group

Falling to Limit

1 group

Open

1 group

Close

1 group

Stop

1 group

IR/Inductive Loop/Radar

1 group

RS-485

1 group

Traffic Signal Light

1 group, external power supply required, max. 220 VAC supported

Network

1 group (reserved)

RF

CE-RED;EN 300220-1 V3.1.1;EN 300220-2 V3.1.1;EN 301489-1 V2.2.3;EN 301489-3 V2.1.1;EN IEC 62311: 2020

EMC

CE-EMC：;EN 55032: 2015 + A11: 2020 + A1: 2020,;EN IEC 61000-3-2: 2019 + A1: 2021,;EN 61000-3-3: 2013 + A1: 2019 + A2: 2021,;EN 50130-4: 2011 + A1: 2014

Security

CE-LVD:;EN 62368-1: 2014 + A11: 2017;CB:;IEC 62368-1: 2014;IEC 62368-1: 2018

Environment

ROHS

Protection

IP54

Boom Pole Type

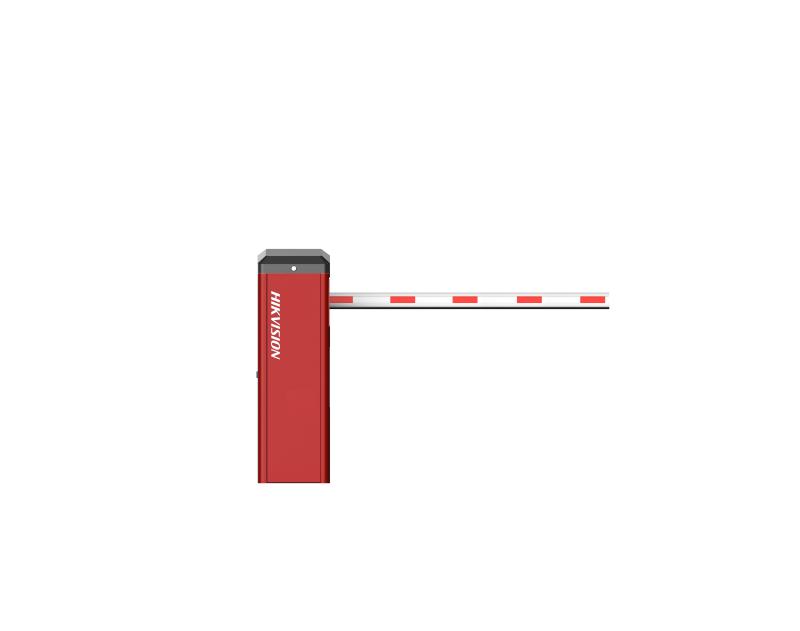

Octagonal Straight Pole

Boom Pole Material

AL6061

Boom Pole Color

White background with red bar

Boom Pole Dimensions

2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch);3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch);4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch);5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch);6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch);3 m boom pole with LED light bar: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch);4 m boom pole with LED light bar: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch);4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch);5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch);6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch);2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch);3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch);4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch)

Boom Pole Weight

2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.);3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.);4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.);5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.);6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.);3 m boom pole with LED light bar: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.);4 m boom pole with LED light bar: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.);4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.);5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.);6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.);2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.);3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.);4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.)

Boom Pole Dimensions (with Package)

2 m octagonal boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch);3 m octagonal boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch);4 m octagonal boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch);5 m octagonal boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch);6 m octagonal boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch);3 m boom pole with LED light bar: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch);4 m boom pole with LED light bar: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch);4 m octagonal telescopic boom pole: 120 × 51 × 3100 mm (4.72 × 2.01 × 122.05 inch);5 m octagonal telescopic boom pole: 120 × 51 × 3500 mm (4.72 × 2.01 × 137.80 inch);6 m octagonal telescopic boom pole: 120 × 51 × 4005 mm (4.72 × 2.01 × 157.68 inch);2 m anti-collision round boom pole: 90 × 90 × 2030 mm (3.54 × 3.54 × 79.92 inch);3 m anti-collision round boom pole: 90 × 90 × 3030 mm (3.54 × 3.54 × 119.29 inch);4 m anti-collision round boom pole: 90 × 90 × 4030 mm (3.54 × 3.54 × 158.66 inch)
