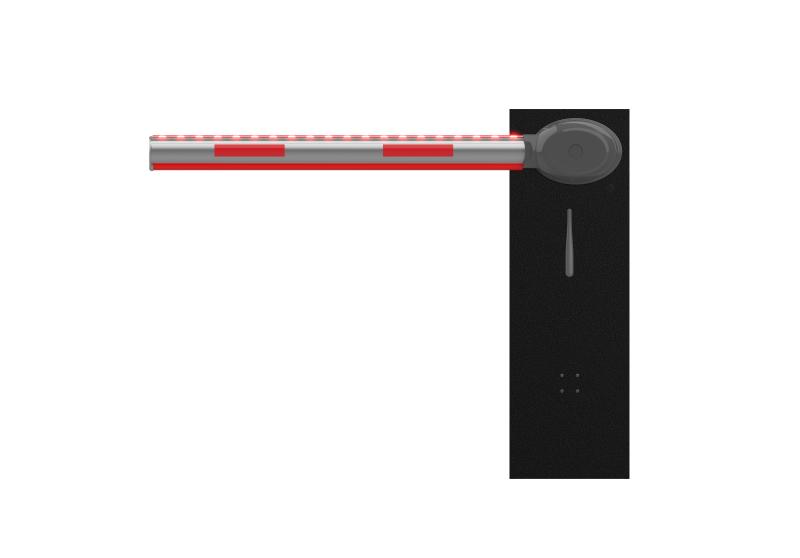

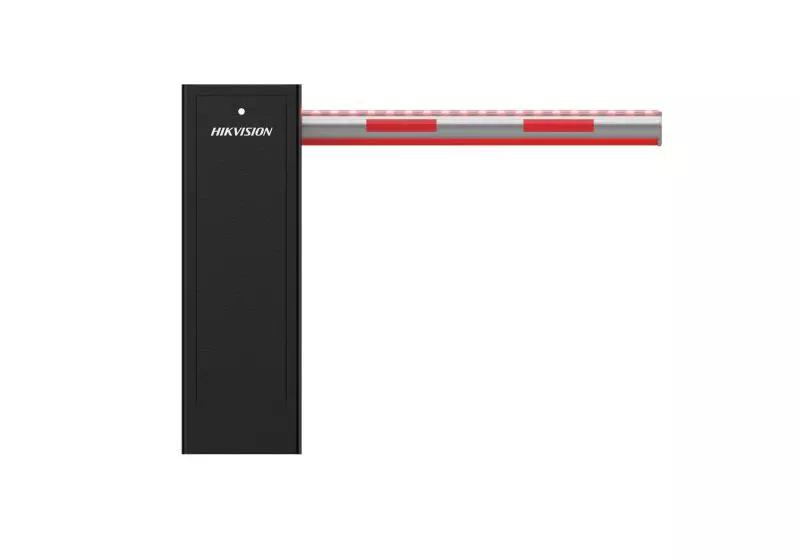

Hikvision DS-TMG300-D/A

Barrier Housing Material

Cold-rolled sheet

Barrier Housing Thickness

1.2 mm

Barrier Housing Door Thickness

1.0 mm

Barrier Housing Color

Black background with sliver pattern

Barrier Housing Door Color

Black background with sliver pattern

Boom Pole Installation Height

880 mm

Body Indicators

None

Rising/Falling Speed

3m light pole：;Rising Speed: 3 S;Falling Speed: 3 S; 4m light pole ：;Rising Speed: 3 S;Falling Speed: 3 S

Boom Pole Direction

Left/Right

Motor Type

DC brushless motor

Matched Boom Pole Type

Boom pole with strip light

Boom Pole Falling Delay

1 to 99 s

Number of Cycles

2,500,000

Consumption

100 W

Temperature and Humidity

Temperature: -30 °C to 80 °C (-22 °F to 176 °F),Humidity: ≤ 90%

Rising Boom Pole for Poweroff

Optional

Barrier Housing Dimensions(L × W × H)

325 × 220 × 1000 mm (12.8 × 8.67 × 39.37 inch)

Body Weight

26 ± 0.2 kg (57.32 ± 0.44 lb.)

Body Dimensions (with Package, Without Boom Pole)(L × W × H)

385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch)

Body Weight (with Package, Without Boom Pole)

29.1 ± 0.2 kg (64.15 ± 0.4 lb.)

Duty Cycle

100%

RS-485

Optional

Rising to Limit

1 group

Falling to Limit

1 group

Open

1 group

Close

1 group

Stop

1 group

IR/Vehicle Detector/Radar

1 group

Traffic Signal Light

1 group

Power Supply

110-240VAC ( default 220V，Switchable )

Protection

IP54

Boom Pole Color

White background with red bar

Boom Pole Weight

3 m boom pole with strip light：3.5 ± 0.2 kg;4 m boom pole with strip light：4.5 ± 0.2 kg

Boom Pole Dimensions (with Package)

3 m boom pole with strip light：3050 × 100 × 55 mm (L×H×W);4 m boom pole with strip light：4050 × 100 × 55 mm (L×H×W)

Boom Pole Weight (with Package)

3 m boom pole with strip light：4.1 ± 0.2 kg;4 m boom pole with strip light：5.3 ± 0.2 kg

Boom Pole Dimensions

X × 50 × 95 mm (W×L)

Boom Pole Material

6063
