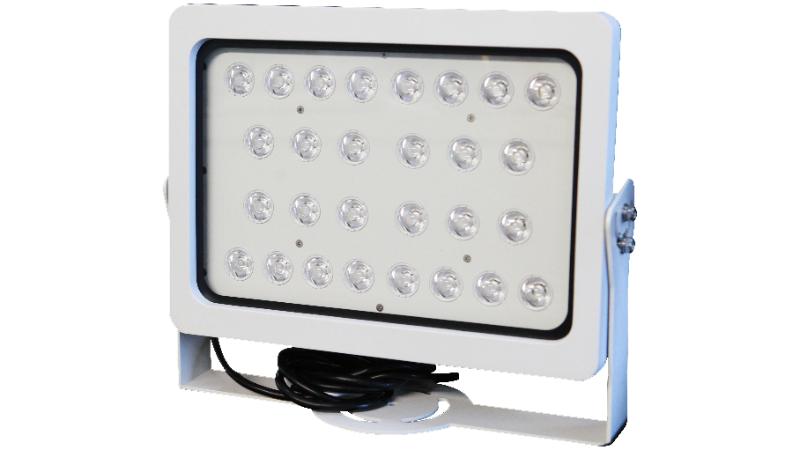

Hikvision DS-TL2002C (220 VAC)
Светодиодный непрерывный дополнительный свет
Светодиодный непрерывный дополнительный свет
По запросу
Запрос цены- Supplement Light
- Light TypeWhite light
- Angle of Light10°
- Coverage1 lane(s)
- LED Lamp Beads28
- Center Illuminance250 lx
- Effective Distance 16 to 50 m
- Trigger Manner TTL level (switch trigger optional)
- Trigger Level 4 to 6 V(High level trigger)
- Trigger Duty Ratio 1% to 39% (Enter the protection state at Duty Radio ≥ 40%)
- Response Time ≤ 20 us
- Trigger Frequency15 to 250 Hz
- Service Life≥ 50000 Hours
- Color Temperature2800 K to 3200 K
- General
- Power
AC 220 V ±20%, 0.25 A, max. 54 W, 3-core terminal block
- MaterialAluminium alloy
- Dimensions322 mm × 271 mm × 118 mm (12.7″ × 10.7″ × 4.6″) (L × W × H)
- Package Dimensions430 mm × 380 mm × 215 mm (16.9″ × 15.0″ × 18.1″) (L × W × H)
- Weight Approx. 5.1 kg (11.24 lb.)
- With Package WeightApprox. 6.28 kg (13.85 lb.)
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing)
- Storage Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing)
- Approval
- EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
- Safety
CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection
IP66: IEC 60529: 1989+A1: 1999+A2: 2013
