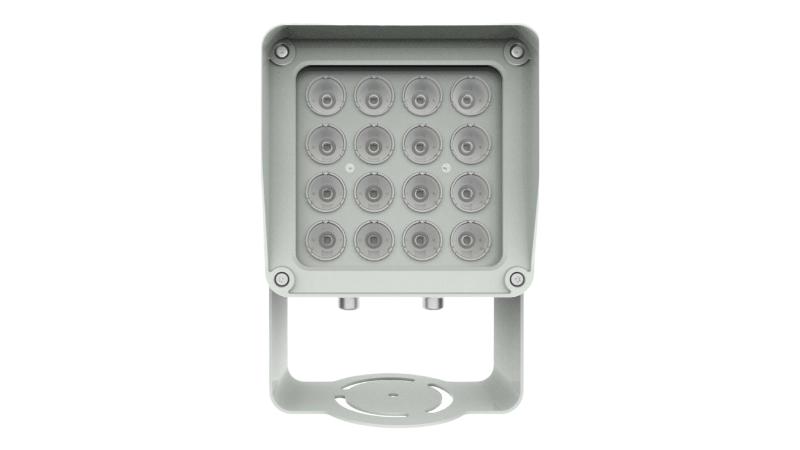

Hikvision DS-TL2002C (220 VAC)
Светодиодный непрерывный дополнительный свет
Светодиодный непрерывный дополнительный свет
По запросу
Запрос цены- Supplement Light
- Light TypeIR light
- Angle of Light30°
- IR Wavelength850nm
- Coverage3 lane(s)
- LED Lamp Beads16
- Center Illuminance150 mW/㎡
- Effective Distance 16 to 25 m
- Trigger Manner TTL level (switch trigger optional)
- Trigger Level 4 to 6 V (High level trigger)
- Trigger Duty Ratio 1% to 39% (Enter the protection state at Duty Radio ≥ 40%)
- Color Temperature2800 K to 3200 K
- Response Time ≤ 20 us
- Trigger Frequency15 to 250 Hz
- Service Life≥ 50000 Hours
- General
- Power
AC 100 V to 240 V, 0.18 A, 39.8 W, 3-core terminal block - MaterialAluminium alloy
- Dimensions128 mm × 216 mm × 159 mm (5.0″ × 8.5″ × 6.3″) (L × W × H)
- Package Dimensions290 mm × 247 mm × 230 mm (11.42″ × 9,72″ × 9.05″) (L × W × H)
- Weight Approx. 2.8 kg (6.17 lb.)
- With Package WeightApprox. 3.58 kg (7.89 lb.)
- Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing)
- Storage Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing)
- Approval
- EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
- SafetyCB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 - EnvironmentCE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP66: IEC 60529: 1989+A1: 1999+A2: 2013
