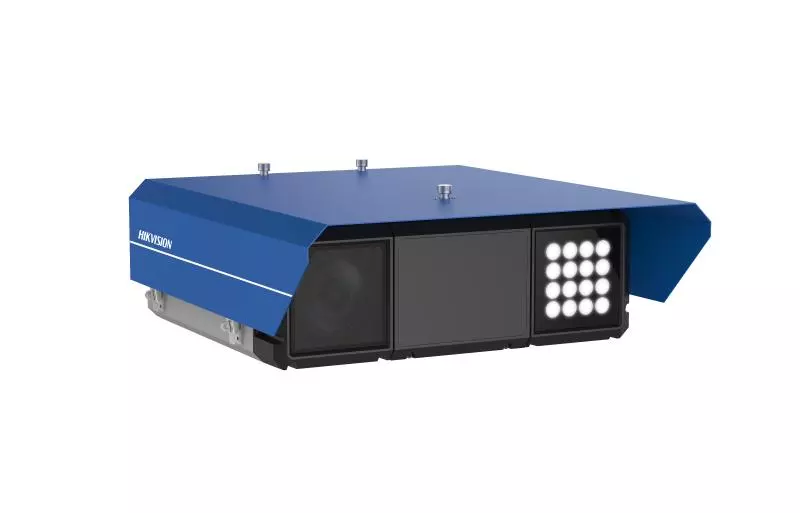

Двойная 9-мегапиксельная универсальная камера ANPR для контроля дорожного движения
Двойная 9-мегапиксельная универсальная камера ANPR для контроля дорожного движения
По запросу
Запрос цены- Camera
- Image Sensor12 MP (1.1» GMOS)
- Max. Resolution4112 × 3072
- Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON), 0 Lux with light
- Shutter Time10 us — 20000 us
- Day & Night24/7 color imaging
- Lens
- Lens TypeVarifocal lens, motorized lens, 11 to 40 mm
- Focal Length & FOV11 to 40 mm, horizontal FOV 61.8° to 23.5°, vertical FOV 32.4° to 12.2°, diagonal FOV 70.0° to 26.8°
- Focus Auto
- ApertureF1.6
- Illuminator
- Built-in Supplement Light TypeWhite light
- Light Bead16
- Built-in Supplement Light RangeUp to 40 m
- External Supplement LightStrobe and flash light
- Radar
- Working Frequency24.05 to 24.25 GHz
- Modulation WaveformFMCW
- Antenna Beam Width35° × 16°
- Detection Distance100 m
- Speed Measuring Range 10 to 320 km/h
- Max. Detectable TargetsUp to 32
- Speed Measuring Accuracy ±2 km/h
- Coverage LanesUp to 3 lane(s)
- Capture Rate≥ 95%
- Trigger ModeApproaching direction,Leaving direction,Bidrection
- Video
- Main Stream
50Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
60Hz: 30 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain profile
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,IGMP,UDP,IPv4/IPv6,ISUP,ARP,DHCP,802.1X,SMTP
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- User/Host
Up to 16 users
3 user levels: administrator, operator and user
- SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,Control timeout settings
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
- Web Browser
Chrome V61+, IE9 to IE11, Firefox V40+, Edge
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
- Day/Night SwitchAuto,Schedule,Manual
- SNR60 dB
- Image EnhancementBLC, 3D DNR
- Supplement Detection (Satellite Positioning)
- Satellite PositioningOptional
- Interface
- Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
- On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
- Alarm 6 output interfaces
- RS-4851 RS-485 interface
- Event
- Basic EventHDD Error, network disconnected, IP address conflicted, Traffic light detector exception
- Road Traffic and Vehicle Detection
- CoverageUp to 3 lane(s)
- Smart Function
License plate recognition
Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
- Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
- No License Plate DetectionSupported
- Motorcycle LPRSupported
- Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- License Plate Color RecognitionCustomized to support
- U-Turn Supported (only E-Police mode)
- Red Light Running Supported (only E-Police mode)
- Failing to Yield for Pedestrians Supported (only E-Police mode)
- Stop Vehicle on Intersection Supported (only E-Police mode)
- Not Following Directional Sign Supported (only E-Police mode)
- Yellow Box Junction ViolationSupported (only E-Police mode)
- Driving on Lane Line DetectionSupported
- Lane Change Detection
Supported
- Seatbelt DetectionSupported (with flash supplement light)
- Phone Call DetectionSupported (with flash supplement light)
- Vehicle Window FilmSupported (with flash supplement light)
- Wrong-Way Driving DetectionSupported
- Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
- Prohibition Mark ViolationSupported
- SpeedingSupported (with Radar)
- Low-SpeedSupported (with Radar)
- Without HelmetSupported
- Manned Non-Motor VehicleSupported
- Capture Speed Range10 to 320 km/h
- General
- Operating SystemLinux
- PowerDC 36 V ±20%, 2 A, max. 75 W, two-core terminal block
- MaterialAluminum alloy
- Dimension457 mm × 396 mm × 139.15 mm (17.99″ × 15.59″ × 5.48″) (L × W × H)
- Package Dimension535 mm × 500 mm × 360 mm (21.06″ × 19.68″ × 14.17″) (L × W × H)
- Weight Approx. 8.13 kg (17.9 lb.)
- With Package WeightApprox. 13.72 kg (30.2 lb.)
- Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- Storage Condition
-30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing)
- General FunctionOne-key reset, Three streams, Heartbeat, Password protection, Pixel counter
- HeaterOptional
- Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- Approval
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- RFCE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 300440 V2.1.1, EN 302288-2 V1.6.1
- Safety
CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018,
CE-LVD: EN 62368-1: 2020+A11: 2020
- Protection
IK10: IEC 62262:2002, IP66: IEC 60529-2013
