Новинка

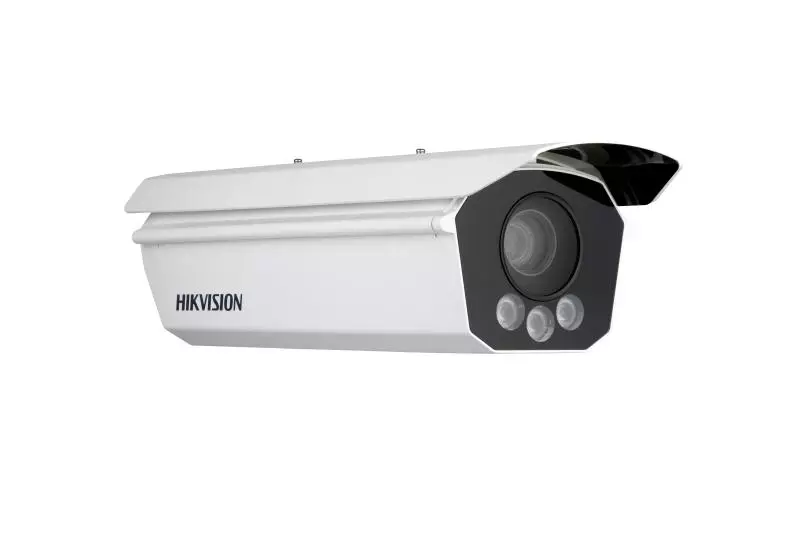

Двойная 9-мегапиксельная универсальная камера ANPR для контроля дорожного движения
Двойная 9-мегапиксельная универсальная камера ANPR для контроля дорожного движения
По запросу
Запрос цены- Camera
- Image Sensor9 MP (1» GMOS)
- Max. Resolution4096 × 2160
- Min. Illumination
Color: 0.001 Lux @ (F1.4, AGC ON),
0 Lux with white light
- Shutter Time
7 us-20000 us
- Day & Night24/7 color imaging
- Lens
- Lens Type
Fixed focal lens, 25 mm,
Varifocal lens, motorized lens, 11 to 40 mm
- Focal Length & FOV
25 mm, horizontal FOV 31.6°, vertical FOV 17.0°, diagonal FOV 35.4°,
11 to 40 mm, horizontal FOV 61.8° to 23.5°, vertical FOV 32.4° to 12.2°, diagonal FOV 70.0° to 26.8°
- Focus Manual, Auto
- ApertureF1.4-16;F1.6
- Illuminator
- Built-in Supplement Light TypeWhite light
- Built-in Supplement Light RangeUp to 30 m
- Light Bead3
- External Supplement LightStrobe and flash light
- Video
- Main Stream
50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Third Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain Profile
- Network
- ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP,SMTP
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- User/HostUp to 16 users,3 user levels: administrator, operator, and user
- SecurityPassword protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,Hik-Central Pro,HikCentral Master Lite
- Web Browser
Chrome V61+, IE9 to IE11, Firefox V40+, Edge
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
- Day/Night SwitchAuto,Schedule,Manual
- SNR60 dB
- Image EnhancementBLC,3D DNR
- Interface
- Ethernet Interface2 RJ45 10 M/100 M/1000M self-adaptive Ethernet port(s)
- On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
- Alarm 2 input interfaces (T1, SYNC), 7 output interfaces
- RS-4853 RS-485 interfaces (half duplex, HIKVISION)
- RS-2321 RS-232 interface
- USB1 USB 2.0 interface
- Event
- Basic Event
HDD error,Network disconnected,IP address conflict,
traffic light detector exception
- Road Traffic and Vehicle Detection
- CoverageUp to 3 lane(s)
- Smart FunctionLicense plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection
- LPR Countries/Regions
Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,
Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,
Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,
America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,
Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,
Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
- Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
- Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
- Accuracy (Under recommended installation and lighting conditions)
Capture rate > 99%,
Vehicle moving direction recognition accuracy > 98.5%,
LPR accuracy > 98%,
Mistaken capture rate < 2%
- No License Plate DetectionSupported
- Motorcycle LPRSupported
- Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
- Vehicle Color
Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
Recognizable at daytime only.
- License Plate Color RecognitionCustomized to support
- U-Turn Supported (only E-Police mode)
- Red Light Running Supported (only E-Police mode)
- Failing to Yield for Pedestrians Supported (only E-Police mode)
- Stop Vehicle on Intersection Supported (only E-Police mode)
- Not Following Directional Sign Supported (only E-Police mode)
- Driving on Lane Line Detection
Supported
- Lane Change Detection
Supported
- Seatbelt DetectionSupported (with flash supplement light)
- Phone Call DetectionSupported (with flash supplement light)
- Vehicle Window FilmSupported (with flash supplement light)
- Wrong-Way Driving DetectionSupported
- Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
- Prohibition Mark ViolationSupported
- SpeedingSupported (with Radar)
- Low-SpeedSupported (with Radar)
- Without HelmetSupported
- Manned Non-Motor VehicleSupported
- Yellow Box Junction ViolationSupported (only E-Police mode)
- Capture Speed Range10 to 320 km/h
- General
- Operating SystemLinux
- PowerAC 100 V to 240 V, 1.5 A, max. 32 W, 3-core terminal block
- MaterialAluminum alloy
- Dimension501.0 mm × 175.6 mm × 144.6 mm (19.72″ × 6.92″ × 5.69″) (L × W × H)
- Package Dimension667 mm × 357 mm × 224 mm (26.26″ × 14.06″ × 8.82″) (L × W × H)
- Weight Approx. 5.13 kg (11.31 lb.)
- With Package WeightApprox. 7.4 kg (16.31 lb.)
- Operating Condition
-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
- Storage Condition
-30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing)
- General FunctionPassword protection,Three streams,Heartbeat,One-key reset,Pixel counter
- Heater
Optional
- Language8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- Approval
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- Safety
CB: IEC 62368-1: 2014,CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018,
CE-LVD: EN 62368-1: 2020+A11: 2020
- EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
