Hikvision iDS-TCS807-CR

Артикул: HC-iDS-TCS807-CR

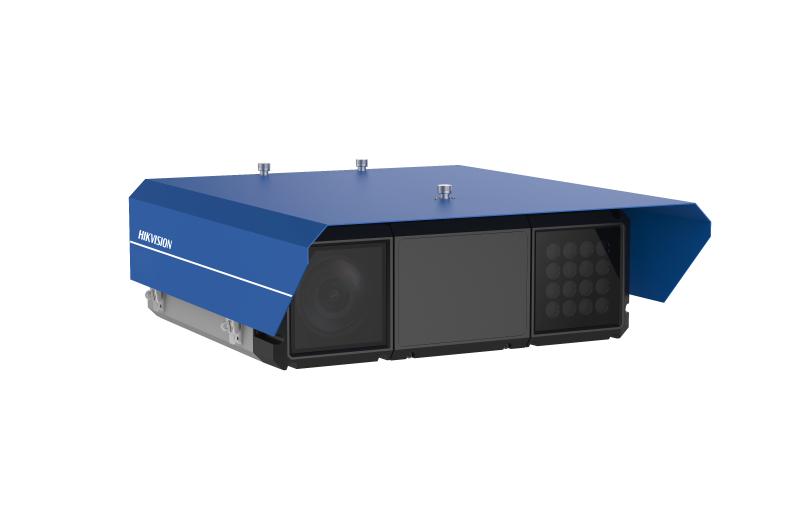

Hikvision iDS-TCS807-CR — 8 MP All-Rounder Incident Detection камера

Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.001 Lux@(F1.4, AGC ON) , 0.0005 Lux with IR
Shutter Time: 50 us-20000 us
Focal Length & FOV: 1550(default): CS-Mount, Horizontal: 42.7° to 13.7°, Vertical: 23.4° to 7.6°, Diagonal: 49.7 to 15.8° 5721: CS-Mount, Horizontal: 106.5° to 33.1°, Vertical: 60.2° to 18.7°, Diagonal: 121.4° to 37.8°
Main Stream: 50 Hz: 25 fps (3840 × 2160, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 1920 × 1080, 1280 × 720)
Sub Stream: 1920 × 1080, 704 × 576
Video Compression: H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps

После подтверждения наличия
По Азербайджану 1-2 дня

до 36 месяцев
от производителя

Официальный дистрибьютор Hikvision

Помощь в подборе и настройке оборудование

Уточняйте наличие

По запросу

Цена для партнеров

Запросить скидку

Помощь специалиста

Затрудняетесь в выборе оборудования?

Lens
Focal Length & FOV1550(default): CS-Mount, Horizontal: 42.7° to 13.7°, Vertical: 23.4° to 7.6°, Diagonal: 49.7 to 15.8°
5721: CS-Mount, Horizontal: 106.5° to 33.1°, Vertical: 60.2° to 18.7°, Diagonal: 121.4° to 37.8°

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 1920 × 1080, 1280 × 720)
Sub Stream1920 × 1080, 704 × 576
Video Compression H.264 and H.265 encoding
Main stream: H.265/H.264/MJPEG
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeBaseline profile/Main profile/High profile

Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Day/Night SwitchAuto/Scheduled/Triggered by alarm in
Image Enhancement3D DNR

Event
Basic EventHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic and Vehicle Detection
Coverage2 to 3 lanes
Smart FunctionVehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic status
Driving on lane line, lane change, wrong-way driving, stopped vehicle, Emergency lane occupation, roadblock, construction, fallen object, pedestrians, congestion, fire/smoke in tunnel detection, speed drop, speeding, low-speed driving

General
Power100 to 240 VAC (with power adapter, by default)
36 VDC ± 20% (without power adapter)
80 W MAX
Dimension437 × 396 ×139.15 mm
Weight 7 ± 0.5 kg
Operating ConditionTemperature: -30 °C ~70 °C
Humidity: <95%
General FunctionHeartbeat, password protection, NTP time adjustment
