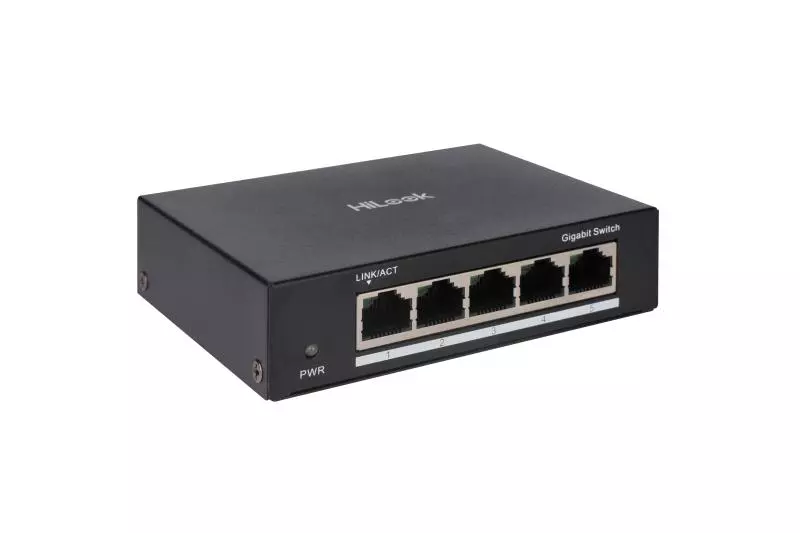

HiLook NS-0505

Shell

Metal material, fan-free design

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.35 kg (0.77 lb)

Dimensions (W × H × D)

105.00 mm × 27.60 mm × 83.10 mm (4.13» × 1.09» × 3.27»)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

5VDC, 0.6A

Max. Power Consumption

3 W

Power Consumption in Idle

0.25 W

Installation Mode

Desk-Mounted,Wall-Mounted

Surge Protection

6 KV

Ports

5 × Gigabit RJ45 port

MAC Address Table

2 K

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

Internal Cache

3 Mbits

PoE Standard

/

PoE Power Pin

/

PoE Port

/

Max. Port Power

/

PoE Power Budget

/

Long Range

/

Port Isolation

/

PoE Watchdog

/

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
