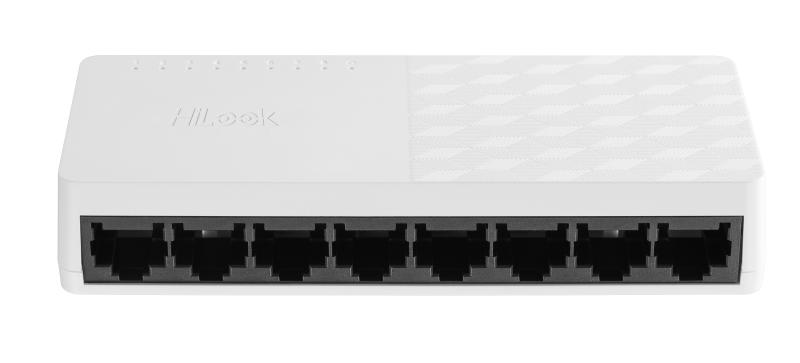

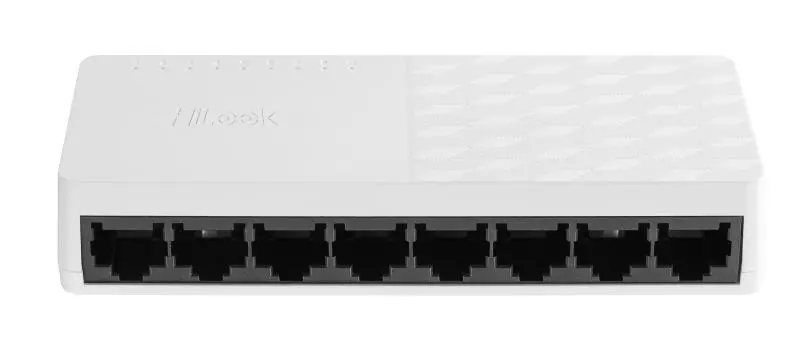

HiLook NS-0108D

Shell

ABS

Net Weight

0.059 kg (0.13 lb)

Gross Weight

83.00 mm × 22.00 mm × 52.00 mm (3.27» × 0.87» × 2.05»)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature

–40 °C to 85 °C (–40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

5 VDC, 0.6 A

Installation Mode

Desk-Mounted

Ports

8 × 10/100 Mbps RJ45 port

MAC Address Table

2 K

Switching Capacity

1.6 Gbps

Packet Forwarding Rate

1.19 Mpps

Internal Cache

0.768 Mbits

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
