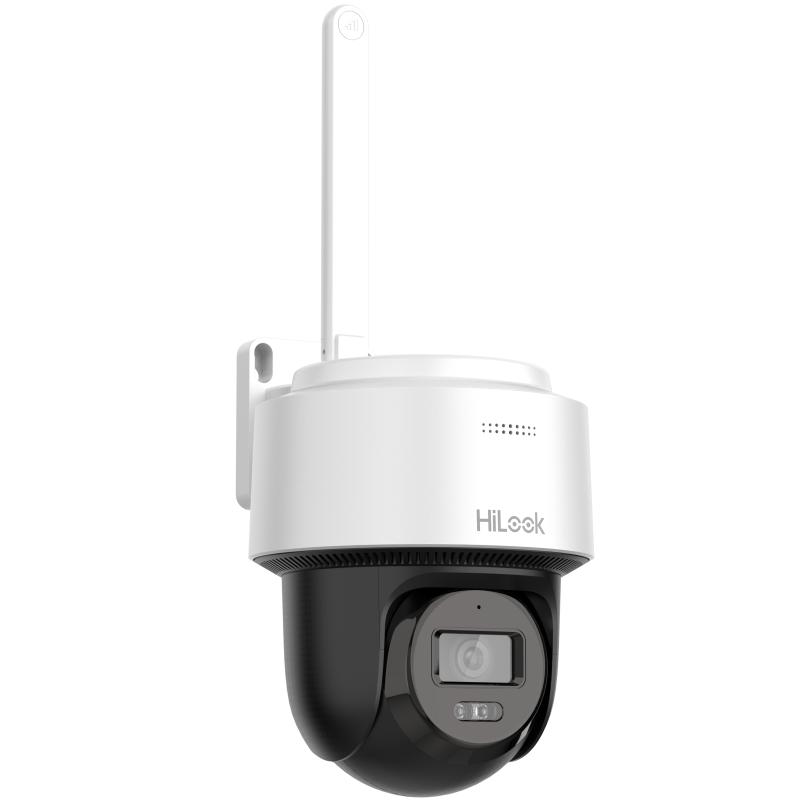

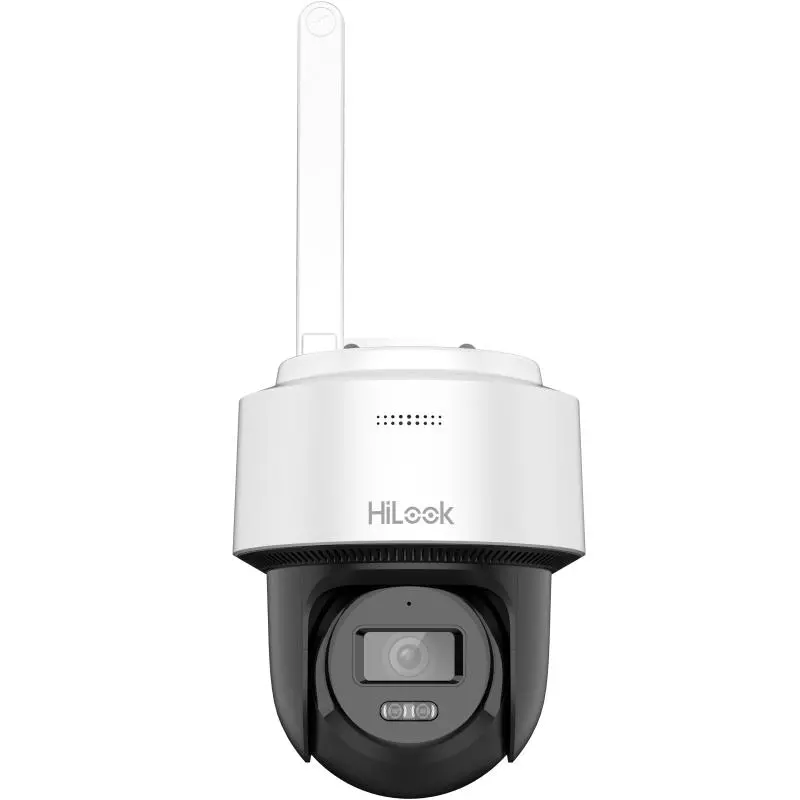

HiLook 2MP H.265 One Bullet + один комплект PTDome WiFi NVS
HiLook 2MP H.265 One Bullet + один комплект PTDome WiFi NVS
По запросу
Запрос цены- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Day & Night24/7 color imaging
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- PTZ
- Movement Range (Pan)0° to 345°
- Movement Range (Tilt)0° to 80°
- Pan SpeedUp to 25°/s
- Tilt SpeedUp to 20°/s
- DORI
- DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 30 m
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Sampling Rate16 kHz
- Environment Noise FilteringYes
- Audio Compression G.711/AAC-LC
- Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)/16~64 Kbps(AAC-LC)
- Network
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- ProtocolsTCP/IP, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, RTP, RTCP, RTSP, IPv4, IPv6, UDP, QoS, Bonjour
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web BrowserLocal service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- StandardLTE-TDD,LTE-FDD
- Frequency
EU:
LTE-FDD: B1/3/5/7/8/20/28
IN:
LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
LA:
LTE-FDD: B2/3/4/5/7/8/28/66
NA:
LTE-FDD: B2/4/5/12/13/17/66/71
- Uplink and Downlink Data Rate
EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
NA: uplink: 50 Mbps, downlink: 150 Mbps
- SIM Card TypeNano SIM
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone1 built-in microphone
- Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset KeyYes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite
- General
- Power
12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
*A switching adapter is included in the package.
- MaterialMetal & Plastic
- Dimension131.9 mm × 164 mm × 312.6 mm (5.2″ × 6.5″ × 12.3″)
- Package Dimension224 mm × 178 mm × 230 mm (8.8″ × 7.0″ × 9.1″)
- Approx. 600 g (1.3 lb.)
- With Package WeightApprox. 900 g (2.0 lb.)
- Storage Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
