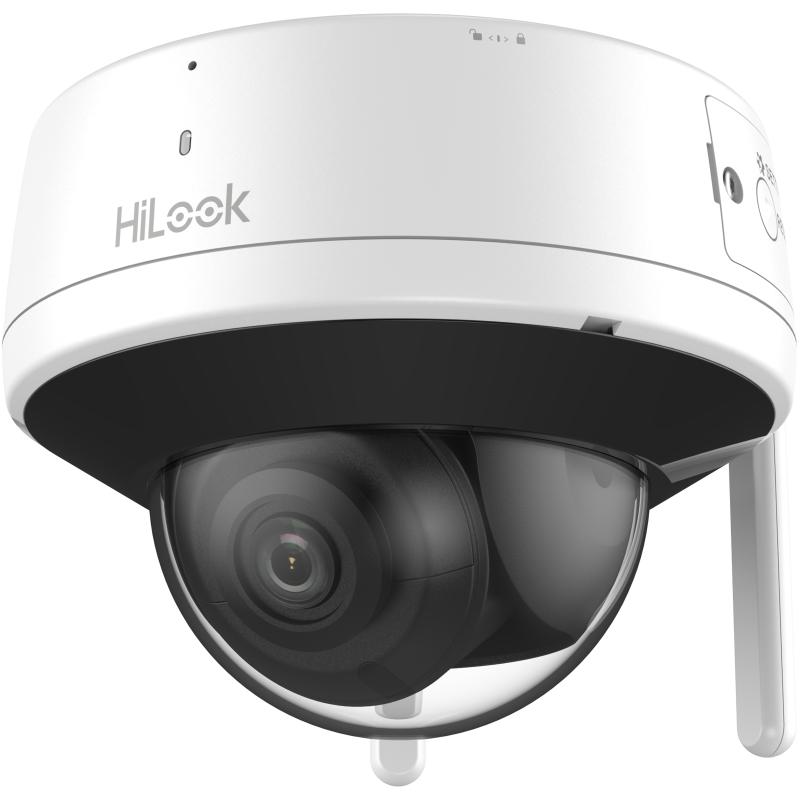

HiLook 2MP H.265 One Bullet + один комплект PTDome WiFi NVS
HiLook 2MP H.265 One Bullet + один комплект PTDome WiFi NVS
По запросу
Запрос цены- Camera
- Image Sensor1/2.9″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°
4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
- ApertureF1.6
- Iris TypeFixed
- Lens MountM12
- Depth of Field
2.8 mm: 1.5 m to ∞
4 mm: 2 m to ∞
- DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)
60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264
- Video Bit RateUp to 2 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio Compression G.711ulaw/G.711alaw/AAC-LC
- Audio Bit Rate64 Kbps (G.711)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 4 channels
- APIONVIF, SDK
- SecurityPassword protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- User/Hostadministrator
- ClientiVMS-4200, HiLookVision, Hik-Partner-Pro
- Wi-Fi
- Frequency Range2.412 GHz to 2.472 GHz
- Channel Bandwidth 20 MHz
- Modulation802.11b: CCK, QPSK, BPSK,802.11g: OFDM,802.11n: OFDM
- Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n
- Transfer Rate11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
- Wireless Range
Up to 120 m
(The performance varies based on actual environment)
- Antenna2 Antennas
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, adjustable by client software
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Built-in MicrophoneYes,1 built-in microphone
- Built-in SpeakerYes, 1 built-in speaker
- On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),exception
- Linkage
Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggered by specified target types (human and vehicle)
- General
- Power12 VDC ± 10%, 1 A, max. 10 W,Ø2 mm coaxial power plug,reverse polarity protection
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat, mirror
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- MaterialBase: metal, front cover: polycarbonate, back cover: polycarbonate
- Dimension120 mm × 120 mm × 95 mm (4.7″ × 4.7″ × 3.7″)
- Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
- Approx. 593 g (1.3 lb.)
- With Package WeightApprox. 886 g (1.95 lb.)
- Approval
- EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU
- ProtectionIP66: IEC 60529-2013
