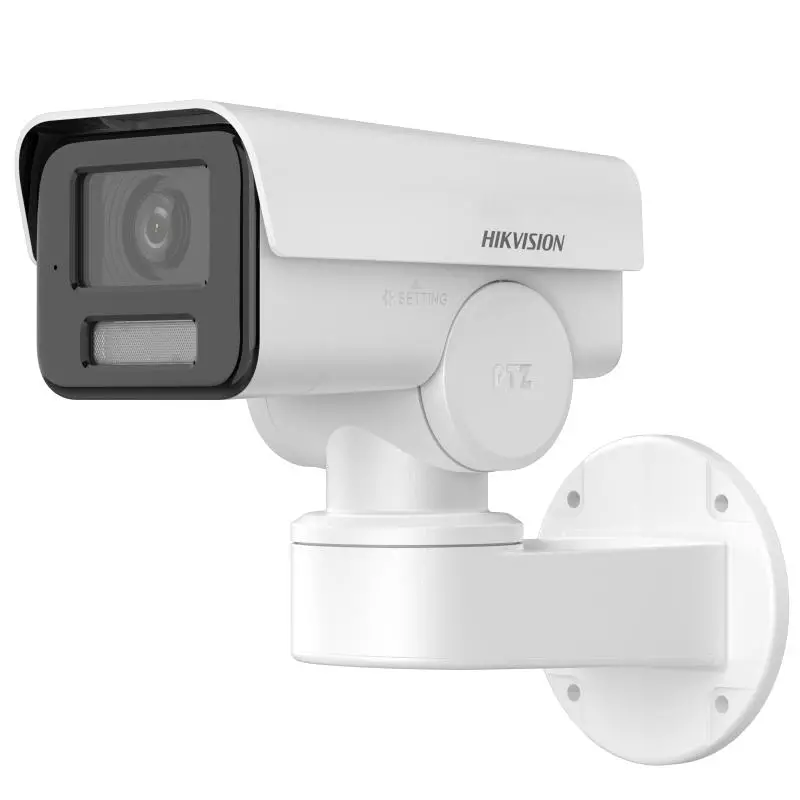

Hikvision DS-2CD1P43G2-I(UF)

Image Sensor

1/3″ Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: -100° to 100°,tilt: -20° to 45°

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°;4 mm, horizontal FOV 79°, vertical FOV 43°, diagonal FOV 92°;

Lens Mount

M12

Iris Type

Fixed

Aperture

Max. F2.0

DORI

2.8 mm: D: 59 m, O: 23 m, R: 11 m, I: 5 m;4 mm: D: 79 m, O: 31 m, R: 15 m, I: 7 m

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz:;20 fps (2560 × 1440);25 fps (1920 × 1080, 1280 × 720);60 Hz:;20 fps (2560 × 1440);24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

-U: Mono sound

Environment Noise Filtering

-U: Yes

Audio Sampling Rate

-U: 8 kHz/16 kHz

Audio Compression

-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users;3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11;Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse

Privacy Mask

4 regions of privacy mask

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone

-U: Yes

Reset Key

;-F: Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

Power

12 VDC ± 25%, 1.00 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: 802.3af, Class 3, 36 V to 57 V, 0.33 A to 0.21 A, max. 12.5 W

Material

Front cover: metal, body: plastic, bracket: plastic

Dimension

197.1 mm × 105 mm × 225.4 mm (7.8″ × 4.1″ × 8.9″)

Package Dimension

300 mm × 266 mm × 172 mm (11.8″ × 10.4″ × 6.8″)

Weight

Approx. 900 g (2.0 lb.)

With Package Weight

Approx. 1520 g (3.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Anti-banding, heartbeat, password protection, password reset via email

EMC

;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013
