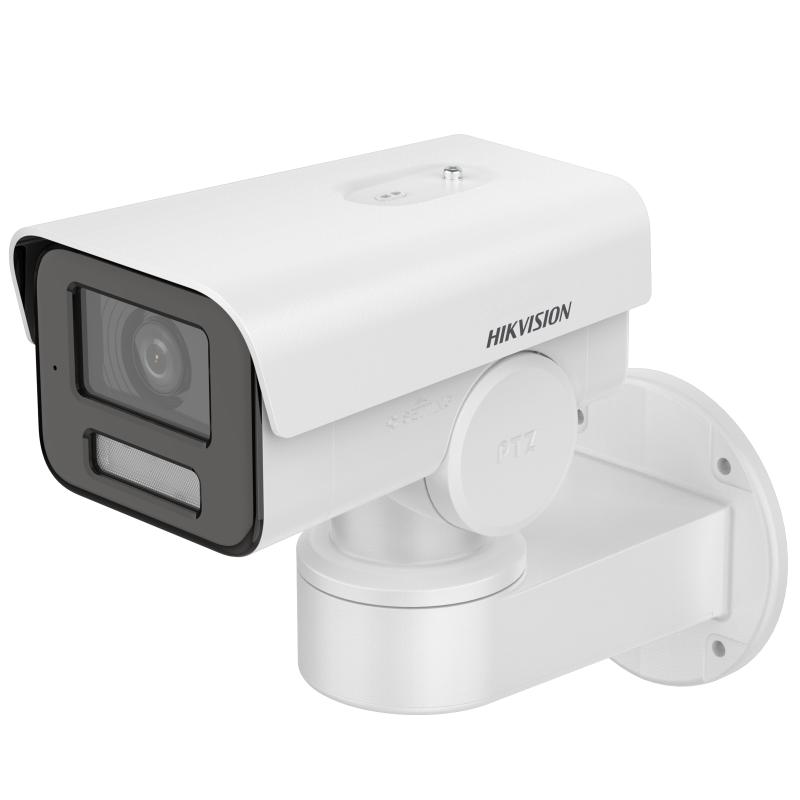

Hikvision DS-2CD1A23G0-IZU

Image Sensor

1/2.7″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.007 Lux @ (F1.6, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: -100° to 100°,tilt: -20° to 45°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 106.9° to 32.3°, vertical FOV 56.4° to 18.2°, diagonal FOV 127.9° to 37°

Lens Mount

Ø14

Iris Type

Fixed

Aperture

Max. F1.6

DORI

Varifocal lens:;Wide: D: 44 m, O: 17 m, R: 8 m, I: 4 m;Tele: D: 136 m, O: 54 m, R: 27 m, I: 13 m

Supplement Light Type

IR

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP

User/Host

Up to 32 users;3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11;Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)

120 dB WDR

SNR

≥ 52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Mirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Privacy Mask

4 regions of privacy mask

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone

Yes

Reset Key

Yes

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP/memory card, notify surveillance center,send email，trigger recording, trigger capture

Power

12 VDC ± 25%, 0.91 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W

Material

Front cover: metal, body: plastic, bracket: plastic

Dimension

197.1 mm × 105 mm × 225.4 mm (7.8″ × 4.1″ × 8.9″)

Package Dimension

300 mm × 266 mm × 172 mm (11.8″ × 10.4″ × 6.8″)

Weight

Approx. 900 g (2 lb.)

With Package Weight

Approx. 1520 g (3.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Anti-flicker, heartbeat, password protection, password reset via e-mail

EMC

;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015,FCC: 47 CFR Part 15, Subpart B

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP66: IEC 60529-2013
