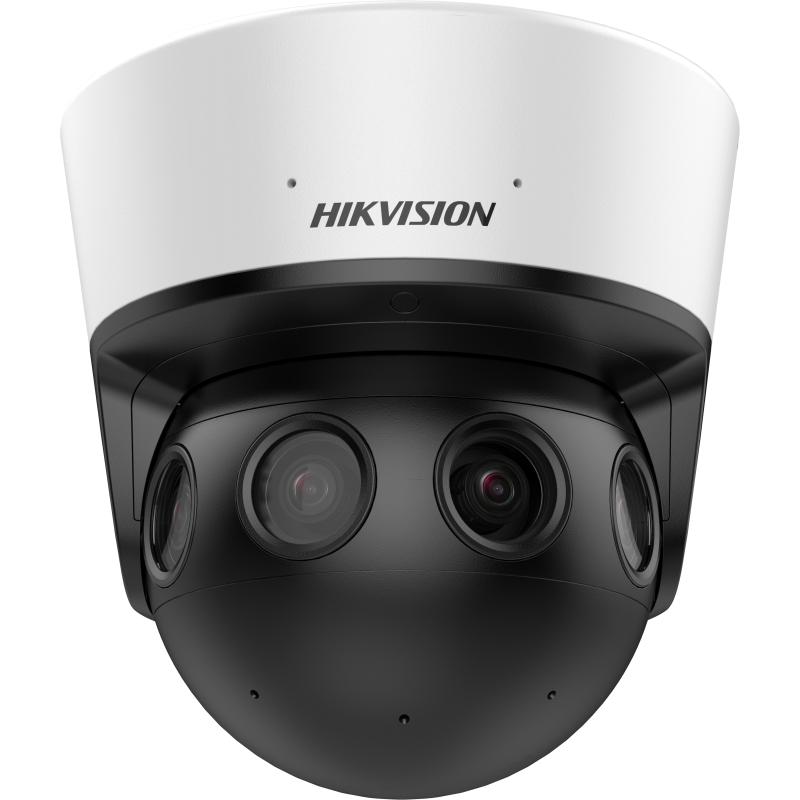

Hikvision DS-2CD6944G1-IHS(U)Y

Артикул: 35bd5bf5470b

16-мегапиксельная сетевая камера PanoVu с углом обзора 180°

Изображение, полученное методом склейки на 180°: представленное изображение включает в себя полный панорамный обзор, охватываемый камерой.
Высокое разрешение 16 МП: обеспечивает четкость изображения и позволяет отображать больше деталей на видеостене.
Дистанционное моторизованное панорамирование и наклон для удобной регулировки угла.
Встроенный нагреватель, запуск при сверхнизких температурах до -40 °C (-40 °F).
Водо- и пылезащита (IP67) и защита от вандализма (IK10).
Технология DarkFighter обеспечивает получение высококачественных цветных изображений даже в условиях недостаточного освещения.

Тех. паспорт

Быстрая доставка

По Баку — сегодня
По Азербайджану 1-2 дня

Официальная гарантия

до 36 месяцев
от производителя

100% оригинал

Официальный дистрибьютор Hikvision

Тех. поддержка

Помощь в подборе и настройке оборудование

в наличии

доставка за 2 часа

По запросу

Купить в рассрочку

Цена для партнеров

Запросить скидку

Помощь специалиста

Сравнить

Затрудняетесь в выборе оборудования?

Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Max. Resolution4800 × 2688
Min. IlluminationColor: 0.002 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON)
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 340°,tilt: 0° to 90°

Lens
Lens TypeFixed focal lens, 2.8 mm, four lenses
Focal Length & FOV
2.8 mm,

Single lens image: horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°,

Panorama Image: horizontal FOV 185°, vertical FOV 110°
Lens MountM16
ApertureF1.0

DORI
DORI2.8 mm: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m

Illuminator
Supplement Light TypeIR,four IR LEDs
Supplement Light RangeUp to 20 m
IR Wavelength850 nm

Video
Main Stream
Panorama mode:

50 Hz: 50 fps (4800 × 2688)

60 Hz: 60 fps (4800 × 2688)

Original mode:

50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
Panorama mode:

50 Hz: 25 fps (1920 × 1080)

60 Hz: 30 fps (1920 × 1080)

Original mode:

50 Hz: 25 fps (1280× 720)

60 Hz: 30 fps (1280× 720)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 64 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for each stream

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/PCM/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 4 channels
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ClientiVMS-4200
Web Browser
Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 13+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask8 programmable polygon privacy masks
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 GB
Built-in Microphone 2 built-in microphones
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 12 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Power Output12 VDC, max. 150 mA

Event
Basic Event Motion detection,video tampering alarm,alarm input and output,video quality diagnosis,vibration detection,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart),audio exception detection
Smart Event

Without (D) version: Yes (only panorama mode supports) With (D) version: No Line crossing, intrusion, region entrance, region exiting，loitering detection,people gathering detection,fast moving detection,parking detection, unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
People DensityWithout (D) version: Yes (only panorama mode supports) With (D) version: No

General
Power
12 VDC ± 20%, 2.2 A, max. 26.4 W,

24 VAC ± 20%, 1.5 A, max. 24 W,three-core terminal block,

PoE: IEEE 802.3at, Class 4, max. 25 W
MaterialAluminum alloy & plastic
DimensionØ214.6 mm × 213 mm (Ø8.45″ × 8.39″)
Package Dimension336 mm × 261 mm × 293 mm (13.2″ × 10.3″ × 11.5″)
Approx. 4.2 kg (9.25 lb.)
With Package WeightApprox. 6.2 kg (13.67 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionHeartbeat,mirror,password protection,flash log,password reset via email,pixel counter,one-key reset,anti-banding
HeaterYes

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
