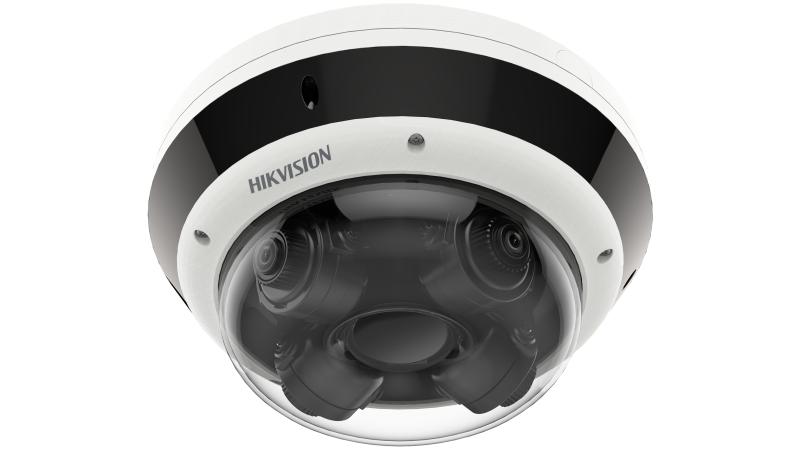

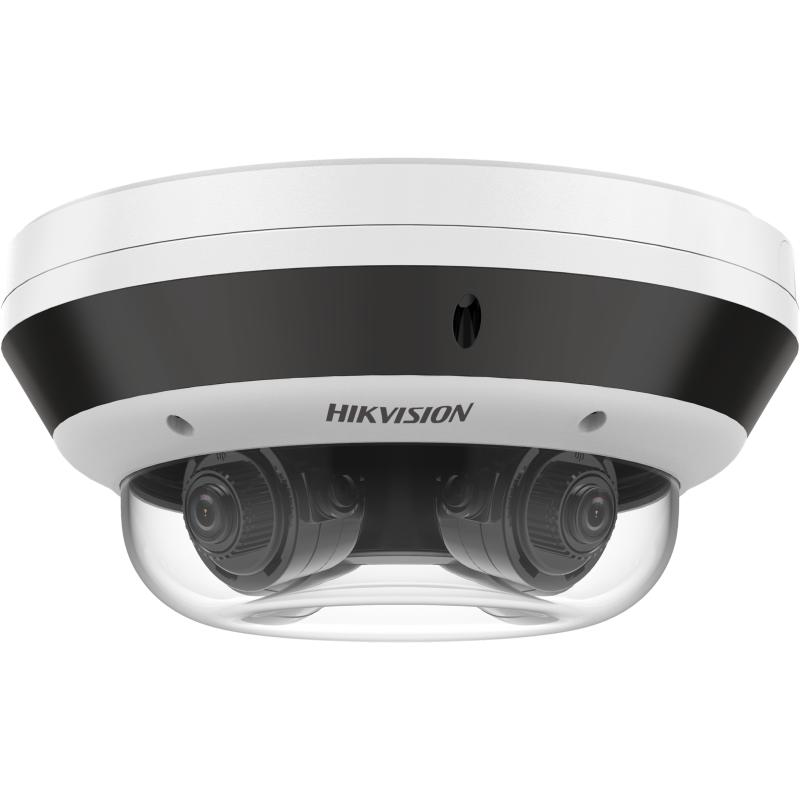

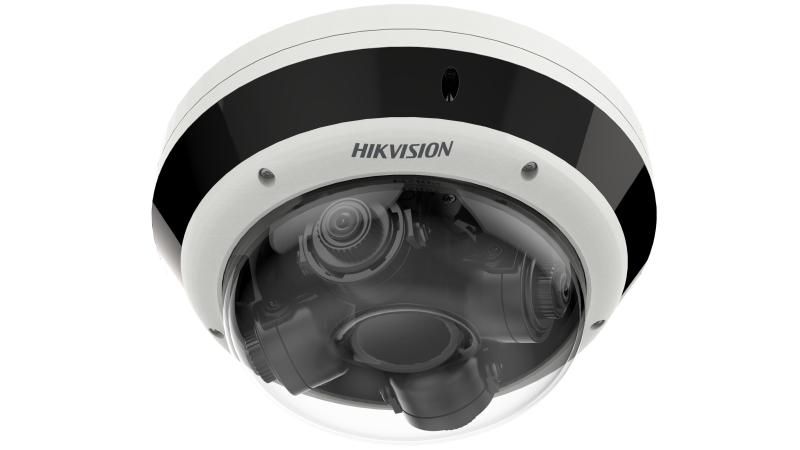

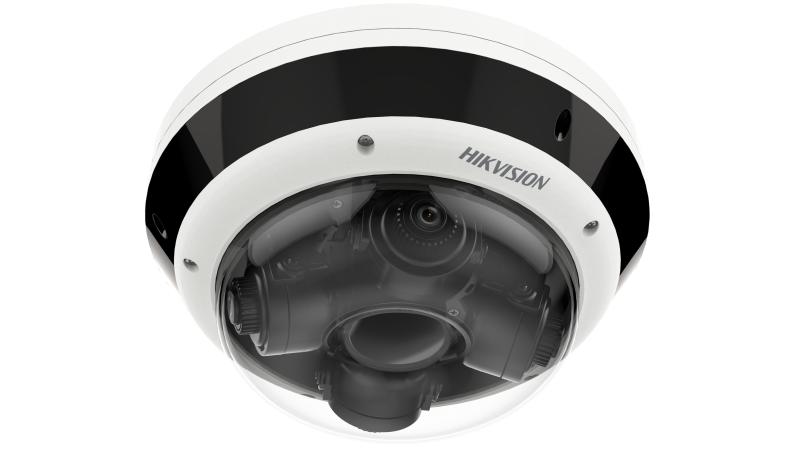

Hikvision DS-2CD6D54G2-IZHS(/NFC)

Image Sensor

1/2.4″ Progressive Scan CMOS

Max. Resolution

2560 × 1920

Min. Illumination

Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 350°,tilt: 0° to 90°,rotate: -90° to 90°

Lens Type

Varifocal lens, motorized lens, 2.8 to 8 mm

Focal Length & FOV

2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3°

Lens Mount

Ø14

Focus

Semi-auto,Manual

Aperture

F1.9

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps(1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Image Stabilization

EIS

Image Enhancement

BLC,HLC,3D DNR,Defog

Privacy Mask

8 programmable polygon privacy masks

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB

Audio

1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

2 inputs, 2 outputs (max. 24 VDC, 1 A)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Fiber Optical

/NFC: 1 FC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 1250 Mbps transmission rate

Basic Event

Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),scene change detection, unattended baggage detection,object removal detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 20%, 1.8 A, max. 21.6 W,;PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W

Dimension

Ø290 mm × 148 mm (Ø11.42″ × 5.8″)

Package Dimension

453 mm × 393 mm × 385 mm (17.8″ × 15.47″ × 15.16″)

Weight

Approx. 4.7 kg (10.36 lb.)

With Package Weight

Approx. 8.0 kg (17.63 lb.)

Storage Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002

Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
