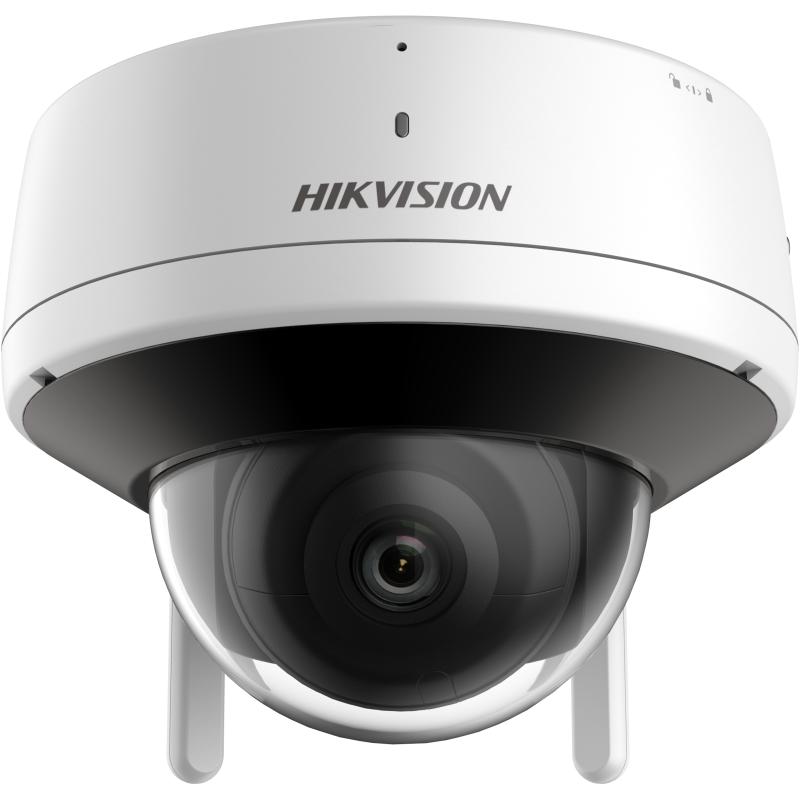

Hikvision DS-2CV1F23G2-LIDW(F)(B)
2-мегапиксельная стационарная турельная сетевая камера Wi-Fi для помещений
2-мегапиксельная стационарная турельная сетевая камера Wi-Fi для помещений
По запросу
Запрос цены- Camera
- Image Sensor1/2.7″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 116.4°, vertical FOV 63.8°, diagonal FOV 140.3°
4 mm, horizontal FOV 91.1°, vertical FOV 47.9°, diagonal FOV 110.8°
- ApertureF2.0
- Iris TypeFixed
- Lens MountM12
- Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.2 m to ∞
- DORI
- DORI
2.8 mm, D: 51 m, O: 20 m, R: 10 m, I: 5 m
4 mm, D: 69 m, O: 27 m, R: 13 m, I: 16 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 20 fps (768 × 432)
60 Hz: 20 fps (768 × 432)
- Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264
- Video Bit Rate32 Kbps to 4 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711(ulaw)/ (AAC-LC)
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200
- Web BrowserChrome 57.0+, Firefox 52.0+, Edge 89+
- Wi-Fi
- Wi-Fi ProtocolIEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
- Frequency Range2.4 GHz to 2.4835 GHz
- Channel Bandwidth 20/40MHz (Only 11n supports 40MHz)
- Modulation
802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16QAM, 64QAM
802.11n: BPSK, QPSK, 16QAM, 64QAM
802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
- Encryption ModeWPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
- Transfer Rate
IEEE802.11b: up to 11 Mbps
IEEE802.11g: up to 54 Mbps
IEEE802.11n: up to 150 Mbps
IEEE802.11ax: up to 114 Mbps
- Wireless Range
Up to 120 m
(The performance varies based on actual environment)
- Antenna2 Antennas
- Image
- Image Parameters SwitchYes
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Built-in MicrophoneYes
- Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
- LinkageNotify surveillance center,audible warning
- General
- Power12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- LanguageEnglish, Ukranian
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- MaterialBase: Metal, front cover: Polycarbonate, back cover: Polycarbonate
- Dimension
Ø125.9 mm × 96.1 mm (Ø5 × 3.8″)»
- Package Dimension170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
- Approx. 590 g (1.3 lb.)
- General FunctionHeartbeat,mirror,password protection,anti-banding
- Approval
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
