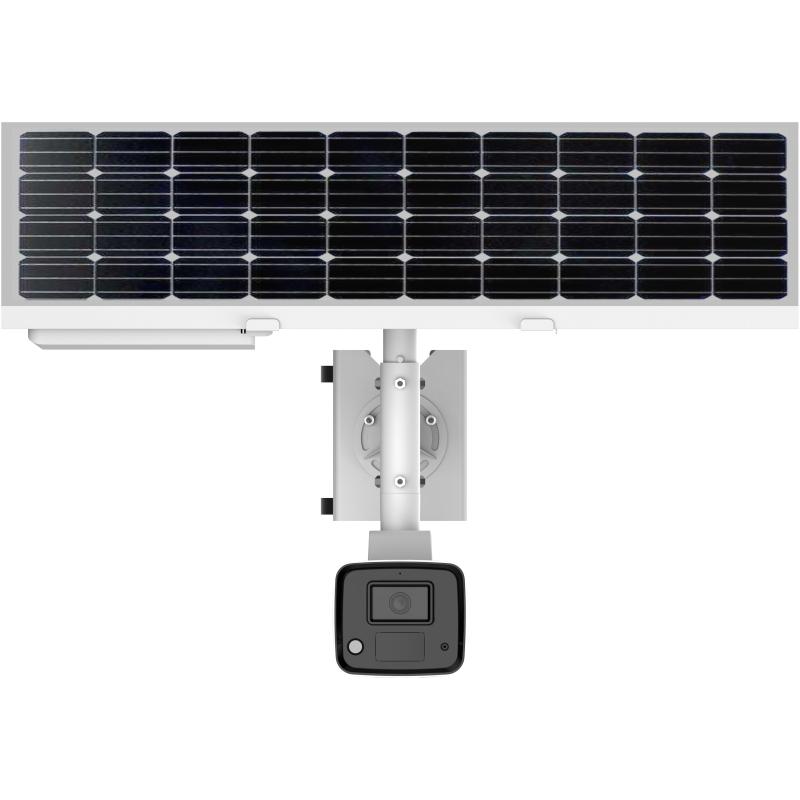

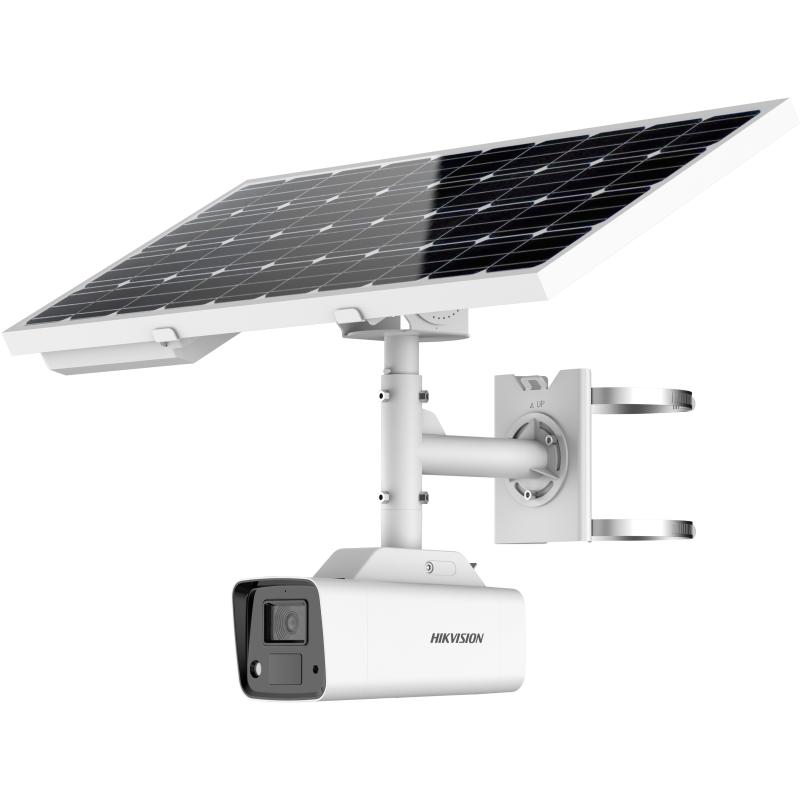

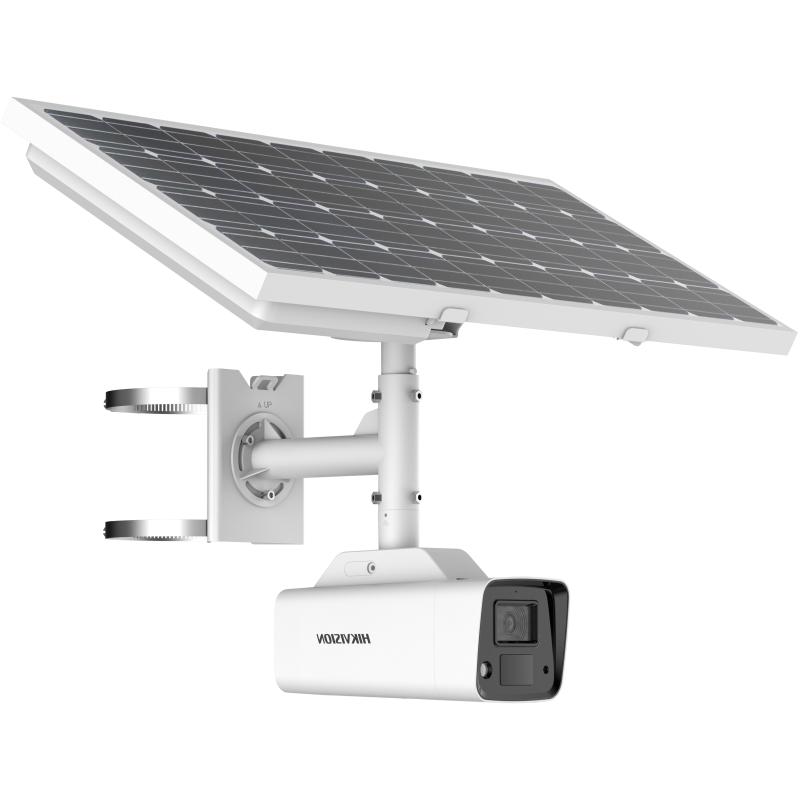

Hikvision DS-2XS2T47G0-LD/4G/C14S40

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Solar Cover：Pan: 0° to 358°, tilt: -40° to 40°;Camera：Pan: 0° to 360°，tilt: -60° to 0°

Lens Type

Fixed focal lens, 4 and 6 mm optional

Aperture

F1.0

Focal Length & FOV

4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°;6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

Lens Mount

M16

DORI

4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m;6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m

Supplement Light Type

White Light

Supplement Light Range

Performance mode: up to 30 m;Proactive mode: up to 10 m

Smart Supplement Light

Yes

Main Stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (640 × 480, 640 × 360);60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/ H.264;Sub-stream: H.265/H.264/MJPEG;H.264+: Performance mode: main stream supports;H.265+: Performance mode: main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Region of Interest (ROI)

1 fixed region for main stream

Scalable Video Coding (SVC)

H.265 and H.264 support

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Network Storage

Auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central;Proactive mode: Hik-Connect

Web Browser

Plug-in required live view: IE 10+;Plug-in free live view: Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+

Frequency

LTE-TDD: Band 38/40/41;;LTE-FDD: Band 1/3/5/7/8/20/28;;WCDMA: Band 1/5/8;;GSM: band 3/5/8

Standard

LTE-TDD, LTE-FDD, WCDMA, GSM

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR Angle

Horizontal: 100°, vertical: 80°

PIR Range

Up to 15 m

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB;Built-in 64 GB eMMC storage (50 GB avaible for recording)

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset Key

Yes

Basic Event

Motion detection, video tampering alarm, exception, PIR

Linkage

Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

Power

Power Consumption and Current:;Typical power scenarios: 1.85 W (4 G working);Standby scenarios: 40 mW;Max. power consumption: 7.2 W;Power Supply:;12 VDC ± 25%, 40 W(deviation: ± 2 W) Solar panels;*For debugging only;Power Interface:;Power supply interface: Φ5.5 mm coaxial power plug;Extened solar panel: four-core aviation connector

Storage Conditions

0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Startup and Operating Conditions

0 °C to 60 °C (32 °F to 140 °F). Humidity 95% or less (non-condensing)

Dimension

614.8 mm × 390.5 mm × 760 mm (24.2″ × 15.4″ × 29.9″)

Package Dimension

837 mm × 267 mm × 445 mm (33″ × 10.5″ × 17.5″)

Weight

Pre-install plate: approx. 1080 g (2.4 lb.);Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)

With Package Weight

approx. 11860 g (26.1 lb.)

Battery Type

Ternary lithium

Capacity

20.8 Ah

Max. Charging Voltage

8.4 V

Operating Temperature

Charge：0 °C to 50 °C (32 °F to 122 °F). Charging Condition: 0 °C to 50 °C (32 °F to 122 °F) (deviation: ± 5 °C);Discharge：-20 °C to 75 °C (-4 °F to 167 °F). Discharging Condition: -20 °C to 75 °C (-4 °F to 167 °F) (deviation: ± 5 °C)

Battery Voltage

6.0 V to 8.4 V

Cycle Lifetime

Performance mode: 2.5 day;Proactive mode: 4.5 day ;Standby mode: 24 days

Battery Life

More than 500 cycles

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)

RF

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); ;EN 301489-17 V3.1.1(BT or 2.4G); ;EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

Safety

CB (IEC 62368-1:2014+A11);;CE-LVD (EN 62368-1:2014/A11:2017)

Environment

CE-RoHS (2011/65/EU); ;WEEE (2012/19/EU); ;Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
