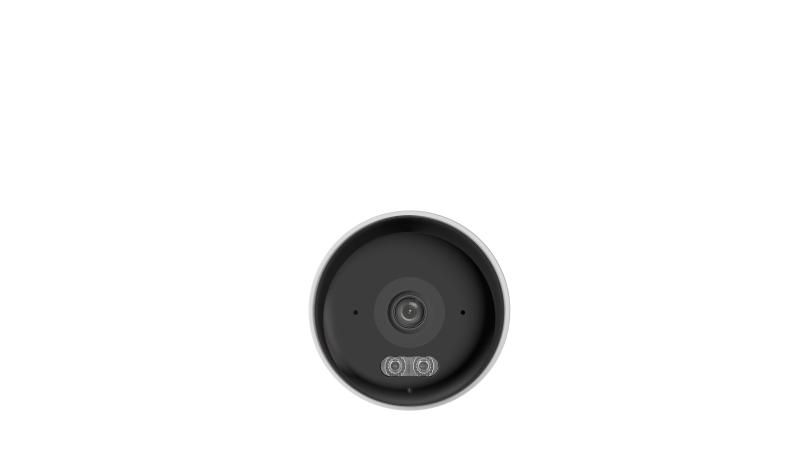

Hikvision DS-2CV1F23G2-LIDW(F)(B)
2-мегапиксельная стационарная турельная сетевая камера Wi-Fi для помещений
2-мегапиксельная стационарная турельная сетевая камера Wi-Fi для помещений
По запросу
Запрос цены- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9°
4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- ApertureF1.6
- Lens MountM12
- Iris TypeFixed
- Depth of Field
2.8 mm: 1.4 m to ∞
4 mm: 1.4 m to ∞
- DORI
- DORI
Fixed lens:
2.8mmD: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m
4mmD: 78.0 m, O: 31 m, R: 15.6 m, I: 7.8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 12.5 fps {2560 x 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
- Video Compression Main stream: H.265
- Video Bit Rate32 Kbps to 8 Mbps
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio Compression G.711ulaw
- Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientHik-Connect
- Mobile Communication
- StandardLTE-TDD
- Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28
LA:LTE-FDD: B2/3/4/5/7/8/28/66
- Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
- SIM Card TypeNano SIM
- Image
- Image Settingsbrightness,contrast,white balance,saturation,sharpness
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)Digital WDR
- Interface
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Reset KeyYes
- Built-in SpeakerYes, 1 built-in speaker
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
- LinkageUpload to FTP/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
- General
- Power5 V, 2 A
- MaterialPlastic
- DimensionØ81.6 mm × 221.3 mm (Ø3.2″ × 8.7″)
- Package Dimension320 mm × 228 mm × 148 mm (12.6″ × 9.0″ × 5.8″)
- WeightApprox. 480 g (1.1 lb.)
- With Package WeightApprox. 1540 g (3.4 lb.)
- Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Functionmirror,flash log
- Storage Conditions
-20 °C to 25 °C (-4 °F to 77 °F). Humidity 70% or less (non-condensing)
- Flashing LightYes
- Battery
- Battery TypeLithium
- Capacity9000 mAh (3.7 V)
- Max. Charging Voltage8.4 V
- Battery Voltage 6 V to 8.4 V
- Operating Temperature
Charging: 0°C to 45°C (32°F to 113°F)
Discharging: -20°C to 55°C (-4°F to 131°F)
- Cycle LifetimeCap(800th)≥80%
- Approval
- RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
- Solar Power
- Solar Panel TypeMonocrystalline silicon solar panel
- Power Consumption8 W
- Solar Panel Dimensions & Weight263.8 × 171.7 × 18.5 mm / 450 g
- Working Temperature-40℃ to 85℃ (-40°F to 185°F)
- ProtectionIP65
