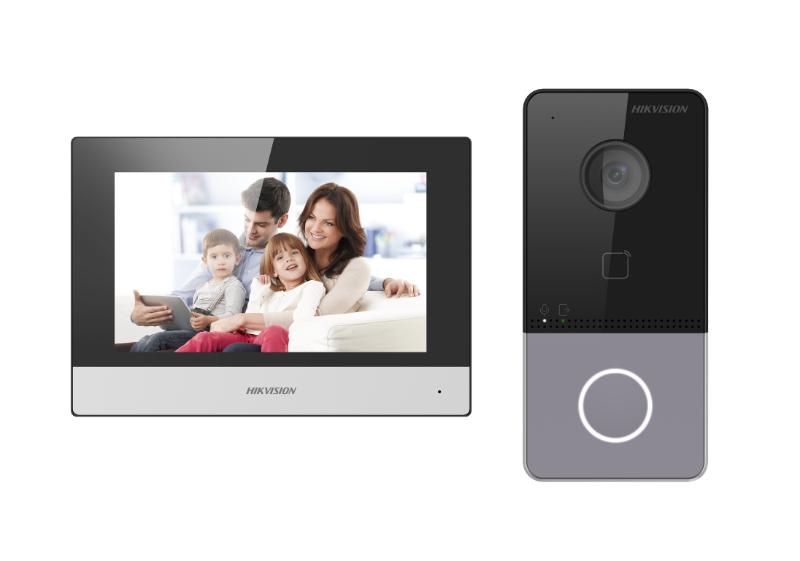

Qiymət sorğusu- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash32 MB
- RAM128 MB
- Door station/Video parameters
- Camera2MP HD camera
- Night visionLow illumination IR supplement mode:3 m
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRTrue WDR
- Field of viewHorizontal: 129° Vertical: 75°
- Video Compression StandardH.264
- StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion detectionSupport
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Audio intercomTwo-way audio communication
- Door station/Network parameters
- Network protocolTCP/IP, RSTP
- Wired network10/100 Mbps Ethernet
- Door station/Device interfaces
- RS-485 1
- Alarm input4
- Debugging port1
- Grounding1
- TAMPER switch1
- Door station/General
- Power consumption＜ 10 W
- Working temperature-40° C to 53° C(-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimension138 mm × 65 mm × 27 mm
- InstallationSurface mounting
- Protection level IP65
- Indicator2
- Power supplyIEEE802.3af, standard PoE
12 VDC
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network 10/100 Mbps self-adaptive
- Wireless networkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardMax to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
