Hikvision DS-3E1516-EI

Artikul: HC-DS-3E1516-EI

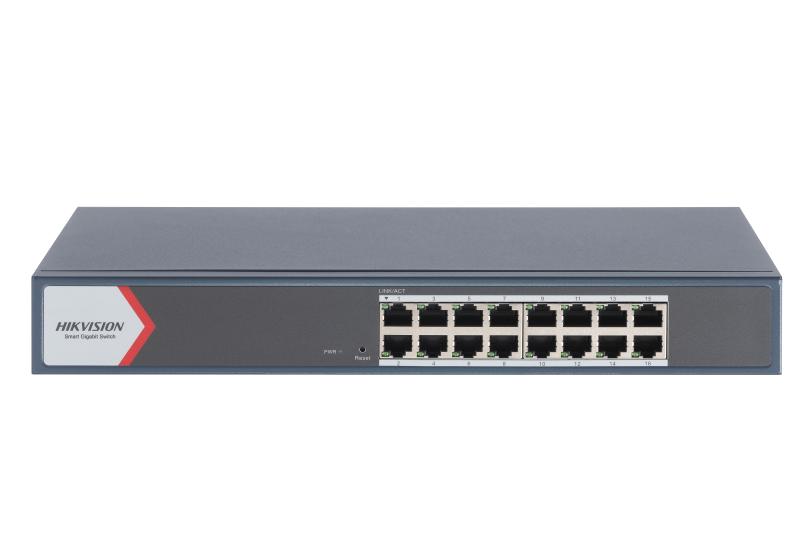

Hikvision DS-3E1516-EI — 16 Port Gigabit Smart kommutator

Shell: Metal material
Net Weight: 1.12 kg (2.47 lb)
Gross Weight: 1.96 kg (4.32 lb)
Dimensions (W × H × D): 335.00 mm × 44.50 mm × 175.80 mm (13.19” × 1.75” × 6.92”)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)

Sürətli çatdırılma

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

Rəsmi zəmanət

36 aya qədər
istehsalçıdan

100% orijinal

Hikvision-un rəsmi distribyutoru

Texniki dəstək

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Hissə-hissə alın

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Müqayisə et

Avadanlıq seçməkdə çətinlik çəkirsiniz?

General
ShellMetal material
Net Weight1.12 kg (2.47 lb)
Gross Weight1.96 kg (4.32 lb)
Dimensions (W × H × D)335.00 mm × 44.50 mm × 175.80 mm (13.19” × 1.75” × 6.92”)
Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity5% to 95% (no condensation)
Relative Humidity5% to 95% (no condensation)
Power Supply220 VAC, 50/60 Hz, Max. 0.3 A
Installation ModeRack (equipped with mounting ears)
Max. Power Consumption12 W
Power Consumption in Idle10 W
Surge Protection6 kV

Network Parameters
Ports16 × Gigabit RJ45 port
MAC Address Table8 K
Switching Capacity56 Gbps
Packet Forwarding Rate41.66 Mpps
Internal Cache4.1 Mbits

Software Function
Port IsolationPorts 1 to 16: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
Link AggregationLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
Support port-based priority configuration.
Support SP and WRR priority scheduling modes.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
VLANVLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
System MaintenanceSupport device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display topology information.
4. Display the alarm status.
5. Restart ports and devices.
6. Remotely upgrade the device.

Approval
EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
ChemistryWEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006),CE-RoHS (2011/65/EU)
