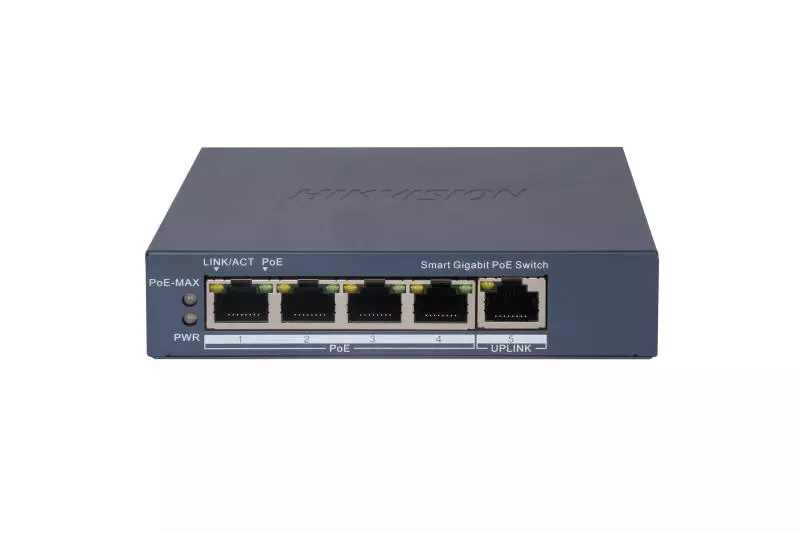

4 portlu Fast Ethernet Smart PoE switch
4 portlu Fast Ethernet Smart PoE switch
- General
- ShellMetal material
- Net Weight0.26 kg (0.573 lb)
- Gross Weight0.75 kg (1.65 lb)
- Dimensions (W × H × D)121.1 mm × 27.6 mm × 83.1 mm (4.77” × 1.09” × 3.27”)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54VDC, 1.2A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption65 W
- Power Consumption in Idle0.9 W
- Surge Protection6 KV
- Network Parameters
- Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af,IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPoE: Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget60 W
- Software Function
- Long Range
Ports 1to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
- Port Isolation
Ports 1to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE WatchdogPorts 1to 4: auto detect and restart the cameras that do not respond.
- Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
- VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety CE-LVD (EN 62368-1: 2014+A11: 2017),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
- ChemistryCE-RoHS (2011/65/EU),Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU)
