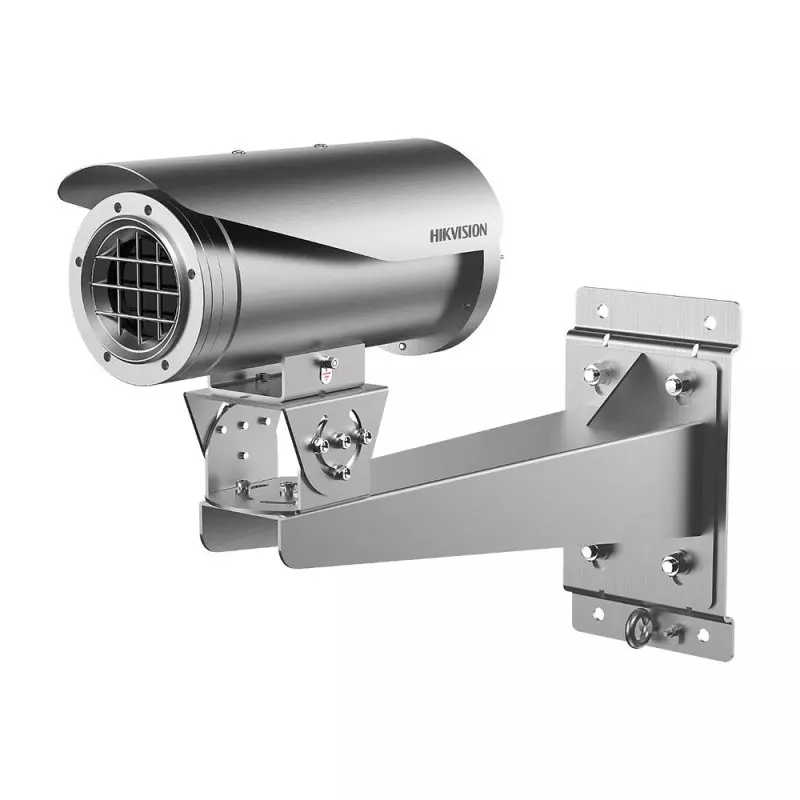

Partlayışa davamlı optik və termal şəbəkə Bullet kamera
Partlayışa davamlı optik və termal şəbəkə Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image sensorVanadium Oxide Uncooled Focal Plane Arrays
- Pixel Interval17 μm
- NETDless than 40 mk (0.04°C), F#=1.0
- MRAD0.68 mrad
- Field of View24.55° × 19.75° (H × V)
- Min. Focusing Distance2 m
- ApertureF 1.0
- Lens (Focal Length)25 mm
- Response waveband8 μm to 14 μm
- Max. Resolution640 × 512
- Smart Function
- VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
- Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
- Temperature Range-20° C to 550° C (-4°F to 1,022°F)
- Temperature AccuracyMax (± 2 °C, ± 2%)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- Network
- Main Stream50fps (640×512, 384×288, 352×288)
- Sub stream50fps (640×512, 384×288, 352×288)
- Third stream50fps (640×512, 384×288, 352×288)
- Video compressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
- Audio compressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Simultaneous live viewUp to 20
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Integration
- Alarm Input2-ch inputs (0-5V DC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/ Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface
- SD Memory CardBuilt-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support manual/alarm recording
- Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
- ClientiVMS-4200
- Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
- General
- Menu LanguageEnglish
- Power100-240 VAC,PoE (802.3at)
- Power Consumption100-240 VAC, max.15W PoE (802.3at)
- Work Temperature/Humidity-40 °C to 60 °C (-40 °F to 140 °F), 90% or less
- Protection LevelIP66 Standard,TVS 6000V Lightning protection, surge protection, voltage transient protection
- Dimensions409.6 mm × 179.2 mm × 183.3 mm (16.14″ × 7.06″ × 7.22″)
- Approx. 19.11 kg (42.13 lb)
