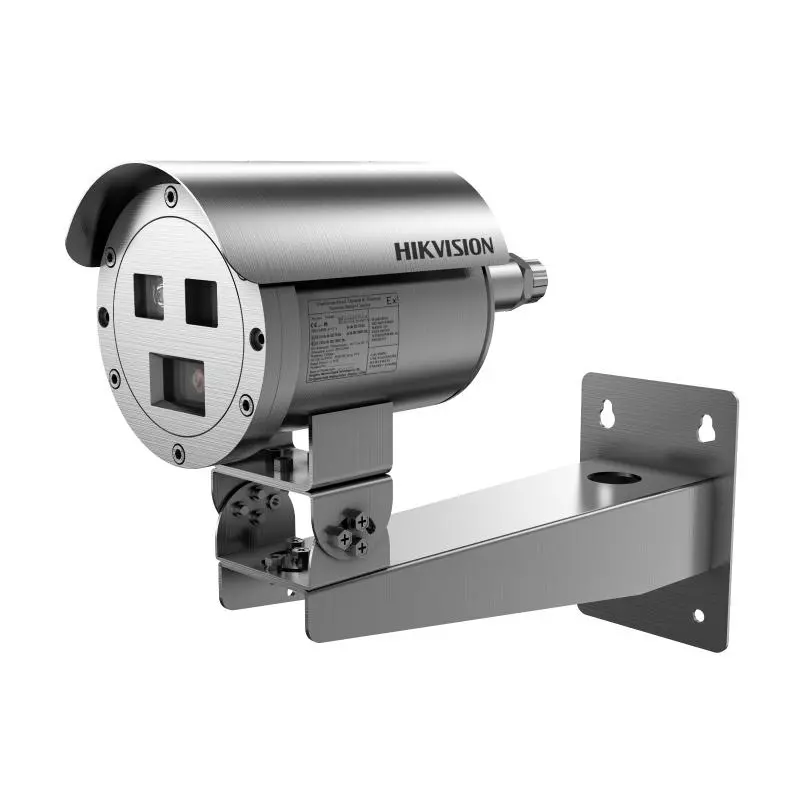

Partlayışa davamlı optik və termal şəbəkə Bullet kamera
Partlayışa davamlı optik və termal şəbəkə Bullet kamera
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 x 192
- Pixel Pitch12 μm
- NETD ≤ 40 mK(@25° C,F# = 1.0)
- Focal Length3.6 mm
- IFOV3.33 mrad
- ApertureF1.0
- Field of View50° × 37.3° (H × V)
- Min. Focusing Distance0.5 m
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. IlluminationColor: 0.05 Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
- Field of View83.7° × 43°(H × V)
- Focal Length4.3 mm
- Shutter Speed1 s to 1/100,000 s
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in Picture Display partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 650 °C (-4 °F to 1202 °F)
- Temperature AccuracyMax (± 2 °C, ±2 %)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable
- Smoking DetectionUp to 10 smoking points detected
- Smoke DetectionSupport smoke detection on optical channel
- Video and Audio
- Main Stream
Optical channel
50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Thermal channel
25 fps (1280×720, 704×576, 640×512, 320×240)
- Sub-stream
Optical channel
50 HZ: 25 fps (704 × 576, 352 × 288)
60 HZ: 30 fps (704 × 480, 352 × 240)
Thermal channel
25 fps (704 × 576, 352 × 288, 384 × 288)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Video and Image
- Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 512G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Client iVMS-4200, Hik-Connect
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2-ch, relay outputs (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
- Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply100 to 240 VAC, PoE (802.3af)
- Power Consumption100 to 240 VAC, PoE (802.3af), max.8W
- Working Temperature/Humidity
Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 90% or less
- Protection Level
IP68 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
NEMA 4X anti-corrosion housing
- Dimensions286.7 mm × 175.2 mm × 150.1 mm (11.29″ × 6.9″ × 5.91″)
- Approx. 5.85 kg (12.90 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans24 m
- VCA Range for Vehicles72 m
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
- Protection
IP68: IEC 60529-2013
IK10: IEC 62262-2002
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018), C5
