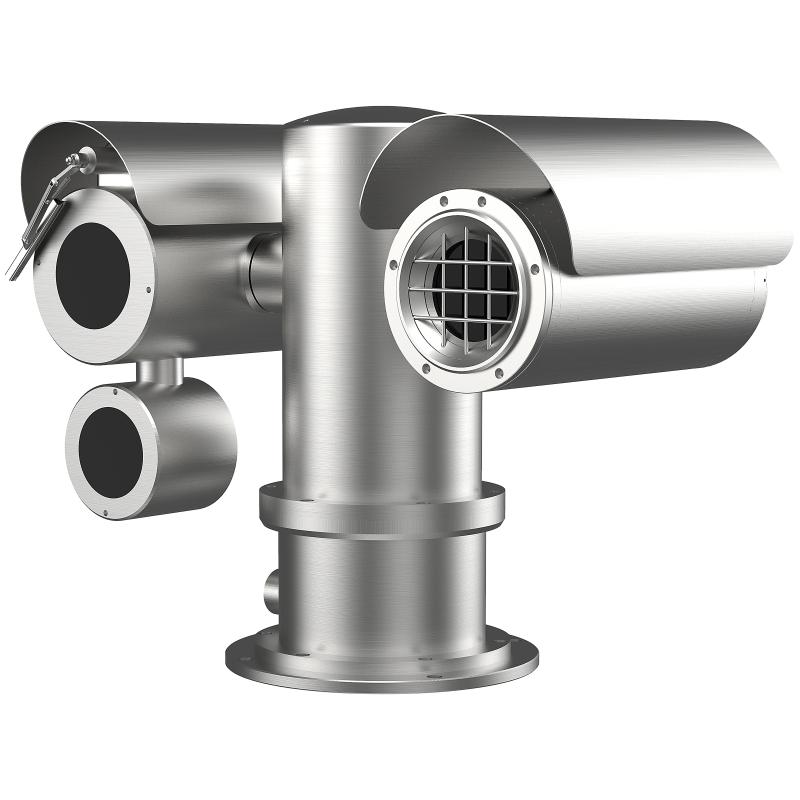

Hikvision DS-2TD6567T-25H4LX/W

Artikul: 30380a800752

Partlayışa davamlı termoqrafik mövqeləndirmə sistemi

İntellektual alqoritm əsasında perimetr mühafizəsi funksiyası: xəttin keçilməsi, müdaxilə, sahəyə giriş və çıxış
Yanğının qarşısının alınması üçün temperatur anomaliyası siqnalı
Yanğın aşkarlama alqoritmi
640 × 512 ayırdetmə, 17 μm, VOx UFPA, NETD ≤ 50 mK (25 °C, F# = 1.0)
Görüntü emalı texnologiyası: Liner, histogram və adaptiv termal AGC rejimi, DDE, 3D DNR
10 il zəmanətli yüksək keyfiyyətli detektor

Bakıya – bu gün
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

ədəd stokda

2 saata çatdırılma

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Optical Module
Image Sensor1/1.8” Progressive Scan CMOS
Resolution2688 × 1520, 4MP
Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON)
Field of View56.6° × 33.7° (H × V) to 1.8° × 1.0° (H × V)
Focal Length6~240mm,40x
Aperture (Range)F1.3-F4.6
Focus ModeSemi-auto, manual
Digital Zoom×2, ×4, ×8, ×16
Shutter Speed1 s to 1/100,000 s
Day & Night ModeIR Cut Filter
WDR120 dB
Optical DefogYes

Image Effect
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

PTZ
Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
Pan SpeedConfigurable, From 0.01°/s to 40°/s
Tilt SpeedConfigurable, From 0.01°/s to 40°/s
Proportional ZoomYes
Presets300
Patrol Scan8; Up to 32 presets per patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
Temperature AccuracyMax (±2°C, ±2%)
Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.

Video and Audio
Main Stream
Optical channel

50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

Thermal channel

50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
Sub-stream
Optical channel

50 Hz: 25fps (704 × 576, 352 × 288)

60 Hz: 30 fps (704 × 576, 352 × 288)

Thermal channel

50 fps (704 × 576, 640 × 512, 384 × 288)
Video Compression
Main stream: H.265+/H.265/H.264+/ H.264

Sub-stream: H.265/H.264/MJPEG
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SSH
Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users. 3 levels: administrator, operator, user
SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11

Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

Local service : Chrome 57.0 +, Firefox 52.0 +

Interface
Alarm Input7-ch inputs (0 to 5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Communication Interface
1, RJ45 10M/100M self-adaptive Ethernet interface.

1, RS-485 interface
Analog Output1.0 V [p-p]/75 Ω, BNC

General
Menu Language
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power SupplyAC 100-240V
Power ConsumptionAC 100-240V: max. 0.6A, 75 W
Working Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
WiperYes
Protection Level
IP68 Standard ,IK10-Rated Housing

TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions541.3 mm × 441 mm × 330 mm (21.31″ × 17.36″ × 12.99″)
Approx. 40 kg (88.18 lb)

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC: ICES-003: Issue 7;

KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11;

CE-LVD: EN 62368-1: 2014/A11: 2017;
Explosion-Proof Protection
ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68

IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
