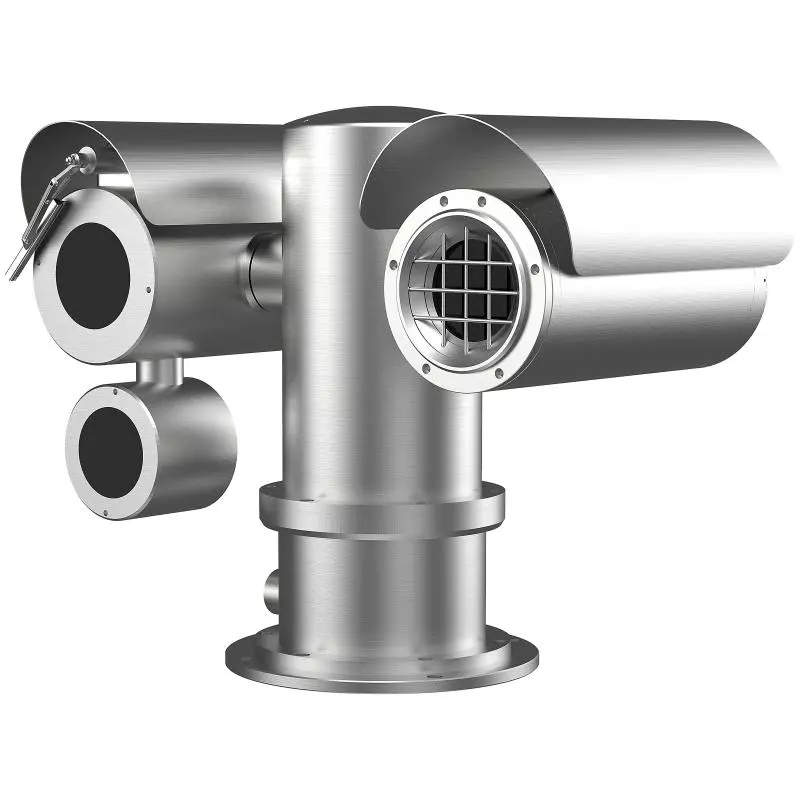

Hikvision DS-2TD6537T-25H4LX/W
Partlayışa davamlı termoqrafik mövqeləndirmə sistemi
Partlayışa davamlı termoqrafik mövqeləndirmə sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 x 288
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETD ≤ 35 mK(@25° C,F# = 1.0)
- Focal Length50 mm
- Focus ModeSemi-auto & Manual
- IFOV0.68 mrad
- ApertureF1.0
- Field of View7.5° × 5.6° (H × V)
- Min. Focusing Distance5 m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8” Progressive Scan CMOS
- Resolution2688 × 1520, 4MP
- Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON)
- Field of View56.6° × 33.7° (H × V) to 1.8° × 1.0° (H × V)
- Focal Length6~240mm,40x
- Aperture (Range)F1.3-F4.6
- Focus ModeSemi-auto, manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1 s to 1/100,000 s
- Day & Night ModeIR Cut Filter
- WDR120 dB
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -90° to + 90° (auto flip)
- Pan SpeedConfigurable, From 0.01°/s to 40°/s
- Tilt SpeedConfigurable, From 0.01°/s to 40°/s
- Proportional ZoomYes
- Presets300
- Patrol Scan8; Up to 32 presets per patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Illuminator
- IR DistanceUp to 200m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), 10 scenes and 8 VCA rules for each scene.
- Temperature Measurement3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
- Temperature AccuracyMax (±2°C, ±2%)
- Fire DetectionDynamic fire and smoke detection, up to 10 fire points and 10 smoke points detectable.
- Video and Audio
- Main Stream
Optical channel
50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
- Sub-stream
Optical channel
50 Hz: 25fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
50 fps (704 × 576, 640 × 512, 384 × 288)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SSH
- Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users. 3 levels: administrator, operator, user
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0 to 5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/patrol scan/SD card record/relay output/smart capture/FTP upload/email linkage
- Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
- Audio OutputLinear Level; Impedance: 600Ω
- Communication Interface
1, RJ45 10M/100M self-adaptive Ethernet interface.
1, RS-485 interface
- Analog Output1.0 V [p-p]/75 Ω, BNC
- General
- Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power SupplyAC 100-240V
- Power ConsumptionAC 100-240V: max. 0.6A, 75 W
- Working Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
- WiperYes
- Protection Level
IP68 Standard ,IK10-Rated Housing
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions541.3 mm × 441 mm × 330 mm (21.31″ × 17.36″ × 12.99″)
- Approx. 40 kg (88.18 lb)
- Certificate
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC: ICES-003: Issue 7;
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
- Detection Range Table/Smart Function Range
- VCA Range for Humans350 m
- VCA Range for Vehicles1050 m
- Approval
- Explosion-Proof Protection
ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68
