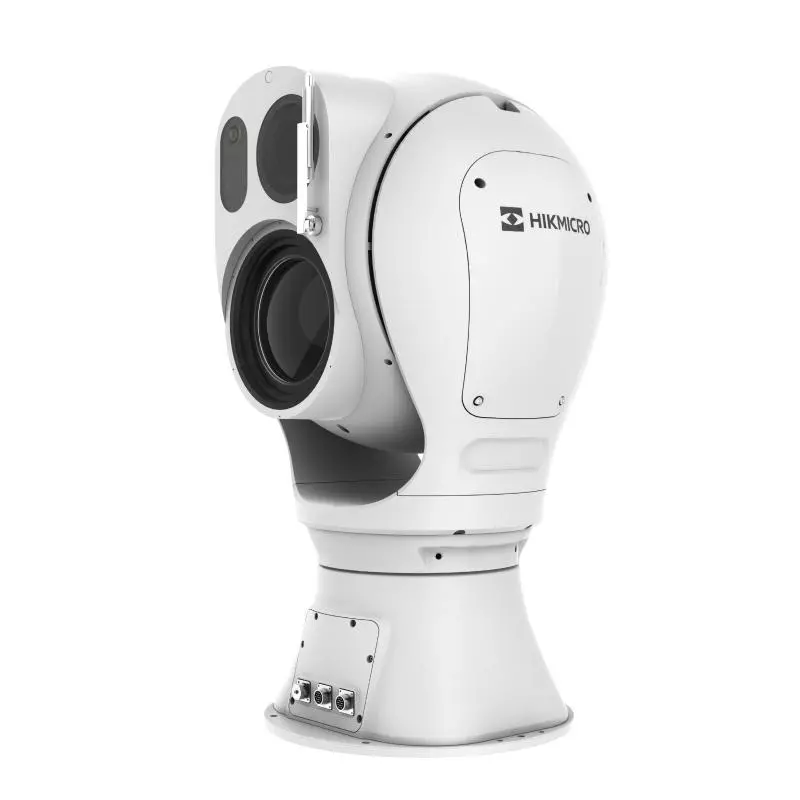

Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution1280 × 1024
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD≤ 25 mK (@ 25 °C,F# = 1.0)
- Focal Length30 to 300 mm
- Focus ModeSemi-auto & Manual
- IFOV0.4 to 0.04 mrad
- ApertureF0.85 to F1.35
- Field of View28.7° × 23.2° (H × V) to 2.9° × 2.4° (H × V)
- Min. Focusing Distance3 m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. IlluminationColor: 0.005 Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON)
- Field of View31.2° × 17.8° (H × V) to 0.41° × 0.23° (H × V)
- Focal Length10 to 1000 mm, 100x
- Aperture (Range)F3.0 to F11.5
- Focus ModeSemi-auto & Manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1 s to 1/30,000 s
- WDR120 dB
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationSupported in white hot and black hot mode
- Image StabilizationThermal channel: Built-in gyroscope to improve EIS performance(conflicted with intelligent function)； Optical channel：Optical Image Stabilization (OIS)
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip)
- Pan SpeedConfigurable, From 0.01°/s to 120°/s, Preset Speed: 120°/s
- Tilt SpeedConfigurable, From 0.01°/s to 80°/s, Preset Speed: 80°/s
- Proportional ZoomYes
- Presets300 in total, 273 are configurable.
- Patrol Scan8; Up to 256 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Illuminator
- Laser DistanceUp to 3000m
- Smart Function
- Basic Eventmotion detection;video tampering alarm;alarm input and output;scene change detection;audio exception detection
- VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 50 scenes and 8 VCA rules for each scene
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- Smoke DetectionUp to 16km detection ability with 5m*5m smoke
- Video and Audio
- Main Stream
Optical channel
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
25 fps (1920 × 1080, 1280 × 1024, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288)
- Sub-stream
Optical channel
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
25 fps (704 × 576, 640 × 512, 384 × 288)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM/AAC
- Video and Image
- Color Palettes15 palettes (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Icefire, Rain, Red hot,Green hot, Dark blue)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, ISUP, HIKVISION SDK, Open Network Video Interface (Profile S, Profile G, Profile T), OTAP
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input2-ch inputs (0 to 5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M/1000 M Self-adaptive Ethernet interface.
1, RS-485 interface
- Analog Output1.0 V [p-p]/75 Ω, BNC for thermal channel
- General
- Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply48 VDC ± 20%, 4-pin Aviation Connector
- Power Consumption180 W; Max. 460 W with deicing heating
- Working Temperature/HumidityFrom -40°C to 70°C (-40°F to 158°F); Humidity: 90% ± 3% (no condensation)
- WiperManual & Scheduled & Smart Wiper
- Protection LevelIP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimensions578.3 mm × 571 mm × 955.7 mm (22.8 ” × 22.5 ” × 37.6 “)
- Approx. 100kg (220.5 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans3000 m
- VCA Range for Vehicles6300 m
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
