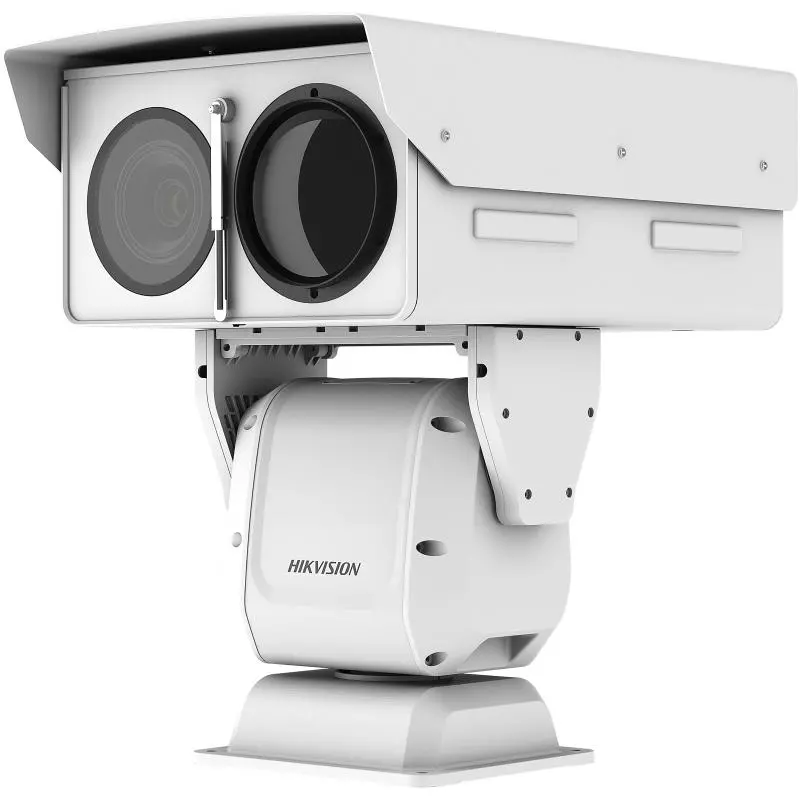

Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution640 × 512 (the resolution of output image is 1920 × 1080)
- Pixel Pitch17 μm
- Spectral Range8 μm to 14 μm
- NETDLess than 35 mK (@25 °C,F#=1.0)
- Focal Length30 to 150 mm
- Focus ModeSemi-auto & Manual
- IFOV0.57 to 0.11 mrad
- ApertureF0.8 to F1.2
- Field of View20.56° × 16.51° (H × V) to 4.15° × 3.32° (H × V)
- Min. Focusing Distance3m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON)
- Field of View60° × 35.8° (H × V) to 1.2° × 0.7° (H × V)
- Focal Length6.7 to 360mm, 54X
- Aperture (Range)F1.36-F4.6
- Focus ModeSemi-auto/Manual
- Shutter Speed1s to 1/30,000s
- WDR120 dB
- Digital Zoom×2, ×4, ×8, ×16
- Optical DefogYes
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationSupported in white hot and black hot mode
- PTZ
- Movement RangePan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip)
- Pan SpeedConfigurable, From 0.01°/s to 40°/s, Preset Speed: 240°/s
- Tilt SpeedConfigurable, From 0.01°/s to 20°/s, Preset Speed: 200°/s
- Proportional ZoomYes
- Presets300 in total, 273 are configurable.
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Smart Function
- VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
- Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
Optical channel
50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 384 × 288)
- Sub-stream
Optical channel
50 Hz:25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
50 fps (704 × 576, 640 × 480, 384 × 288)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Video and Image
- Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
- Analog Output1.0 V [p-p]/75 Ω, BNC for thermal channel
- General
- Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply48 VDC ± 20%, two-core terminal block
- Power ConsumptionBasic: ＜190W; Max: ＜270W (Heater on)
- Working Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
- WiperYes
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimensions559 mm × 379 mm × 646 mm (22.0 ” × 14.9 ” × 25.4 “)
- Approx. 60kg (132.3 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans1050 m
- VCA Range for Vehicles3150 m
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
FCC: CFR 47 FCC Part 15 subpart B
- Environment
CE-RoHS：2011/65/EU,
Reach：Regulation(EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
