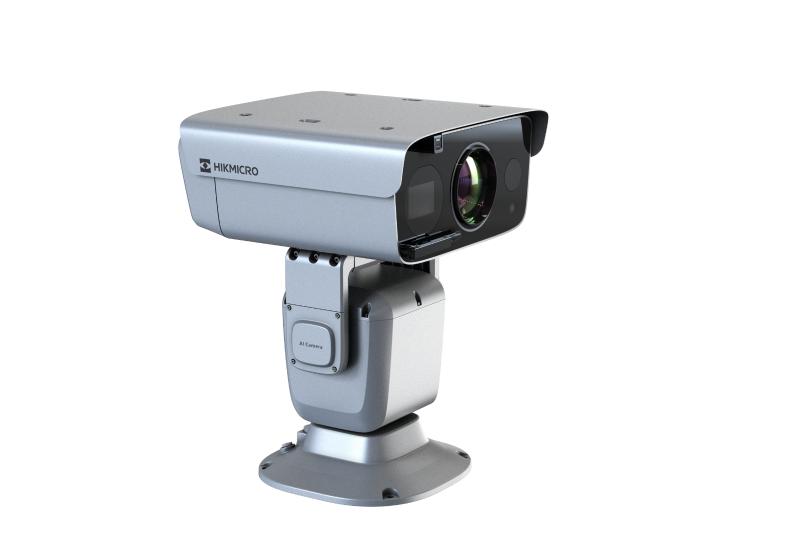

Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Termal və Optik Bi-spektr Şəbəkə PTZ Sistemi
Sorğu əsasında
Qiymət sorğusu- Thermal Module
- Image SensorVOx Uncooled Focal Plane Arrays
- Resolution640 × 512
- Pixel Interval12 μm
- Response Waveband8 μm to 14 μm
- NETD ≤ 20 mK(@25° C,F# = 1.0)
- Focal Length13~130 mm
- Focus ModeSemi-auto & Manual
- IFOV0.092~0.92 mrad
- ApertureF0.8~F1.25
- Field of View
Wide: 34.3° × 27.3°(H × V);
Tele: 3.4° × 2.7°(H × V)
- Min. Focusing DistanceWide: 0.5m; Tele: 10m
- Digital Zoomx2, x4, x8
- Optical Module
- Image Sensor1/1.8″ Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux@ (F1.5, AGC ON) ,0 Lux with IR
- Field of View
Wide: 55.56° × 32.4°(H × V)
Tele: 1.86° x 1.06°(H × V)
- Focal Length6-360mm, 60x
- Aperture (Range)F1.59-5.42
- Focus ModeAuto & Semi-auto & Manual
- Shutter Speed1.1 s to 1/30,000 s
- WDR120 dB
- Optical DefogYes
- Digital Zoomx2, x4, x8, x16
- Image Effect
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- Image Stabilization
Thermal channel supports EIS.
Optical channel supports OIS.
- PTZ
- Movement Range Pan: 360° Continuous Rotate; Tilt: From -85° to + 85° (auto flip)
- Pan SpeedConfigurable, From 0.01°/s to 110°/s
- Tilt SpeedConfigurable, From 0.01°/s to 50°/s
- Proportional ZoomYes
- Presets300 intotal
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off MemoryYes
- ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT StatusTurn On/Turn Off
- Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Illuminator
- Laser DistanceUp to 2000m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
- Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
- Smoke DetectionUp to 6km detection ability with 5m*5m smoke
- Video and Audio
- Main Stream
Optical channel
50 Hz: 25 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
Thermal channel
25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288)
- Sub-stream
Optical channel
50 Hz: 25fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 576, 352 × 288)
Thermal channel
25 fps (704 × 576, 640 × 512, 384 × 288)
- Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Video and Image
- Color Palettes15 palettes (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Icefire, Rain, Red hot,Green hot, Dark blue)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, ISUP, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear Level; Impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface
- Analog Video Output1.0 V [p-p]/75 Ω, BNC for thermal channel
- General
- Power36VDC ± 20%, 48VDC ± 20%, two-core terminal block
- Power Consumption7 A, max. 150 W
- Work Temperature/Humidity From -40°C to 70°C (-40°F to 158°F); Humidity: 95% or Less
- WiperYes
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension543.8mm × 399.7mm × 390.3 mm (21.41” × 15.74” × 15.37”)
- Approx. 27.5 kg (60.627 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans1690m
- VCA Range for Vehicles3900m
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
IC (ICES-003: Issue 7)
- Safety
CB: IEC 62368-1: 2014+A11;
CE-LVD: EN 62368-1: 2014/A11: 2017;
- Environment
CE-RoHS：2011/65/EU,
WEEE: 2012/19/EU,
Reach：Regulation(EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
- OtherNEMA 4X (NEMA 250-2018)
