Hikvision DS-2TD2617-10/P

Artikul: HC-DS-2TD2617-10/P

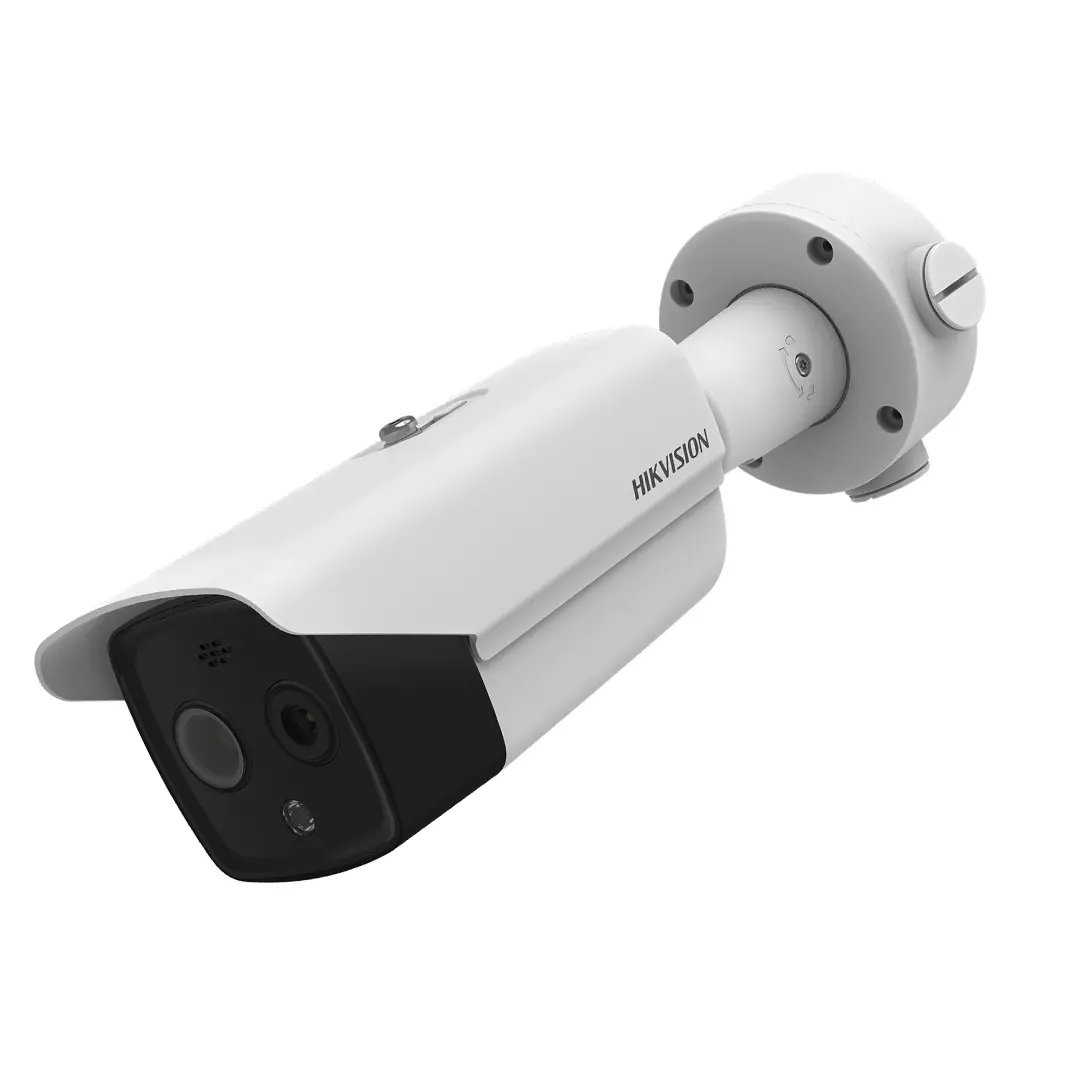

Hikvision DS-2TD2617-10/P — Thermal & Optical Bi-spectrum Network Bullet (silindrik) kamera

Mövcudluq təsdiqləndikdən sonra
Azərbaycan daxilində 1-2 gün

36 aya qədər
istehsalçıdan

Hikvision-un rəsmi distribyutoru

Avadanlıqların seçilməsi və qurulmasında köməklik

Mövcudluğu dəqiqləşdirin

Sorğu əsasında

Partnyorlar üçün qiymət

Endirim tələb edin

Mütəxəssis köməyi

Avadanlıq seçməkdə çətinlik çəkirsiniz?

Optical Module
Image Sensor1/2.7″ Progressive Scan CMOS
Resolution2688 × 1520, 4 MP
Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed1s to 1/100,000s
Focal Length8 mm
Field of View39.42° × 22.14°(H × V)
Aperture (Range)F1.7
WDR120 dB

Image Effect
Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
Target ColorationYes. Supported in white hot and black hot mode.

Smart Function
VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy± 8 °C (±14.4 °F)
Fire DetectionDynamic fire detection, up to 10 fire points detectable.

Video and Audio
Main StreamThermal:
25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub StreamThermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:
50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:
60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)
Video CompressionMain Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live ViewUp to 20 channels
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClientiVMS-4200, Hik-Connect
Web BrowserLive view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +

Interface
Alarm Input2-ch inputs (0-5 VDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio OutputLinear Level; Impedance: 600 Ω
Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface

General
Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.65A
Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
12 VDC ± 20%: 0.65 A, max. 7.5 W
Work Temperature/HumidityFrom -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.53″)
Approx. 1.76 kg (3.88 lb)
