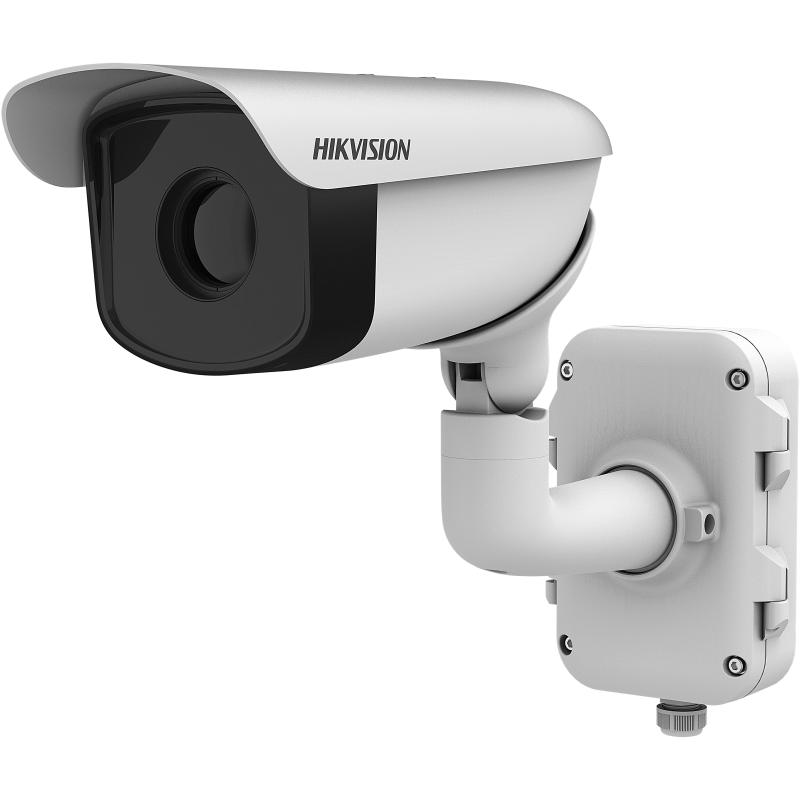

Qiymət sorğusu- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution640 × 512
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETD< 35 mk (25 °C, F# = 1.0)
- Focal Length50mm
- IFOV0.34 mrad
- Field of View12.4° × 10° (H × V)
- Min. Focusing Distance50 m
- ApertureF 1.0
- Digital Zoom×2, ×4, ×8
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature AccuracyMax (±8 °C, ±8 %)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
- Sub-stream50 Hz: 25 fps (704 × 576, 640 × 512,352 × 288)
- Third Stream50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 512,352 × 288)
- Video CompressionMain Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG - Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/AAC/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
- APIISAPI, HIKVISION SDK, open network video interface
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- ClientiVMS-4200, Hik-Connect
- Web BrowserIE 11, Chrome 41-44, Firefox 30-51
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface
Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10% - Audio OutputLinear level, impedance: 600 Ω
- Communication Interface1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface
1, Single Mode Fiber interface; TX: 1310 nm; RX 1550 nm; Transmission Distance: 20 km; Transmission Speed: 100 M;
- General
- Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) - Power Supply24 VAC ± 25%, two-core terminal block
PoE (802.3at, class 4) - Power Consumption18 VAC to 30 VAC: 0.13 A to 0.22 A, max 5 W
9 VDC to 15 VDC: 0.37 A to 0.61 A, max 5 W
PoE (802.3at, class 4): 44 V to 57 V: 0.1 A to 0.13 A, max. 5.5 W - Working Temperature/HumidityTemperature: – 40 °C to 65 °C (- 40 °F to 149 °F)
Humidity: 90% or less - Protection LevelIP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection - Dimensions535mm × 400mm × 171mm (21.06″ × 15.75″ × 6.73″)
- Approx. 6.40 kg (14.11 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans350 m
- VCA Range for Vehicles1050 m
