Qiymət sorğusu- Product Model
- Product ModelDS-D4015AW-2FQ
- Product Type

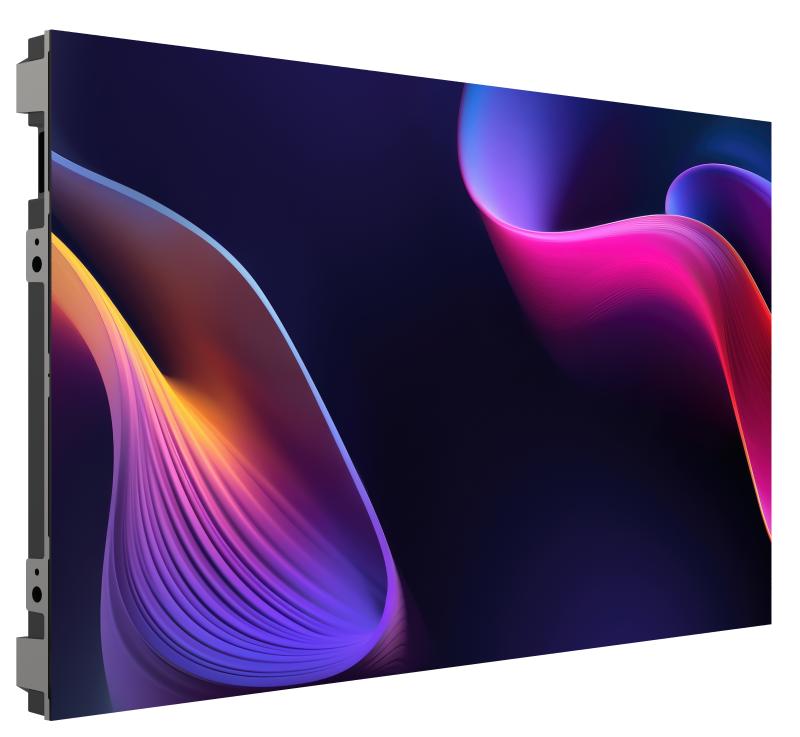

- Product TypeSmall Pixel Pitch Indoor Full-color LED Display

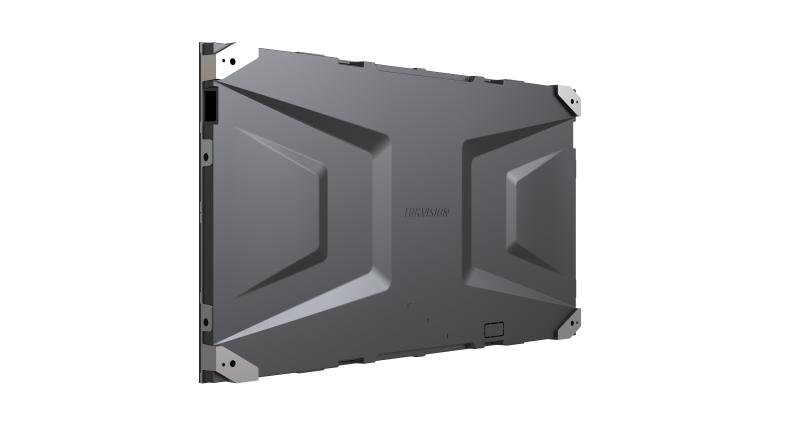

- Cabinet
- Pixel ConfigurationRegular Chip MIP
- Pixel Pitch1.5625 mm
- Pixel Pitch CategoryP1.5
- Pixel Density409600 dots/㎡
- Modules Component2 × 2
- Dimensions (W × H × D)600 mm × 337.5 mm × 29.5 mm (23.622″ × 13.287″ × 1.161″)
- Resolution384 × 216
- Area0.2025 ㎡
- 3.4 kg
- Cabinet MaterialAluminium die casting
- Maintenance MethodFront maintenance for all components
- Module
- Dimensions300 × 168.75 mm
- Module Resolution192× 108
- Display
- White Balance Brightness600 cd/㎡
- Color Temperature3000-10000 K adjustable
- Viewing Angle160°(H)/160°(V)
- Contrast Ratio5000:1
- Color Uniformity≤ ± 0.003Cx，Cy
- Brightness Uniformity≥ 97％
- Processing Performance
- Driving MethodConstant current driving
- Frame Frequency60 Hz
- Refresh Rate3840 Hz
- Grey Level16 bit
- Power
- Max. Consumption≤ 278 W/㎡ （600 nits）
- Average Consumption≤ 93 W/㎡
- Input Voltage100~240 VAC ± 10％
- Working Environment
- Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity10% to 60% RH (without condensation)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 85% RH (without condensation)
- General
- Package Dimensions (W × H × D)Module: 4-in-1(443X360X52mm) Structure: 5-in-1(708X393X433mm)
- Packing ListRegulatory Compliance and Safety Information × 1
Connecting screws, light beads, driver IC, iron sheets - G.W.4.5 kg（1 package in 1 box）
- Net Weight3.4 kg
- Bracket
- Modular Bracketstandard bracket:DP-D40XXCB22-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCB22-2X2-Q0.8-NW-Q0.8-HC 2*2,ultra-thin bracket:DP-D40XXCB22-1X1-Q0.2-NW-Q0.2-ZF
