Qiymət sorğusu- Product Model

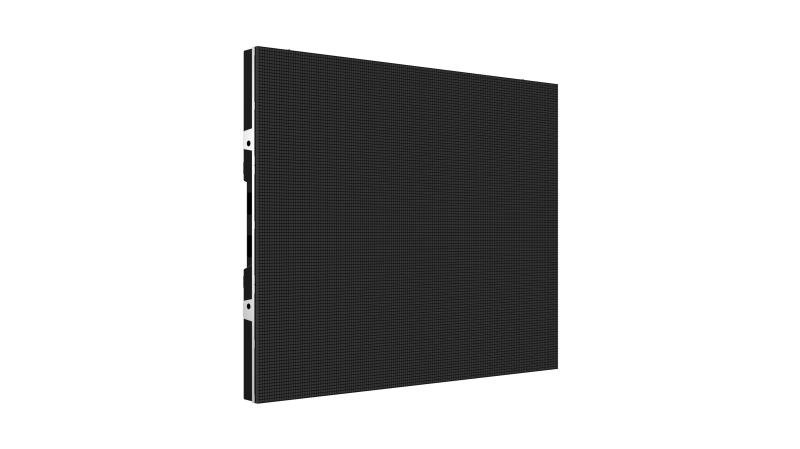

- Product ModelDS-D4012CS-2F
- Product Type
- Product TypeIndoor small pitch full color LED
- Display
- White Balance Brightness600 cd/㎡
- Color Temperature3000-10000 K adjustable
- Viewing Angle160°(H)/160°(V)
- Contrast Ratio5000:1
- Color Uniformity≤ ± 0.003Cx，Cy
- Brightness Uniformity≥ 97％
- Module
- Dimension (W × H × D)320×160mm
- Module Resolution256 × 128
- Cabinet
- Pixel ConfigurationSMD Triad LED
- Pixel Pitch1.25mm
- Pixel Pitch CategoryP1.2
- Pixel Density640000 dots/m²
- Modules Component2 × 3
- Dimensions (W × H × D)640 (W) mm × 480 (H) mm ×36 (D) mm (25.197” × 1.898” × 1.42”)
- Resolution512 × 384
- Area0.3072 ㎡
- 6 kg (13.23 lb.)
- Cabinet MaterialDie cast aluminum
- Maintenance MethodComplete front maintenance
- Processing Performance
- Driving MethodConstant current driving
- Frame Frequency60 Hz
- Refresh Rate3840 Hz
- Grey Level Up to 16 bit
- Power
- Max. Consumption450W/㎡
- Average Consumption150W/㎡
- Input Voltage100~240 VAC ± 10％
- Working Environment
- Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
- Working Humidity 10% to 60% RH (without condensation)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity10% to 85% RH (without condensation)
- General
- Package Dimension (W × H × D)758 (W) mm × 606 (H) mm × 606 (D) mm (29.843 ” × 23.858 ” × 17.402”)
- Packing List
Regulatory Compliance and Safety Information × 1
Several Joint pieces,Fixing screws and Signal cables
Several LED lamp beads and IC components
- Gross Weight7 kg (15.4 lb.)
- Net Weight6 kg (13.23 lb.)
- Bracket
- Modular BracketDS-DL116448W 1*1;DS-DL126448W 1*2;DS-DL226448W 2*2
