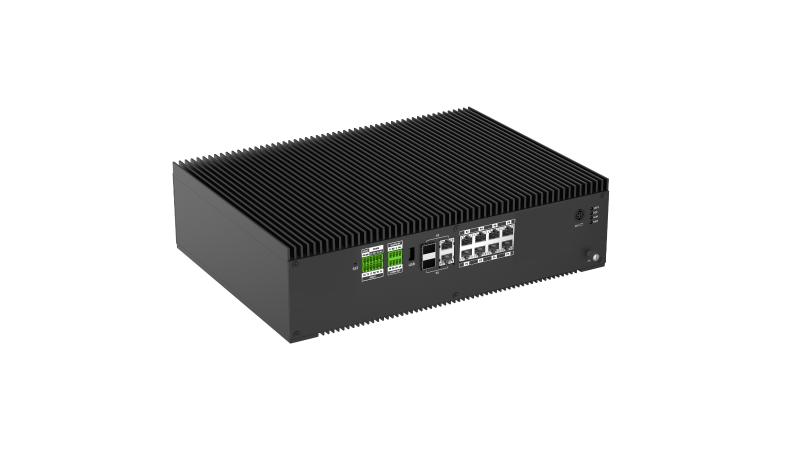

Hikvision iDS-TSV300-F

Video Input

12 CH access, up to 9MP resolution

Video Compression

H.264,H.265

Optical Interface

2 SFP

RS-232

2 RS-232

USB

1 × USB 3.0 (5.0 V, 1.0 A)

Indicator

4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator)

Network Interface

10 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)

Alarm

2 × input, 2 × output

Audio

1 × input, 1 × output

RS-485

2 RS-485

Protocols

TCP/IP,DDNS,HTTPS,RTSP,NTP,HTTP,DHCP,RTP,DNS,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SMTP,IGMP,802.1X,QoS,ISUP,FTP,ARP

Client

;Hik-Central Master,;Hik-Central Pro,;HikCentral Master Lite

Security

Password protection,Complicated password

Simultaneous Live View

Up to 12 channel(s)

User/Host

Up to 128 users,3 user levels: administrator, operator, and user

API

ONVIF (PROFILE M, PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK

Web Browser

Chrome V61+, Edge

Data Uploading

ANPR and manual uploading

Network Settings

Able to set two-segment IP address

Smart Function

Image re-recognition: license plate number, vehicle type (coach, truck, car, minibus, van, SUV, and pickup truck), vehicle color (red, yellow, green, cyan, blue, purple, pink, brown, white, gray, and black), vehicle brand, phone call, seatbelt unbuckled.

Operation System

Linux

HDD Storage

4 × 3.5-inch SATA (Each SATA interface supports up to 8 TB HDD)

Operating GUI

Web

Power

;DC 12 V ± 10%, 6 A, max. 72 W

Dimensions

482.6 mm × 102.5 mm × 285.49 mm (19″ × 4.04″ × 11.24″) (L × W × H)

Package Dimensions

508 mm × 320 mm × 370 mm (20″ × 12.6″ × 14.57″) (L × W × H)

Weight

Approx. 5.6 kg (12.34 lb.)

With Package Weight

Approx. 8 kg (17.6 lb.)

Operating Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)

Storage Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing)

EMC

CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014

Safety

;CB: IEC 62368-1:2014,IEC 62368-1:2018,;CE-LVD: EN 62368-1:2014+A11:2017

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU
