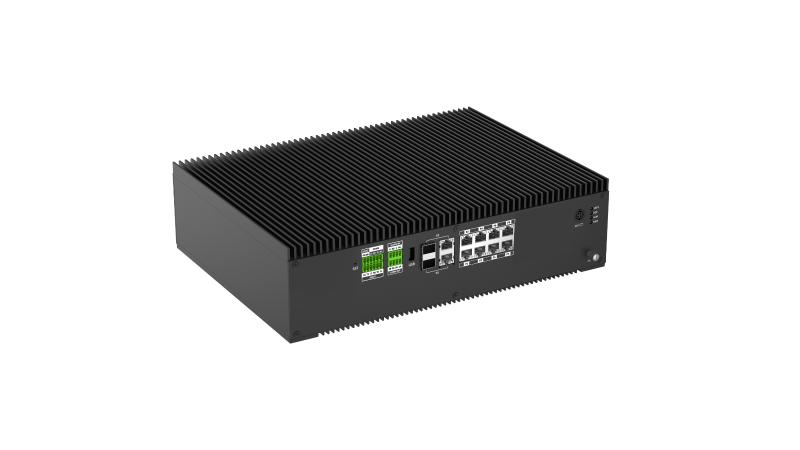

Hikvision iDS-TSS300-F

Video Compression

H.265,H.264

Video Input

4 CH access, up to 4MP resolution

Alarm

2 × input, 2 × output

Audio

1 × input, 1 × output

Indicator

4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator)

Network Interface

10 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)

Optical Interface

2 SFP

RS-232

2 RS-232

RS-485

2 RS-485

USB

1 × USB 3.0 (5.0 V, 1.0 A)

API

ONVIF (PROFILE M, PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK

Client

;Hik-Central Master,;Hik-Central Pro,;HikCentral Master Lite

Protocols

TCP/IP,DDNS,HTTPS,RTSP,NTP,HTTP,FTP,DHCP,DNS,RTP,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SMTP,IGMP,802.1X,QoS,ARP

Security

Password protection,Complicated password,HTTPS encryption,Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log

Simultaneous Live View

Up to 4 channel(s)

Web Browser

Chrome V61+, Edge

User/Host

Up to 128 users,3 user levels: administrator, operator, and user

Data Uploading

TFS(Traffic Forensics System), AID(Automatic Incident Detection) and manual uploading

Network Settings

Able to set two-segment IP address

Smart Function

Supports multiple incidents detection: Congestion, Wrong-Way Driving, Stopped Vehicle, Motor Vehicle on Non-Motor Vehicle Lane(Emergency Lane Occupation), Pedestrian, Fallen Object, Roadblock, Construction, Traffic Accident, Single Vehicle Breakdown, Driving on the Lane Line, Lane Change, U-Turn, Smoke.,Supports multiple traffic parameters collection: Traffic Flow, Traffic Flow(Small-Size Vehicle), Traffic Flow(Medium-Size Vehicle), Traffic Flow(Large-Size Vehicle), Average Speed, Average Lane Time Occupation, Average Lane Space Occupation, Average Time Headway, Average Space Headway.

Operation System

Linux

HDD Storage

4 × 3.5-inch SATA (Each SATA interface supports up to 8 TB HDD)

Operating GUI

Web

Power

;DC 12 V ±10%, 6 A, max. 72 W

Dimensions

482.6 mm × 102.5 mm × 285.49 mm (19″ × 4.04″ × 11.24″) (L × W × H)

Package Dimensions

508 mm × 320 mm × 370 mm (20″ × 12.6″ × 14.57″) (L × W × H)

Weight

Approx. 5.6 kg (12.34 lb.)

With Package Weight

Approx. 8 kg (17.64 lb.)

Operating Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)

Storage Condition

-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing)

EMC

CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014

Safety

;CB: IEC 62368-1:2014,IEC 62368-1:2018,;CE-LVD: EN 62368-1:2014+A11:2017

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU
