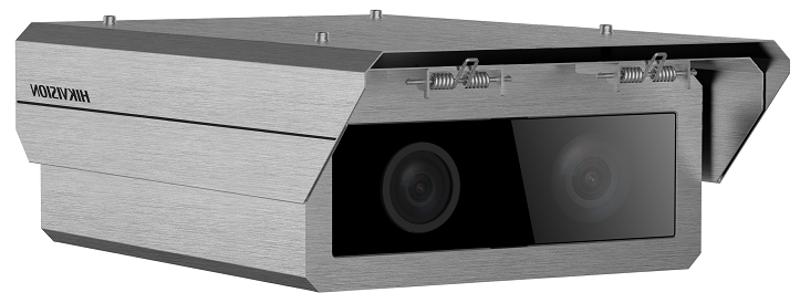

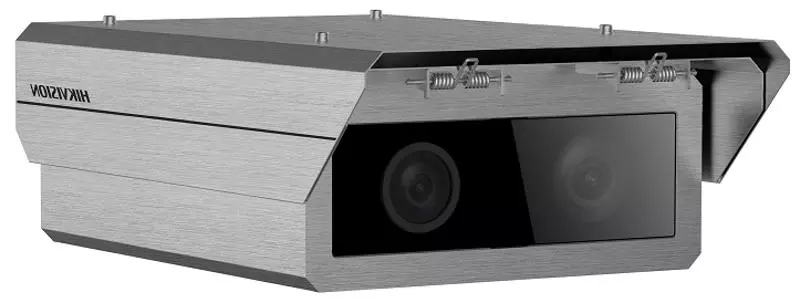

Hadisə aşkarlanması üçün Fusion 8MP Radar Video Kamera
Hadisə aşkarlanması üçün Fusion 8MP Radar Video Kamera
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor1″ GMOS
- Max. Resolution4096 × 2160
- Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON)
- Shutter Time7 us-20000 us
- Lens
- Lens Type
Varifocal lens, motorized lens, 11 to 40 mm
- Focal Length & FOV11 to 40 mm, horizontal FOV 62° to 23.6°, vertical FOV 32.2° to 12.2°, diagonal FOV 70° to 26.8°
- Focus Auto
- ApertureF1.6
- Thermal
- Image SensorVOx Uncooled Focal Plane Arrays
- Max. Resolution640 × 512
- Focal Length & FOV15 mm: Horizontal: 29.1°, Vertical: 23.4°, Diagonal: 37.4°
- Video
- Main Stream
50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Third Stream
50 Hz: 50 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Video Compression
Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Network
- ProtocolsTCP/IP, HTTP, HTTPS, DDNS, RTSP, NTP, FTP, SFTP, DHCP, DNS, RTP, IPv4/IPv6, UDP, SSL/TLS, ICMP, RTCP, SNMP, IGMP, 802.1X, QoS, ISUP, ARP
- Simultaneous Live ViewUp to 10 channels
- APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
- User/HostUp to 16 users,3 user levels: administrator, operator, and user
- Security
Password protection
Complicated password
HTTPS encryption
Watermark
Basic and digest authentication for HTTP/HTTPS
RTP/RTSP over HTTPS
Control timeout settings
Security audit log
IP address filter
WSSE and digest authentication for ONVIF
Host authentication (MAC address)
- Network StorageMicro SD/TF card (512 GB),Local storage,CVR,NVR,ANR
- ClientHik-Central Master,HikCentral Master Lite,Hik-Central Pro
- Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Manual
- Image EnhancementBLC, 3D DNR
- Supplement Detection (Satellite Positioning)
- Satellite Positioning
GPS (optional)
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface,
1 LC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate
- RS-232
1 RS-232 interface
- RS-4851 RS-485 interface (half duplex, HIKVISION)
- USB
1 USB 2.0 (5.0 V, 1.0 A) interface
- Alarm 6 output interfaces(5V, level signal)
- On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
- Event
- Basic EventHDD Error, network disconnected, IP address conflicted
- Road Traffic and Vehicle Detection
- CoverageUp to 4 lanes
- Trigger ModeVideo trigger
- Smart Function
Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Speeding, Low-Speed, Rapid Deceleration, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Traffic Accident, Emergency Lane Occupation, Fire, Smoke, Animal Intrusion.
Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy.
- General
- Operating SystemLinux
- PowerAC 110 V to 240 V, 1.3 A, max. 52 W, 3-core terminal block
- Material
Stainless steel 316L
- Dimension462 mm × 233.46 mm × 154.1 mm (18.19″ × 9.19″ × 6.07″) (L × W × H)
- Package Dimension740 mm × 470 mm × 238 mm (29.13″ × 18.50″ × 9.37″) (L × W × H)
- Weight Approx. 8.0 kg (17.6 lb.)
- With Package WeightApprox. 13.7 kg (30.2 lb.)
- Operating Condition-30 °C to 70 °C (22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition-30 °C to 70 °C (22 °F to 158 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat, Password protection, NTP time adjustment, One-key reset, Watermark
- HeaterSupported
- Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
- Approval
- EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
- Safety
CE-LVD: EN 61010-1: 2010+A1: 2019,
CB: IEC 61010-1: 2010; IEC 61010-1: 2010/AMD1: 2016
- EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
