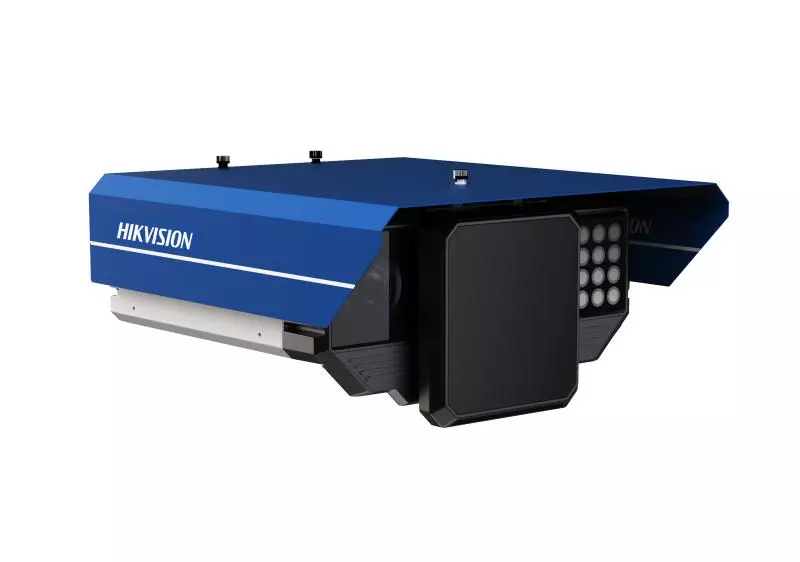

Hadisə aşkarlanması üçün Fusion 8MP Radar Video Kamera
Hadisə aşkarlanması üçün Fusion 8MP Radar Video Kamera
Sorğu əsasında
Qiymət sorğusuImage Sensor | 1″ GMOS |
Max. Resolution | 4096 × 2160 |
Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON) |
Shutter Time | 7 us-20000 us |
Lens Type | Fixed focal lens, 25 mm |
Focal Length & FOV | 25 mm, horizontal FOV 32°, vertical FOV 16.8°, diagonal FOV 36.3° |
Focus | Auto |
Aperture | F1.6-C |
Built-in Supplement Light Type | White light |
Supplement Light Number | 16 |
Built-in Supplement Light Range | Up to 40 m |
External Supplement Light | Strobe light |
Working Frequency | 79 to 81 GHz |
Modulation Waveform | FMCW |
Horizontal Detection Angle | ±14°@Narrow Beam, ±60°@Wide Beam |
Vertical Detection Angle | ±4.5°@Narrow Beam,±12.6°@Wide Beam |
Angle Resolution | 1.8°@Narrow Beam,6.2°@Wide Beam |
Sweep Bandwidth | 169M Hz@Narrow Beam,500M Hz@Wide Beam |
Speed Measurement Accuracy | ±2km/h |
Speed Measuring Range | -250 to +250 km/h |
Detection Distance | 20 to 350 m |
Antenna Beam Width | 35° × 16° |
Trigger Consistency | ≤ ± 1 m |
Trigger Mode | Approaching direction,Leaving direction,Bidrection |
Coverage Lanes | Up to 4 lane(s) |
Main Stream | ;50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | ;50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Third Stream | ;50 Hz: 50 fps (1920 × 1080, 1280 × 720, 704 × 576);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576) |
Video Compression | Main stream: H.265/H.264/MJPEG,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline profile/Main profile/High profile |
H.265 Type | Main profile |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Protocols | TCP/IP, HTTP, HTTPS, DDNS, RTSP, NTP, FTP, SFTP, DHCP, DNS, RTP, IPv4/IPv6, UDP, SSL/TLS, ICMP, RTCP, SNMP, IGMP, 802.1X, QoS, ISUP, ARP |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
User/Host | Up to 32 users,3 user levels: administrator, operator, and user |
Security | Password protection;Complicated password;HTTPS encryption;Watermark;Basic and digest authentication for HTTP/HTTPS;RTP/RTSP over HTTPS;Control timeout settings;Security audit log;IP address filter;WSSE and digest authentication for ONVIF;Host authentication (MAC address) |
Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
Client | Hik-Central Master,HikCentral Master Lite,Hik-Central Pro |
Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
Day/Night Switch | Auto, Schedule, Manual |
Image Enhancement | BLC, 3D DNR |
Satellite Positioning | ;GPS (optional) |
Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface |
RS-232 | 1 RS-232 |
RS-485 | 1 RS-485 interfaces (half duplex, HIKVISION) |
USB | 1 USB 2.0 (5.0 V, 1.0 A) interface(s) |
Alarm | 6 output interfaces(5V, level signal) |
On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
Indicator | Supported |
Basic Event | HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception |
Coverage | Up to 4 lanes |
Trigger Mode | Video trigger |
Smart Function | Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Speeding, Low-Speed, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Emergency Lane Occupation, Smoke, Fire, Occupied by Animal.;;Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy. |
Operating System | Linux |
Power | DC 36 V ± 20%, 1.9 A, max. 70 W, 2-core terminal block |
Material | ;Aluminum alloy |
Dimension | 457 mm × 396 mm × 193.8 mm (17.99″ × 15.59″ × 7.63″) (L × W × H) |
Package Dimension | 535 mm × 500 mm × 390 mm (21.06″ × 19.68″ × 15.35″) (L × W × H) |
Weight | Approx. 9.4 kg (20.7 lb.) |
With Package Weight | Approx. 15.2 kg (33.5 lb.) |
Operating Condition | -30 °C to 70 °C (22 °F to 158 °F). Humidity 95% or less (non-condensing) |
Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing) |
General Function | Heartbeat, Password protection, NTP time adjustment, One-key reset, Watermark |
Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
RF | CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 302264-1 V1.1.1, EN 302 264-2 V1.1.1, EN IEC 62311:2020 |
EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
Safety | ;CE-LVD: EN 61010-1: 2010+A1: 2019,;CB: IEC 61010-1: 2010; IEC 61010-1: 2010/AMD1: 2016 |
Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
Protection | IK10: IEC 62262:2002,IP66: IEC 60529-2013 |
