- Product Model

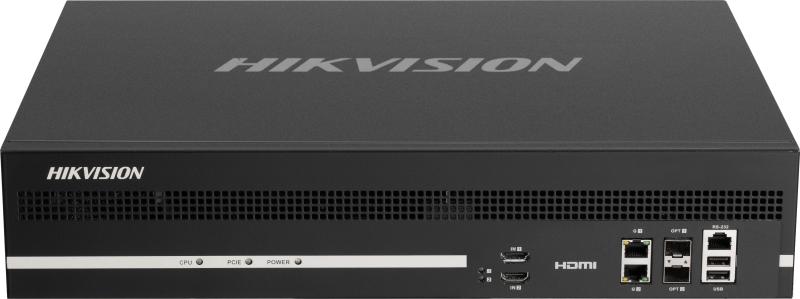

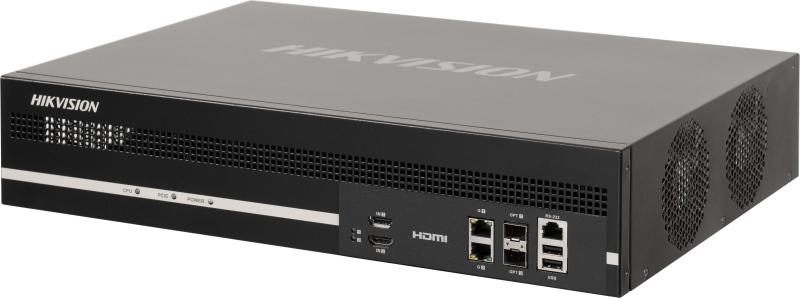

- Product ModelDS-6910UDI(C)
- Interface
- Network Interface
2 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45)
2 × 100 BASE-FX/1000 BASE-X port
Supports the self-adaption between the optical port and electrical port.
- Alarm Input Interface8 channels
- Alarm Out Interface8 channels
- Serial Interface1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port
- USB Interface2 × USB 2.0 port
- Power
- Power Interface100 VAC to 240 VAC, 50/60 Hz
- Device Power Consumption< 110 W
- Video Wall
- Video Walls1
- Video Wall Scale≤10
- Split WindowSupported
- Input Source Copy CapabilityNot supported
- Layers Per Screen4 × 1080p or 2 × 4K
- Layers per DeviceLayers Per Port × Output Port(s)
- Scenes64
- Plans100 view groups on the HCP client
- Window Division1, 2, 4, 6, 8, 9, 12, 16, 25, 36
- General
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity0％ RH to 90％ RH
- Net Weight≤ 6.4 kg (14.11 lb)
- Gross Weight≤ 7.8 kg (17.20 lb)
- Dimensions (W × H × D)440 mm × 88 mm × 321 mm (17.32 inch × 3.46 inch × 12.64 inch)
- Packing List1 × decoder, 1 × regulatory compliance and safety information manual, 1 × mounting bracket, 1 × power cord, 4 × pads, 1 × grounding cable
- Audio Input
- Audio Input Interfaces2
- Audio Input Interface TypeEmbedded HDMI
- Video Input
- Video Input Interfaces2
- Video Input Interface TypeHDMI 1.4
- Max. Input Resolution4K (only in odd-numbered port)
- Video Input Resolution
3840 × 2160@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1600 × 1200@60 Hz, 1280 × 960@60 Hz, 1680 × 1050@60 Hz, 1440 × 900@60 Hz, 1366 × 768@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz
Supports custom resolution.
For 60 Hz input, width ranges from 800 to 1920, and height ranges from 600 to 1200.
For 30 Hz input, width ranges from 800 to 3840, and height ranges from 600 to 2160.
Width: 4 alignment, height: 2 alignment.
- Video Encoding
- Video Encoding FormatH.264 (default), H.265
- Video Encoding Channels2
- Video Encoding Capability1 channel of 4K@30 Hz or 2 channels of 1080p@60 Hz
- Audio Encoding
- Audio Encoding FormatG722.1, G711_U, G711_A, AAC
- Video Output
- Video Output Interface TypeHDMI 1.4
- Video Output Interface(s)10
- Max. Output Resolution4K
- Video Output Resolution3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz
- Video Output Interface (BNC)3 channels of CVBS output (BNC port)
- Video Output Resolution (BNC)
PAL: 704 × 576@25 Hz
NTSC: 704 × 480@30 Hz
- Loading Capacity for Video Output to LED
Single port load: 2.6 MP,
Width: 144 – 4096,
Height: 144 – 2160,
Width must be a multiple of 2 and height must be a multiple of 2
- Video Decoding
- Video Decoding FormatH.264, H.265, Smart264, Smart265, MJPEG
- Video Decoding ResolutionUp to 32 MP
- Video Decoding Channel(s)160
- Video Decoding Capability
1) H.264/H.265 format:
Support decoding 5-channel 32 MP/24 MP, 10-channel 12 MP, 20-channel 8 MP, 25-channel 6 MP, 40-channel 4 MP, 80-channel 1080p, 160-channel 720p and lower resolution in real time.
Every four output ports (HDMI output ports 1 to 4 and 5 to 8) form a group, and HDMI output ports 9 and 10 form half a group. The 2.5 groups share the decoding capabilities. Each group supports up to 4-channel smart decoding or 4-channel encrypted stream decoding. The smart decoding allows the device to decode the smart alarm events from the network cameras.
2) MJPEG format: 12-channel of 1080p and lower resolution
3) HIK264 format: 6-channel of 720p and lower resolution
- Audio Output
- Audio Output Interface(s)10
- Audio Output Interface TypeEmbedded HDMI audio output port or independent DB15-to-BNC audio output port
- Audio Decoding
- Audio Decoding FormatG711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
