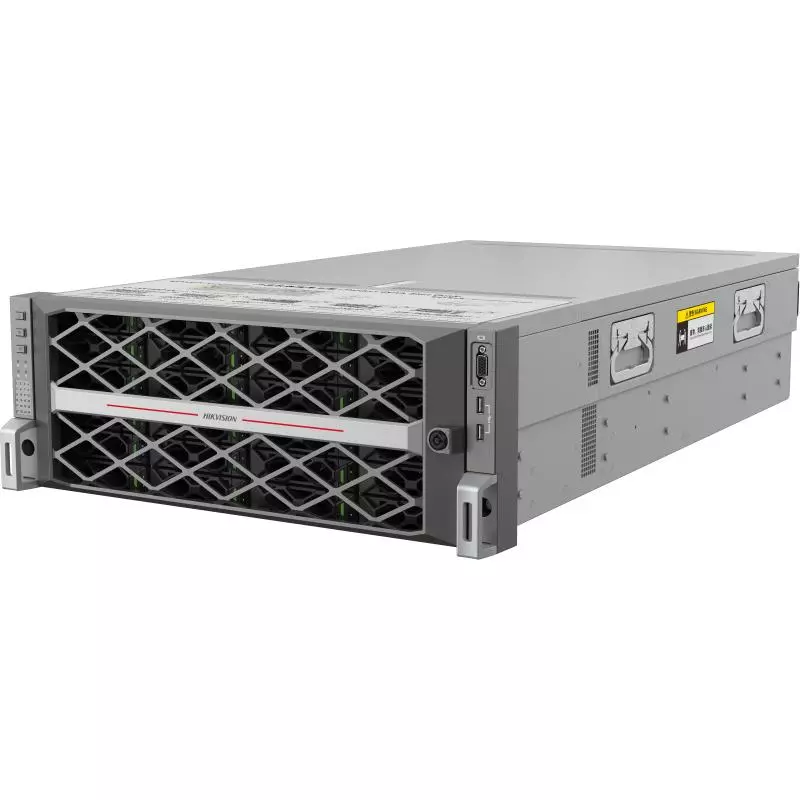

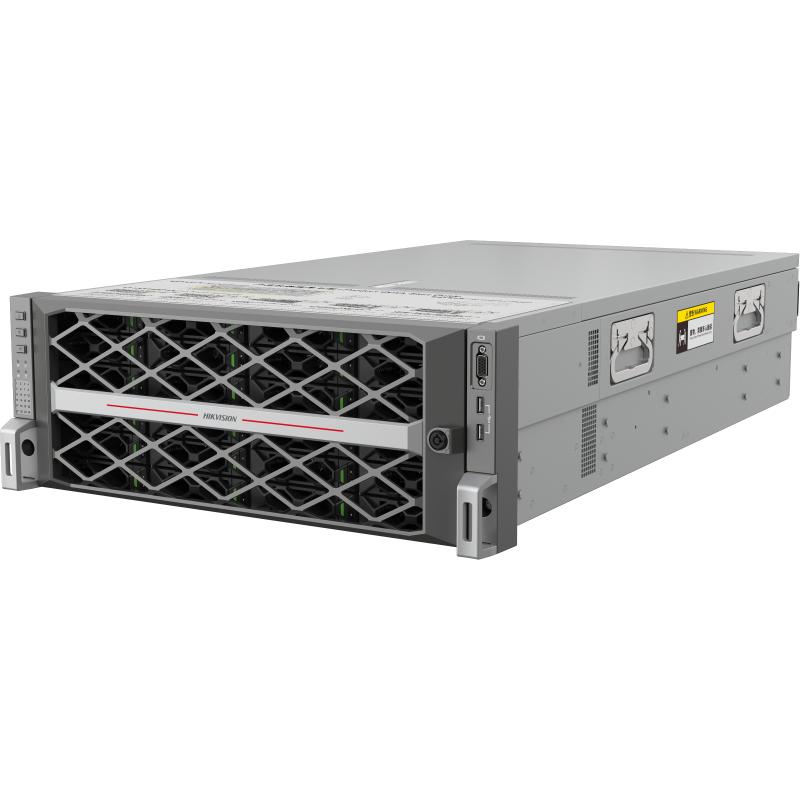

24 yuvalı, ultra yüksək tutumlu, qənaətcil saxlama yeri
24 yuvalı, ultra yüksək tutumlu, qənaətcil saxlama yeri
Sorğu əsasında
Qiymət sorğusu- Performance Parameter
- Video Direct Storage (Timed Recording)Incoming: 1024-channel (bandwidth: 2048 Mbps)
Outgoing: bandwidth: 2048 Mbps
Playback: 200-channel (bandwidth: 400 Mbps) - Video Direct Storage (Event Recording)Incoming: 200-channel (bandwidth: 400 Mbps)
Outgoing: bandwidth: 2048 Mbps
Playback: 200-channel (bandwidth: 400 Mbps) - Video Direct Storage (Recording Backup)Incoming: 512-channel (bandwidth: 2048 Mbps)
Outgoing: bandwidth: 2048 Mbps
Playback: 200-channel (bandwidth: 400 Mbps) - Picture Direct StorageIncoming: bandwidth: 2048 Mbps (512 images/s @ 500KB/image)
Outgoing: bandwidth: 400 Mbps
- Device Maintenance
- Alarm LinkageSound, notifying surveillance center, sending email, recording linkage
- Anomaly AlarmStorage exception, network exception, power exception, temperature exception, fan malfunction
- Log DownloadingDownload on web page
- Network
- Network ProtocolHTTP; HTTPS; IPv4; SMTP; NTP; DHCP; DNS; SNMP; SADP
- InteroperabilityONVIF (Profile S,T); ISAPI; SDK
- BrowserChrome; Firefox; Edge; Safari
- Network ModeActive-Backup; XOR Mode; 802.3ad; Self-Adaptive Load Balancing (Virtualized)
- General Specification
- Chassis4U
- Power Supply100-240 VAC, 50/60Hz, 2 redundant power supplies(expandable to 4)
- Power consumptionWorking(all HDDs connected): ≤ 700W(2389 BTU/hr)
Working(without HDD): ≤ 276W(942 BTU/hr)
Rated: ≤ 800W(2730 BTU/hr) - FanIntelligent speed regulation fan
- Net Weight39 kg (85.98 lb)
- Gross Weight55 kg (121.25 lb)
- Dimension (W × H × D)447 × 175 × 787 mm (17.6 × 6.88 × 30.96 in)
- Working temperature5 °C to 40 °C (+41 °F to +104 °F)
- Working humidity20% to 80%RH (non-condensing/frozen)
- Storage temperature-20 °C to 70 °C (-4 °F to +158 °F)
- Storage humidity5% to 90%RH (non-condensing/frozen)
- InstallationStandard 19 inch rack
- LanguageEnglish, Vietnamese, Thai, Turkish, Arabic, Spanish, Portuguese, Russian, Chinese
- VMS SupportHCP, HCM
- SnapshotSupported
- SlideProvided as accessory
- CertificationsCB,CE-EMC,CE-LVD,RCM,Transport Identification
- System
- Main Processor64-bit multi-core processor
- Operating SystemLINUX FAROS
- Operating InterfaceWeb
- ControllerSingle controller
- Cache16 GB by default (extendable to 128 GB)
- System DiskSupports hot-swappable system disks(RAID 1 is optional)
- Failover
- FailoverN+1
- Video Protection
- BackupRecording Backup
- Video ProtectionANR
- Audio and Video
- Access Channel1024
- Multi-Screen DisplayCustomized display, max 16-channel web live view
- Third-Party Camera AccessONVIF; RTSP
- Compression Standard
- Video CompressionH.265+; H.265; H.264+; H.264
- Audio CompressionG.711ulaw; G.711alaw; G.722; G.726; AAC; MP2L2
- Recording Playback
- Multi-Channel PlaybackWeb playback, max 16-channel playback
- Recording ManagementRecording modes: continuous, event-based, motion detection. Supports locking key video
- Playback Function1. Play, pause, stop, fast forward, fast backward, reverse playback, single frame
2. Full screen, backup (clip/file), capture, digital zoom, audio on/off, aspect ratio, window split
- Storage
- RAIDRAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60, RAID5(VRAID), RAID6(VRAID), Hot-Spare
- Storage PoolVideo and Picture pool management
- HDD slot24
- HDD Interface/CapacitySATA/4 TB, 6 TB, 8 TB, 10 TB, 16 TB, 20 TB
- HDD Hot-SwappingSupported
- HDD supportEnterprise Hard Disk
- Disk ManagementDisk inspection, smart alarm and repair
- Port
- HDMI1 × Rear
- VGA1 × Front
- COM1 × RS-232 serial interface
- USB2 × USB 2.0 (Front)
2 × USB 3.0 (Rear) - Management Network Interface1 × 1G Ethernet interface
- Data Network Interface8 × 2.5G Ethernet interface
2 × 10G Ethernet interface - IPMISupported
- Network Port Extension4 × GbE or 2 × GbE or 1 × GbE or 2 × 10GbE (optional)
- IndicatorHdd indicator, power indicator, location indicator, status indicator, network indicator, alarm indicator
