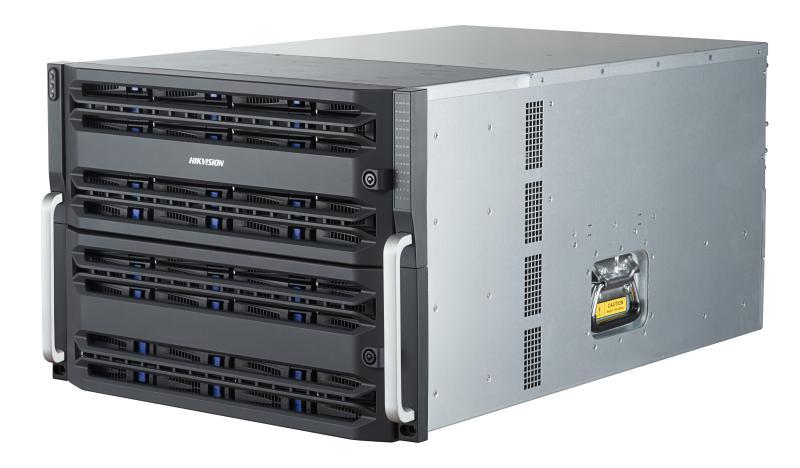

Hikvision DS-A81072S

Recording mode: video (2 Mbps) + picture

512-ch

Picture performance

200

Video performance

512

Protocol

iSCSI, RTSP, ONVIF, PSIA

USB

2*USB3.0，1*USB2.0

Data network interface

4, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable)

MiniSAS interface

1

COM

1

Management network interface

1, 1000M Ethernet interface

HDD slot

72

Interface/capacity

SATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB

Hot-swapping

Supported

HDD support

RAID(Enterprise Hard Disk)

RAID

RAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare

Structure

Controller Structure

Processor

64-bit multi-core processor

Cache

8 GB (extendable to 64 GB)

Disk management

Disk inspection, alarm and repair

Logical volume management

iSCSI volume, video volume management

Recording mode

Timing recording, manual recording, alarm recording

Video protection

Lock key video, N+1 service protection, ANR, video loss detection and alarm

Searching mode

Search by time and event

Downloading mode

Quick download, batch download, download by segment, download by merging

Management mode

Web-based GUI, serial port CLI, centralized management of multiple devices

Alarm mode

Sound, light, email, message, web page

Log downloading

Download on web page

HDD Model

Hikvision,HK7216AH,16T;;Hikvision,HK7210AH,10T;;Hikvision,HK728TAH,8T;;Hikvision,HK726TAH,6T;;Hikvision,HK724TAH,4T;;Hikvision,DS160HKAI-VX1,16T;;Hikvision,DS80HKAI-VX1,8T;;Hikvision,DS60HKAI-VX1,6T;;Hikvision,DS40HKAI-VX1,4T;

Power supply

Redundant 1200W

Chassis

8U (19-inch height)

Consumption(with HDDs)

Working: ≤1153

Environment temperature

Working: +5 °C to +40 °C (41 °F to 104 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)

Humidity

Working: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)

Dimensions(W × D × H)

486 x 776 x 344 mm (19.1 x 26.9 x 13.8 in)

Weight (without HDDs)

≤ 53kg
