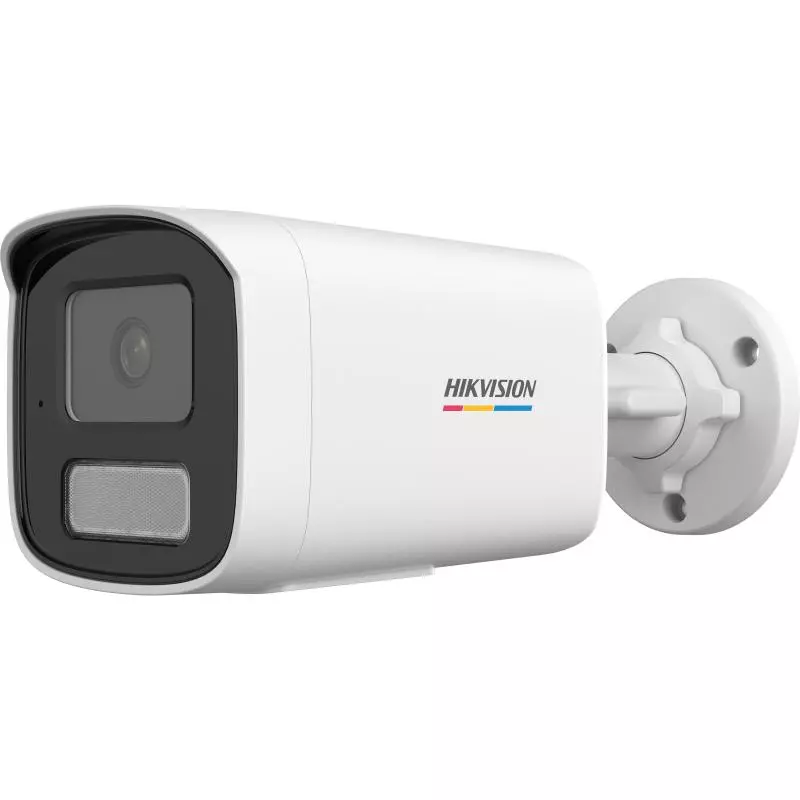

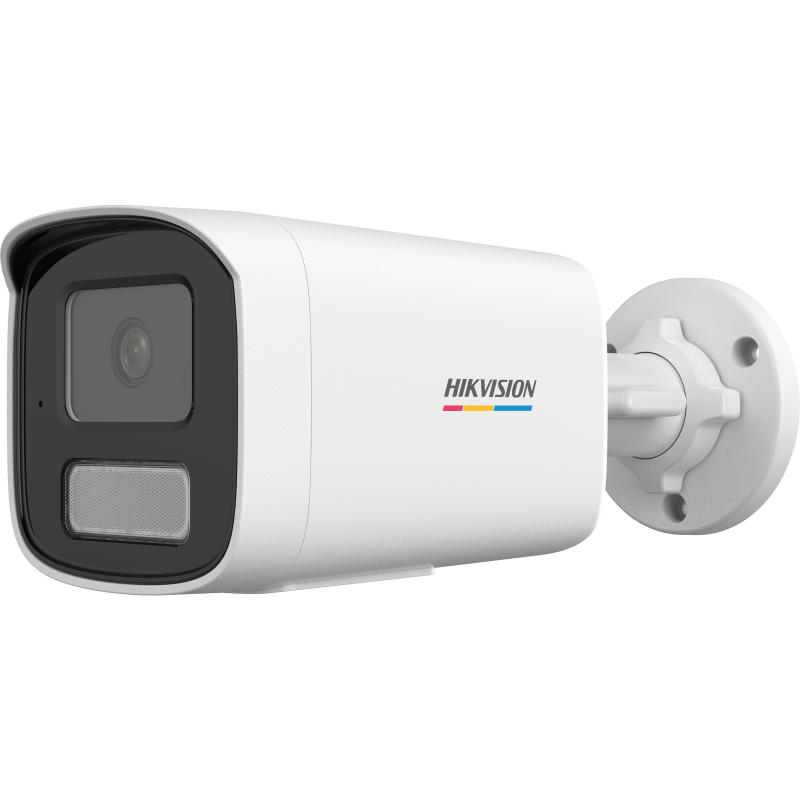

4 MP MD 2.0 Sabit Bullet Şəbəkə Kamerası
4 MP MD 2.0 Sabit Bullet Şəbəkə Kamerası
- Camera
- Image Sensor
1/2.4″ Progressive Scan CMOS
- Max. Resolution
3200 × 1800
- Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time
1 s to 1/100,000 s
- Day & Night
IR cut filter
- Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
- Lens
- Lens Type
Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130°
4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105° - Lens Mount
M12
- Iris Type
Fixed
- Aperture
F1.0
- Depth of Field
2.8 mm: 1.9 m to ∞
4 mm: 2.4 m to ∞
- O2DCPVS
- DORI
2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type
IR,White Light
- Supplement Light Range
Up to 50 m
- Smart Supplement Light
Yes
- IR Wavelength
850 nm
- Video
- Main Stream
50 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) - Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate
32 Kbps to 16 Mbps
- H.264 Type
Baseline Profile,Main Profile,High Profile
- H.265 Type
Main Profile
- Bit Rate Control
CBR,VBR
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Audio
- Audio Type
Mono sound
- Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate
8 kHz/16 kHz
- Environment Noise Filtering
Yes
- Network
- Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live View
Up to 6 channels
- API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Client
iVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch
Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR)
120 dB
- SNR
≥ 52 dB
- Image Enhancement
BLC,HLC,3D DNR
- Privacy Mask
4 programmable polygon privacy masks
- Transducer
- Transducer Type
NA
- Detection Angle
NA
- Detection Range
NA
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB - Built-in Microphone
Yes,1 built-in microphone
- Built-in Speaker
-LIU、-LIUF: NA
-LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB - Audio
NA
- Alarm
NA
- Reset Key
-LIU、LIU/S(L)(RB)：NA
-LIUF、LIUF/S(L)(RB)：YES
- Event
- Basic Event
Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- Linkage
-LUF/S(L)(RB): Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture
-LU: Upload to FTP, notify surveillance center, send email, trigger capture
- General
- Power
-LIU/-LIUF: 12 VDC ± 25%, 0.57 A, max. 6.84 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.3 W,
-LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.73 A, max. 8.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.7 W - Material
Front cover: metal, body: plastic, bracket: metal
- Dimension
81 mm × 83.7 mm × 211 mm (3.2″ × 3.3″ × 8.3″)
- Package Dimension
260 mm × 125 mm × 125 mm (10.2″ × 5.0″ × 5.0″)
-
-LIU: Approx. 440 g (0.97 lb.)
-LIUF: Approx. 470 g (1.04 lb.)
-LIU(F)/SL: Approx. 520 g (1.15 lb.)
-LIU(F)/SRB: Approx. 520 g (1.15 lb.) - With Package Weight
-LIU: Approx. 580 g (1.28 lb.)
-LIUF: Approx. 620 g (1.37 lb.)
-LIU(F)/SL: Approx. 650 g (1.43 lb.)
-LIU(F)/SRB: Approx. 650 g (1.43 lb.) - Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
English, Ukrainian
- General Function
Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light
-LIU、-LIUF：NA
-LIU(F)/SL：White Light
-LIU(F)/SRB：Red and Blue Light
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 - Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP67: IEC 60529-2013
