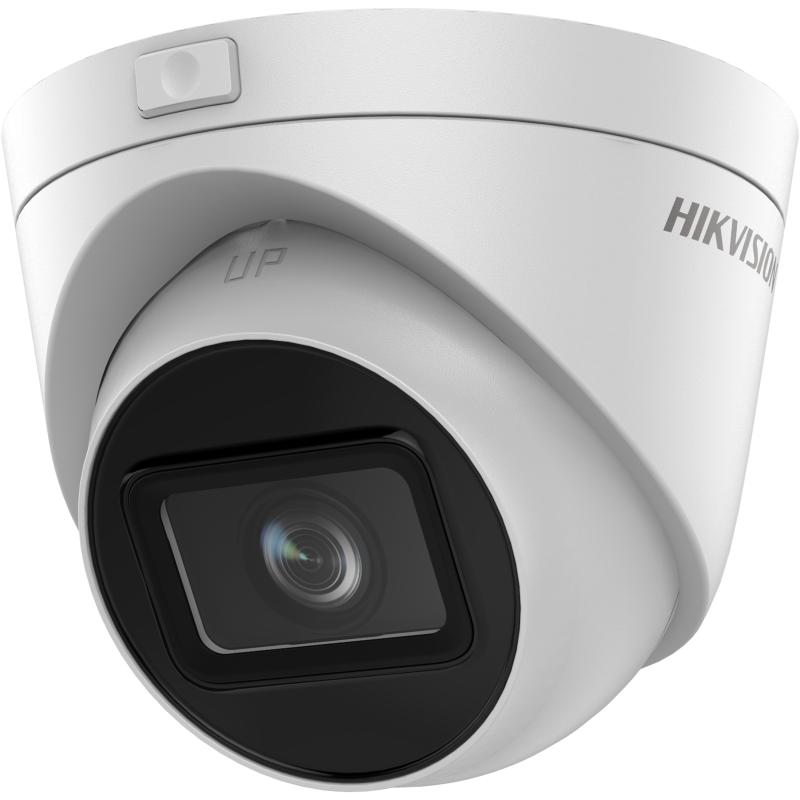

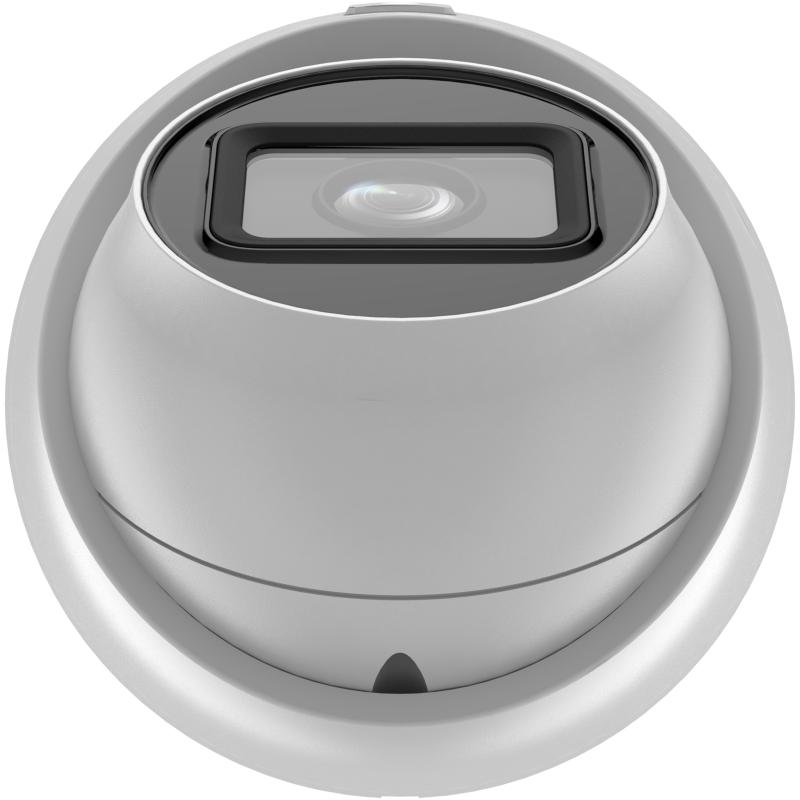

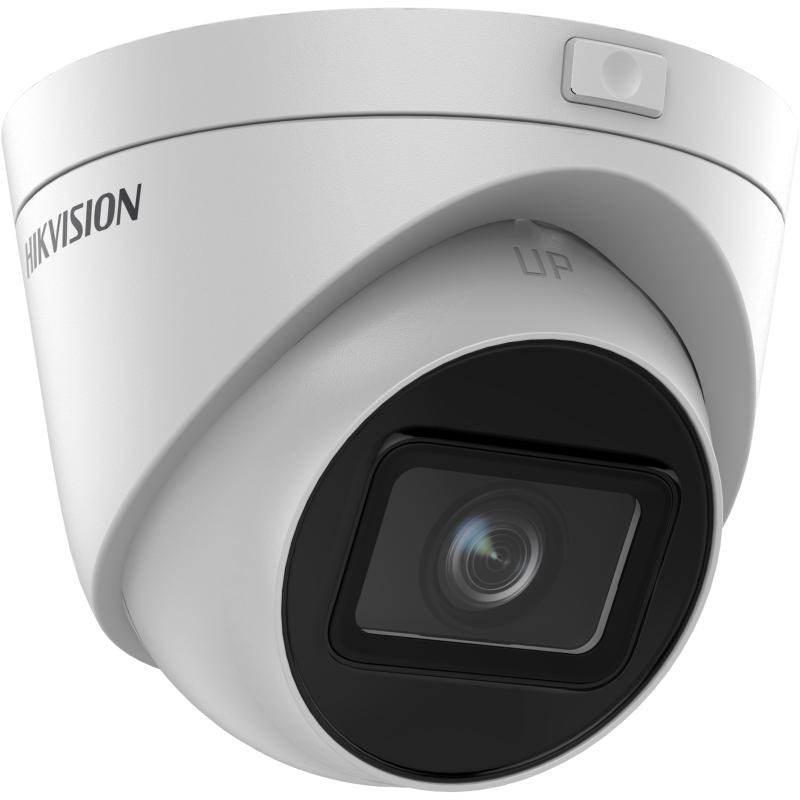

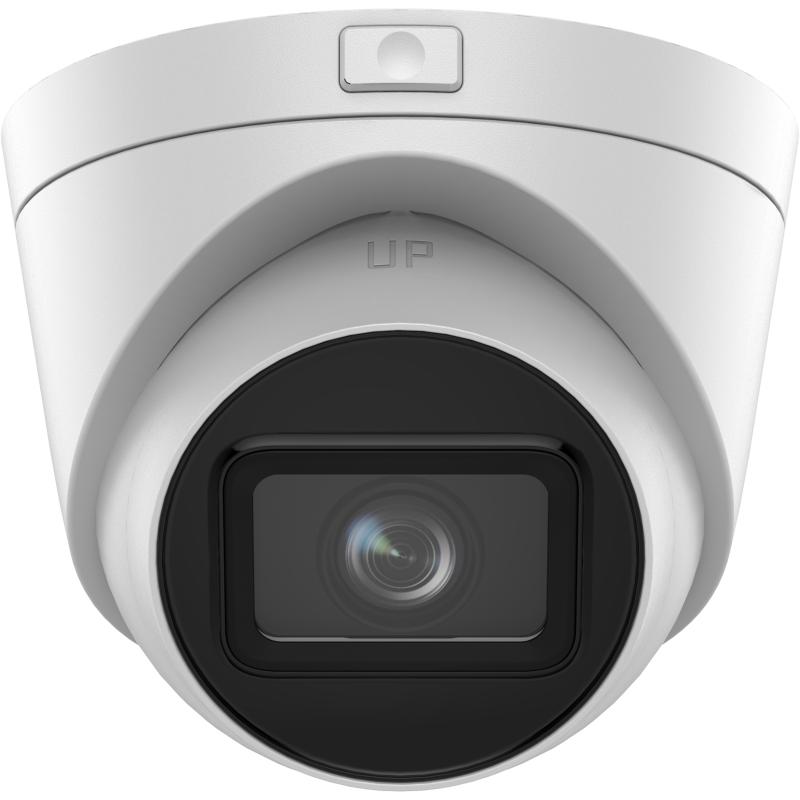

Hikvision DS-2CD1H23G2-IZ(S)

Image Sensor

1/2.9″ Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°

Lens Mount

Ø14

Iris Type

Fixed

Aperture

F1.6

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region(s) for main stream

Audio Compression

-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

-S: 8 kHz/16 kHz

Environment Noise Filtering

-S: Yes

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,;Local service: Chrome 57.0+, Firefox 52.0+

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC,HLC,3D DNR

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

-S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;-S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

-S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

;Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)

Power

12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,;PoE:802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W

Dimension

;Ø129.4 mm × 116.4 mm (Ø5.1 × 4.6″)””

Package Dimension

170 mm × 170 mm × 150 mm (6.7″” × 6.7″” × 5.9″”)

Weight

Approx. 605 g (1.3 lb.)

With Package Weight

Approx. 880 g (1.9 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English
