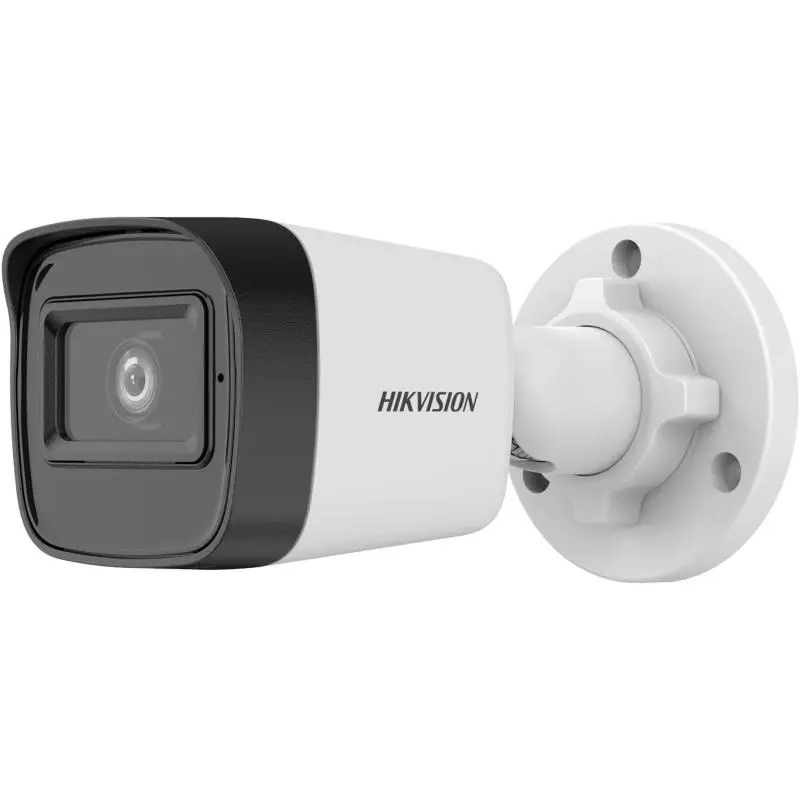

4 MP MD 2.0 Sabit Bullet Şəbəkə Kamerası
4 MP MD 2.0 Sabit Bullet Şəbəkə Kamerası
- Camera
- Image Sensor
1/2.7″ Progressive Scan CMOS
- Max. Resolution
2560 × 1440
- Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time
1/3 s to 1/100,000 s
- Day & Night
IR cut filter
- Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type
Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 135°
4 mm, horizontal FOV 89°, vertical FOV 48°, diagonal FOV 105° - Lens Mount
M12
- Iris Type
Fixed
- Aperture
F2.2
- Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
- O2DCPVS
- DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
- Illuminator
- Supplement Light Type
IR
- Supplement Light Range
Up to 20 m
- Smart Supplement Light
Yes
- IR Wavelength
850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
24 fps (1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360) - Video Bit Rate
32 Kbps to 8 Mbps
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264 - H.264 Type
Baseline Profile,Main Profile,High Profile
- H.265 Type
Main Profile
- Bit Rate Control
CBR,VBR
- Region of Interest (ROI)
1 fixed region for main stream
- Network
- API
ONVIF (Profile S, Profile T),ISAPI,SDK
- Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
- Simultaneous Live View
Up to 6 channels
- Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user - Client
iVMS-4200,Hik-Connect
- Web Browser
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Wide Dynamic Range (WDR)
Digital WDR
- SNR
≥ 52 dB
- Privacy Mask
1 programmable polygon privacy mask
- Day/Night Switch
Day,Night,Auto,Schedule
- Image Enhancement
BLC,HLC,3D DNR
- Image Settings
Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-in Microphone
Yes,1 built-in microphone
- Event
- Basic Event
Motion detection,exception
- Linkage
Notify surveillance center
- General
- Power
PoE: IEEE 802.3af, Class 0, max. 6.5 W
- Material
Plastic
- Dimension
138.8 mm × 60.9 mm × 57.9 mm (5.5″ × 2.4″ × 2.3″)
- Package Dimension
163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
-
Approx. 160 g (0.4 lb.)
- With Package Weight
Approx. 270 g (0.6 lb.)
- Storage Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- Language
English, Ukrainian
- General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
KC: KN32: 2015, KN35: 2015 - Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 - Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 - Protection
IP67: IEC 60529-2013
