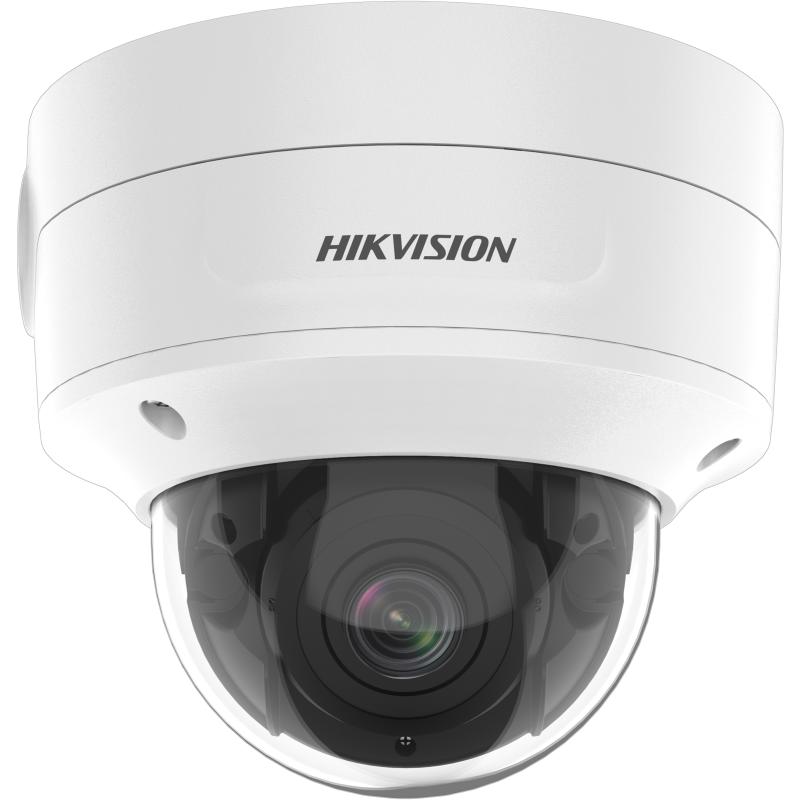

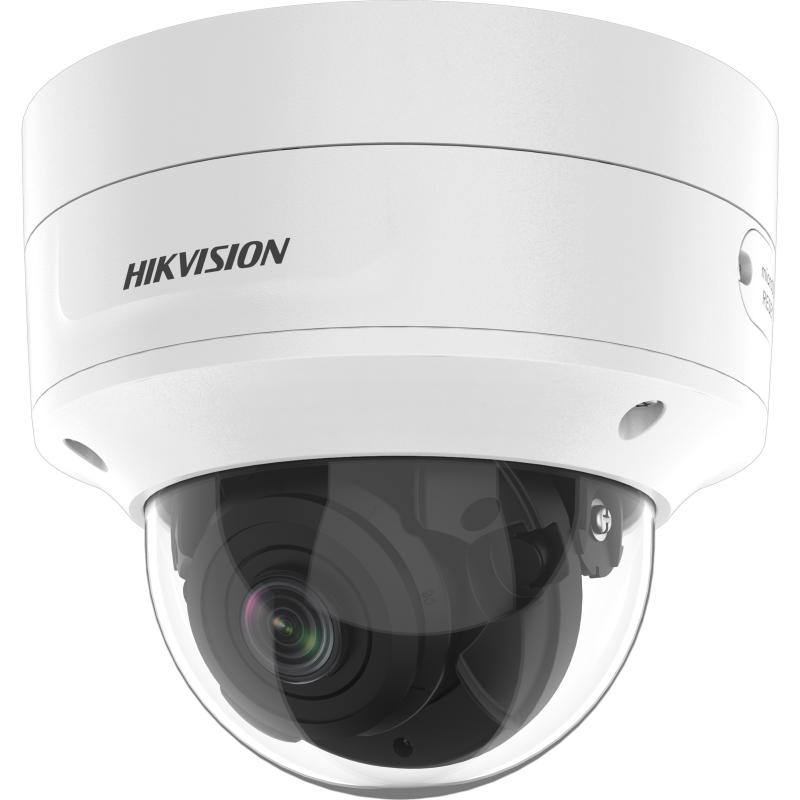

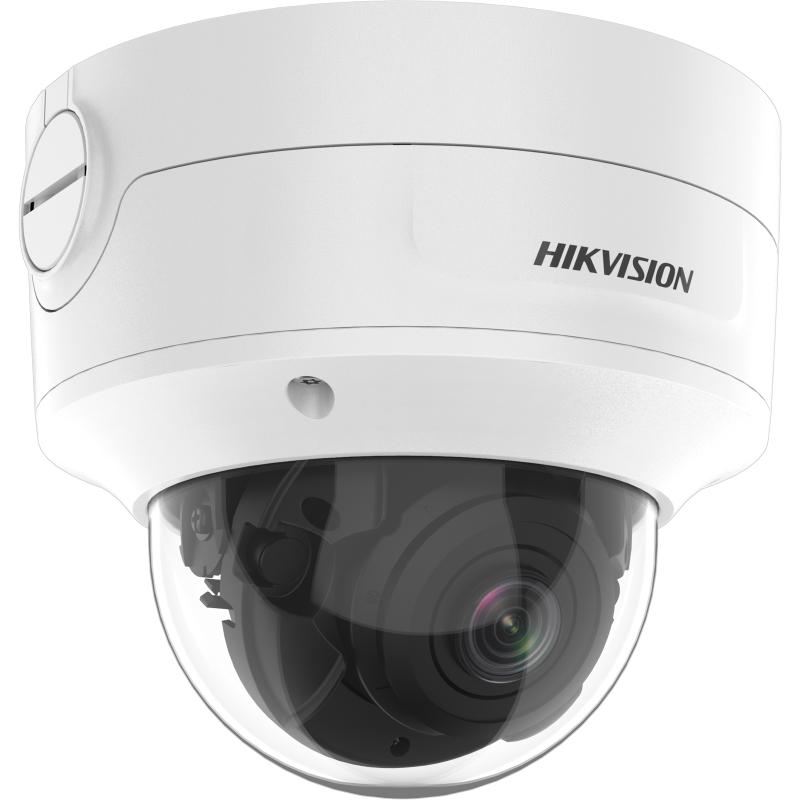

Hikvision DS-2CD2747G2H-LIPTRZS
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor
1/1.8" Progressive Scan CMOS
- Max. Resolution
3840 × 2160
- Min. Illumination
Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time
1/3 s to 1/100,000 s
- Day & Night
IR cut filter
- Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens Type
Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV
2.8 to 12 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°
- Lens Mount
Ø14
- Iris Type
Fixed
- Aperture
F1.4
- Pixel Density
- DORI
2.8 to 12 mm:
Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
- Illuminator
- Supplement Light Type
IR
- Supplement Light Range
Up to 40 m
- Smart Supplement Light
Yes
- IR Wavelength
850 nm
- Video
- Main Stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) - Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings. - Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings. - Video Bit Rate
32 Kbps to 16 Mbps
- H.264 Type
Baseline Profile/Main Profile/High Profile
- H.265 Type
Main Profile
- Bit Rate Control
CBR/VBR
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region of Interest (ROI)
1 fixed region for main stream and sub-stream
- Target Cropping
Yes
- Audio
- Audio Type
Mono sound
- Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering
Yes
- Network
- Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Simultaneous Live View
Up to 6 channels
- API
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/Host
Up to 32 users. 3 user levels: administrator, operator and user
- Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client
iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch
Yes
- Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch
Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR)
120 dB
- SNR
≥ 52 dB
- Image Enhancement
BLC, HLC, 3D DNR
- Interface
- Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in micro SD slot, up to 256 GB
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium - Alarm
1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset Key
Yes
- Event
- Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection - Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- Deep Learning Function
- Face Capture
Yes
- General
- Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, two-core terminal block
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W - Dimension
Ø153.5 mm × 133.2 mm (Ø6" × 5.2")
- Package Dimension
244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
-
Approx. 1080 g (2.4 lb.)
- With Package Weight
Approx. 1671 g (3.7 lb.)
- Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian - General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection
IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
