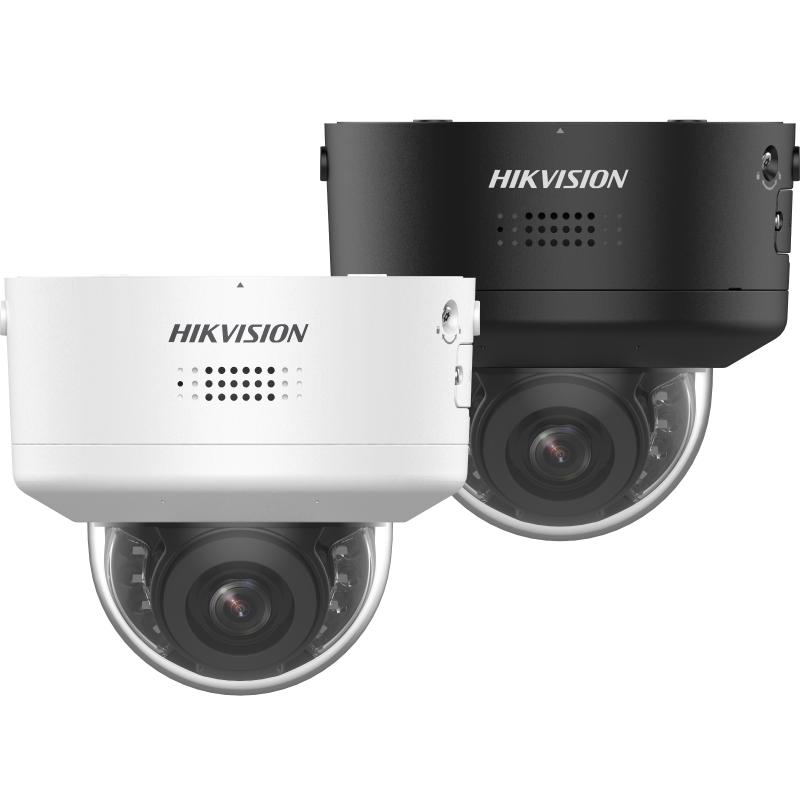

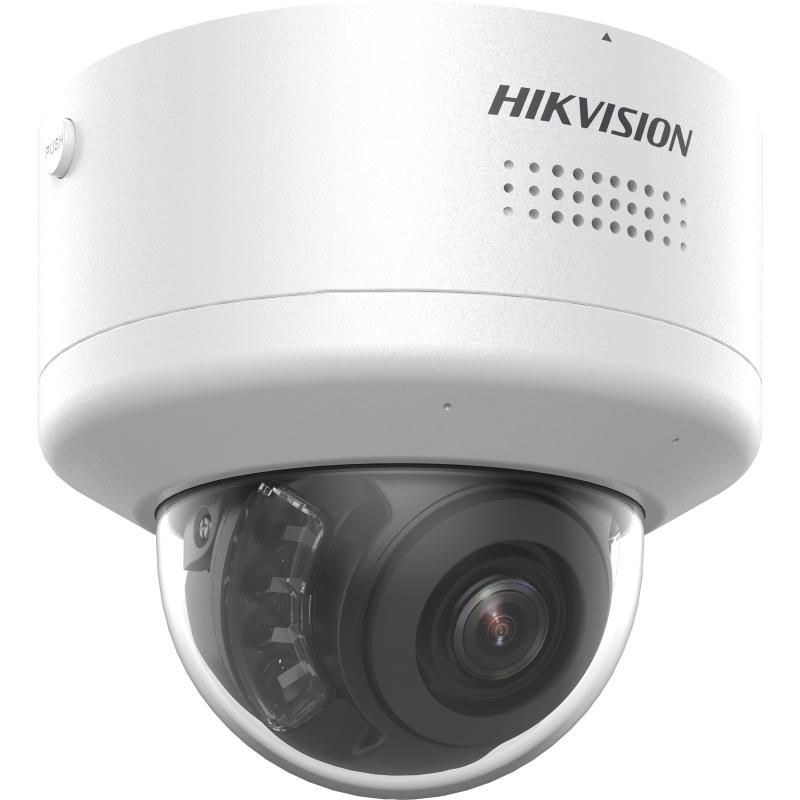

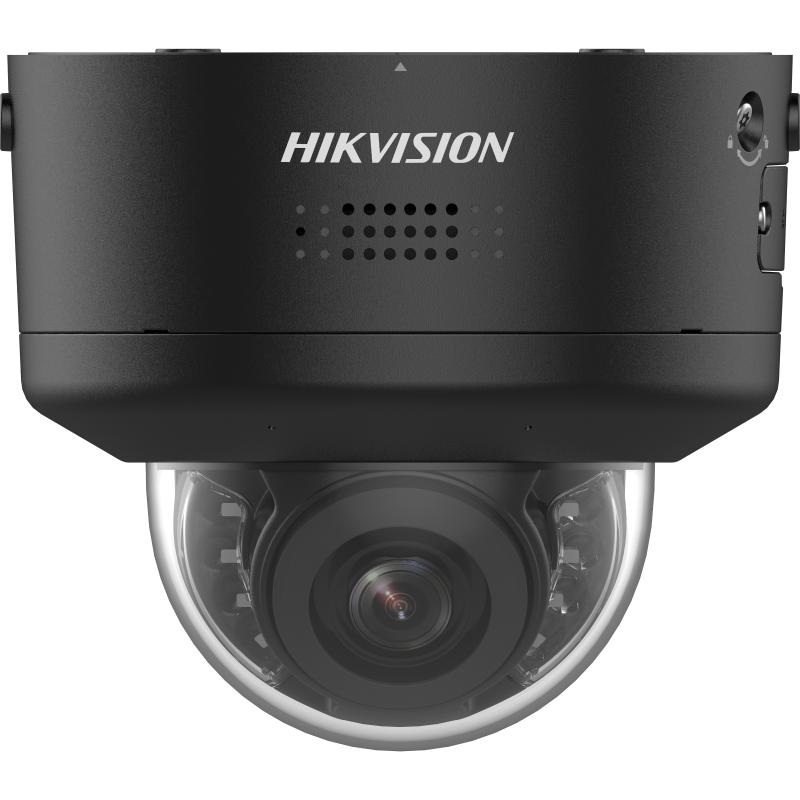

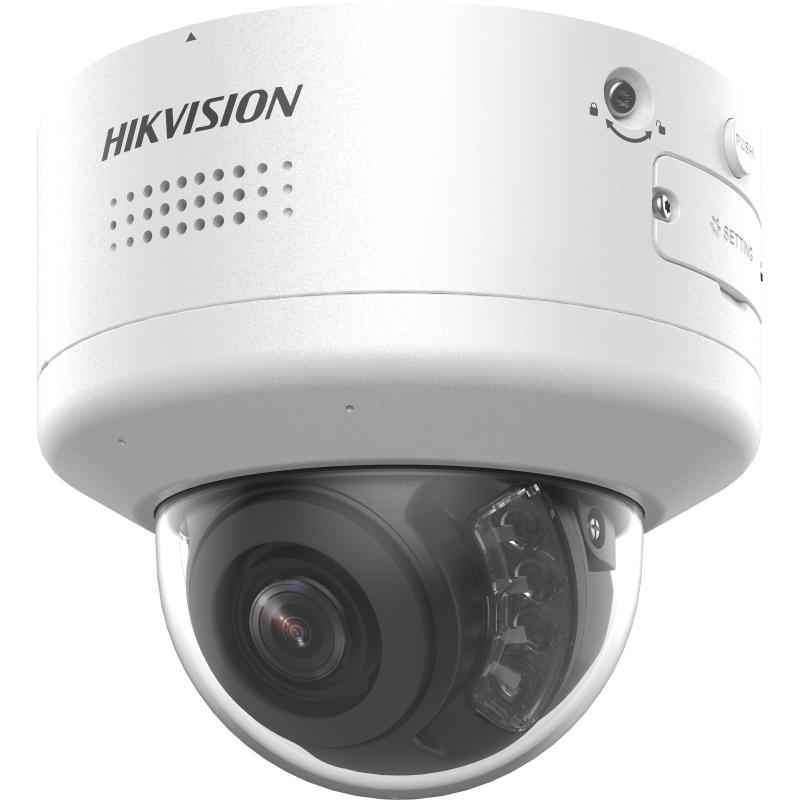

Hikvision DS-2CD2787G2H-LIPTRZS2U/SL

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Remote adjustment (Max. 1,000 cycles);Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°

Lens Mount

Integrated

Iris Type

Fixed

Aperture

Max. F1.2

Depth of Field

1 m to ∞

DORI

Wide: D: 89 m, O: 35 m, R: 18 m, I: 9 m;Tele: D: 220 m, O: 87 m, R: 44 m, I: 22 m

Supplement Light Type

IR,White Light

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Main Stream

50 Hz: ;25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: ;24 fps (3840 × 2160);30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: ;25 fps (1280 × 720, 640 × 480, 640 × 360) ;60 Hz: ;30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: ;10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: ;10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264,;*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View

Up to 6 channels

API

ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 11,;Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,;Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

SNR

≥ 52 dB

Wide Dynamic Range (WDR)

130 dB

Privacy Mask

4 programmable polygon privacy masks

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Speaker

1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.

Audio

Built-in Microphone: Arrayed dual-microphone,;1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Smart Event

Scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing

Face Capture

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

Power

12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,;PoE: IEEE 802.3at, Class 4, max. 18 W

Material

Metal

Dimension

Ø155 mm × 140.4 mm (Ø6.10″ × 5.23″)

Package Dimension

206 mm × 206 mm × 230 mm (8.1″ × 8.1″ × 9.1″)

Weight

Approx. 820 g (1.8 lb.)

With Package Weight

Approx. 1200 g (2.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Flashing Light

White Light

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7,;KC: KN32: 2015, KN35: 2015

Safety

;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017,;LOA: IEC/EN 60950-1

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU, ;Reach: Regulation (EC) No 1907/2006

Protection

IK10: IEC 62262:2002,IP66: IEC 60529-2013
