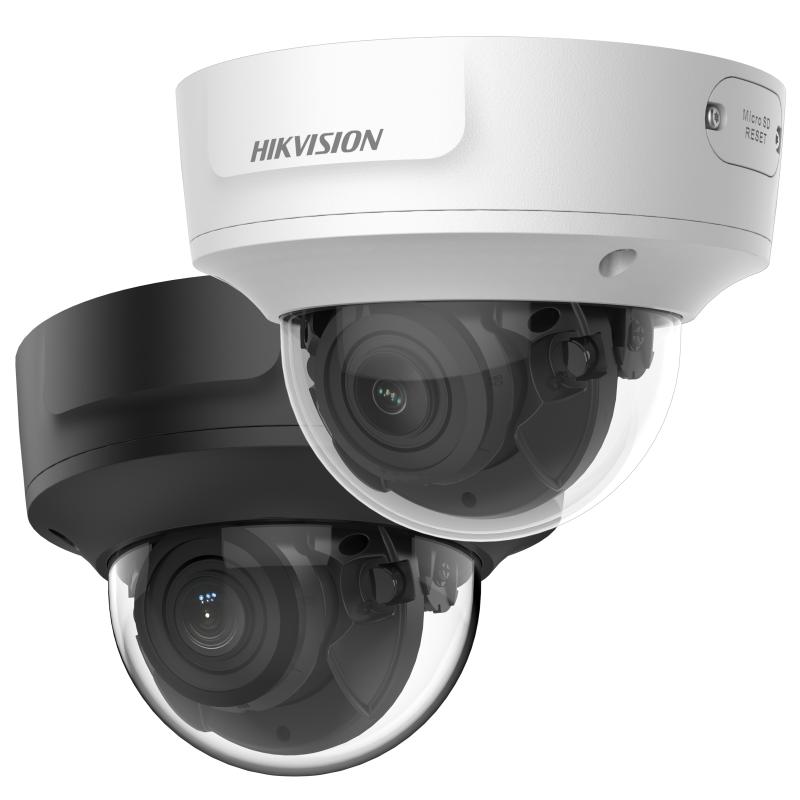

Hikvision DS-2CD2747G2H-LIPTRZS
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor
1/3″ Progressive Scan CMOS
- Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed
1/3 s to 1/100,000 s
- Slow Shutter
Yes
- Wide Dynamic Range
120dB
- Day & Night
IR Cut Filter
- Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focus
Auto
- Lens Type
2.8 to 12 mm, Motorized
- FOV
horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
- Aperture
F1.6
- Lens Mount
Φ14
- Aperture Type
Fixed
- Illuminator
- IR Range
Up to 30 m
- Wavelength
850nm
- Video
- Max. Resolution
2688 × 1520
- Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate
32 Kbps to 16 Mbps
- H.264 Type
Main Profile/High Profile
- H.265 Type
Main Profile
- H.264+
Main stream supports
- H.265+
Main stream supports
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Audio
- Environment Noise Filtering
Yes
- Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression
G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live View
Up to 6 channels
- API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host
Up to 32 users,3 levels: Administrator, Operator and User
- Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client
iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Wi-Fi
- Encryption Mode
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Image
- Day/Night Switch
Day/Night/Auto/Schedule/Triggered by alarm in (-S)
- Target Cropping
No
- DNR
3D DNR
- Image Enhancement
BLC/3D DNR/HLC
- Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio
-S: 1 input (line in/mic.in), 1 output (line out), mono sound, terminal block
- Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset
Yes
- Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
- Video Output
1 Vp-p Composite Output(75Ω) (For adjustment only)
- Event
- Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, intrusion detection, face detection
- Face Detection
Yes
- General
- Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version
5.6.3
- Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply
12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
- Power Consumption and Current
12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
- Camera Dimension
Camera: Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″)
With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″) - Camera Weight
Camera: Approx. 830 g (1.8 lb.)
With Package: Approx. 1460 g (3.2 lb.)
- Approval
- Protection
IK10, IP67
