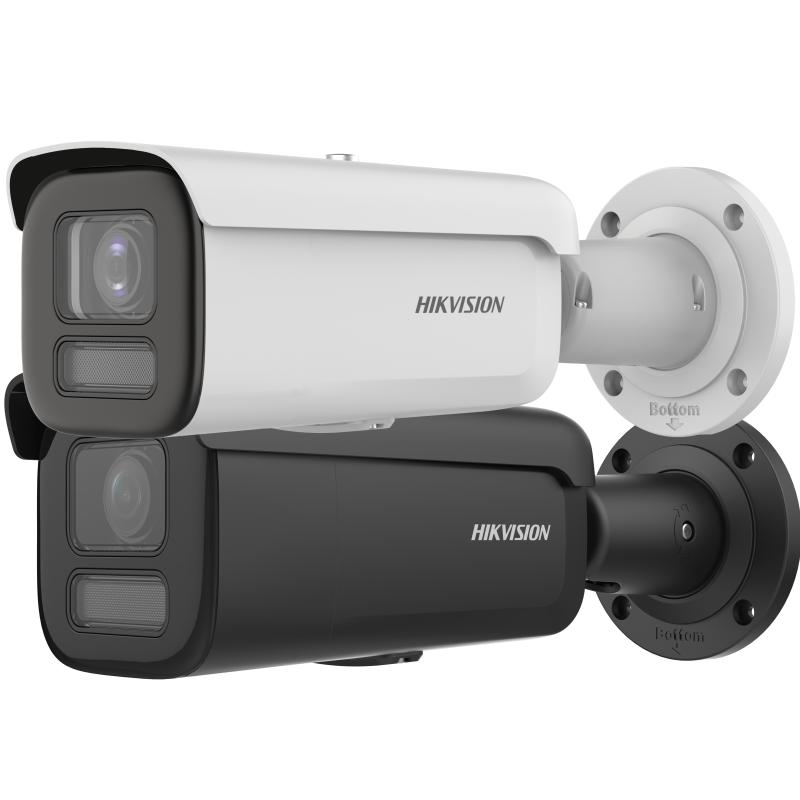

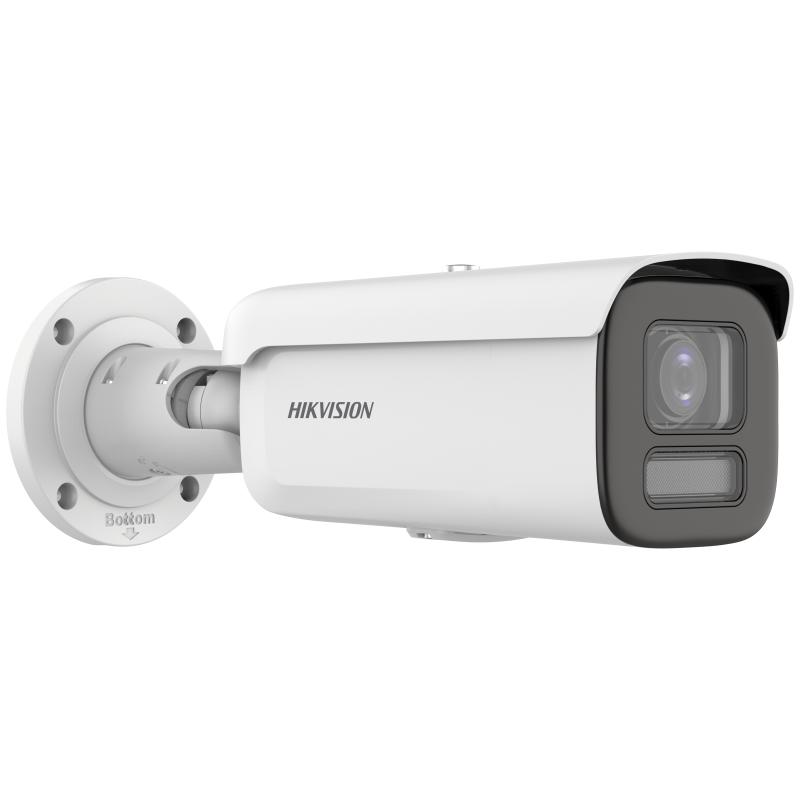

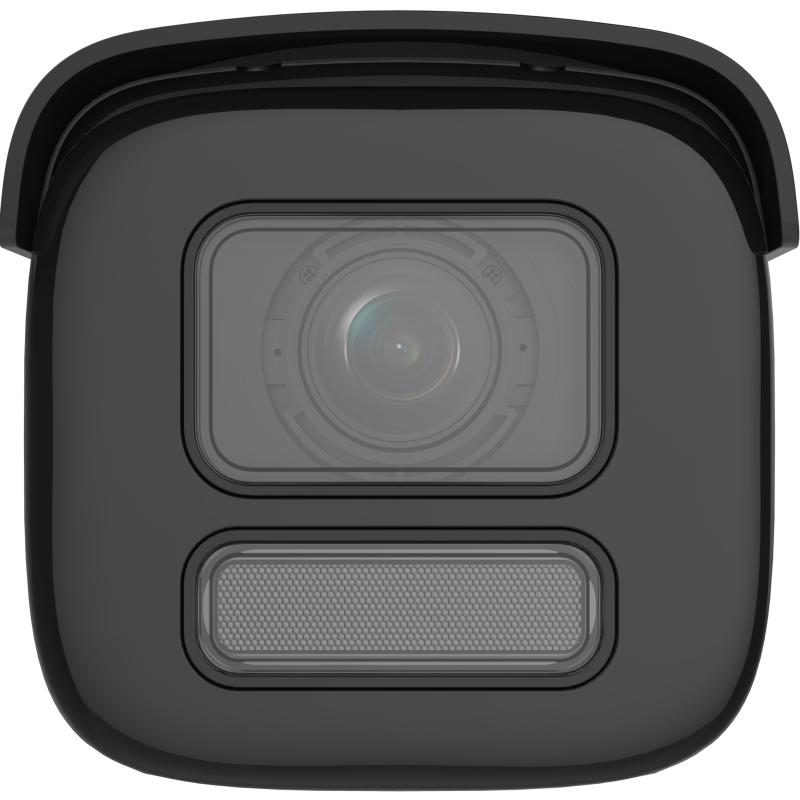

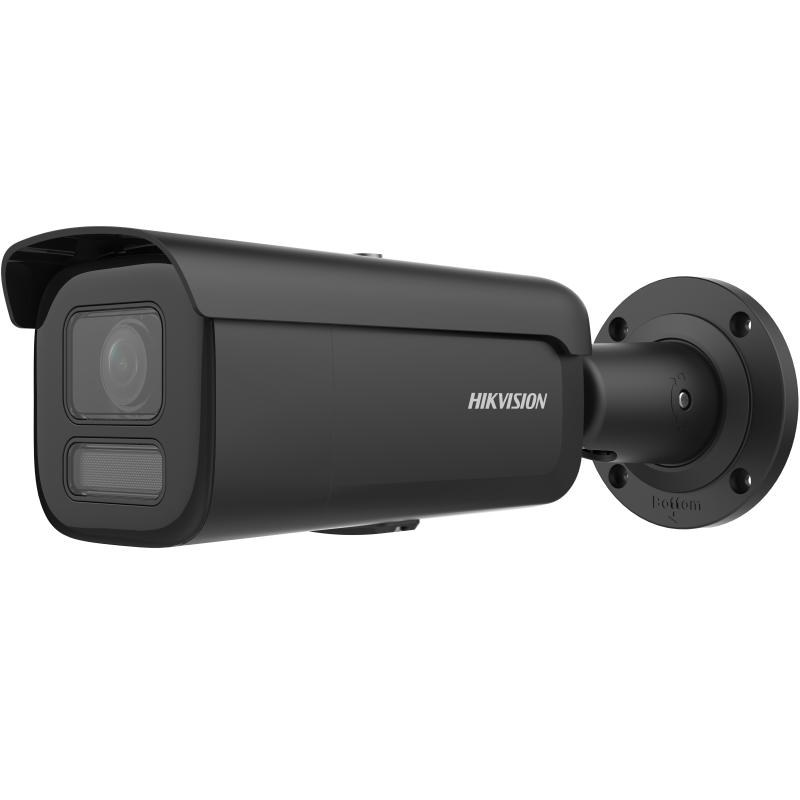

Hikvision DS-2CD2687G2T-LZS

Image Sensor

1/1.8″ Progressive Scan CMOS

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens Type

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 103.3° to 40°, vertical FOV 52.7°to 22.3°, diagonal FOV 127.9°to 46.1°

Lens Mount

Integrated

Focus

Auto,Semi-auto,Manual

Iris Type

DC iris

Aperture

Max. F1.0

Depth of Field

2.4 m to ∞

DORI

Wide: D: 96 m, O: 38.1 m, R: 19.2 m, I: 9.6 m;Tele: D: 160 m, O: 63.5 m, R: 32.0 m, I: 16 m

Supplement Light Type

White Light

Supplement Light Range

Up to 60 m

Smart Supplement Light

Yes

Main Stream

50 Hz: ;25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: ;24 fps (3840 × 2160);30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) ;60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,;Sub-stream: H.265/H.264/MJPEG,;Third stream: H.265/H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region(s) for main stream and sub-stream

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

User/Host

Up to 32 users;3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,;Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Day/Night Switch

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

130 dB

SNR

≥ 52 dB

Image Enhancement

BLC,HLC,3D DNR

Privacy Mask

4 regions of privacy mask

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

;Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Audio

1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,;1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm

1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,supplement light,audible warning,trigger alarm output

Face Capture

Yes

Power

12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,;PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.43 A to 0.32 A, max. 18 W

Material

Aluminum alloy body

Dimension

298 mm × 97.9 mm × 95.7 mm (11.8″ × 3.9″ × 3.8″)

Package Dimension

385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)

Weight

Approx. 1465 g (3.2 lb.)

With Package Weight

Approx. 2081 g (4.6 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams

EMC

FCC: 47 CFR Part 15, Subpart B,;CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,;RCM: AS/NZS CISPR 32: 2015, ;IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,;CB: IEC 62368-1: 2014+A11,;CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, ;WEEE: 2012/19/EU

Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002
