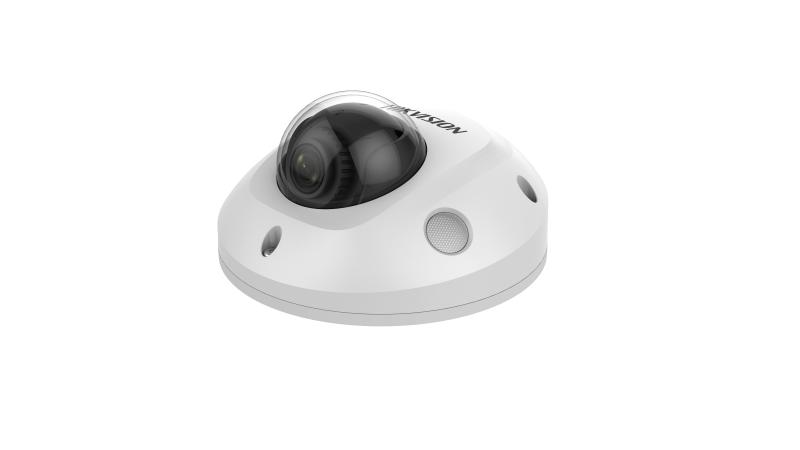

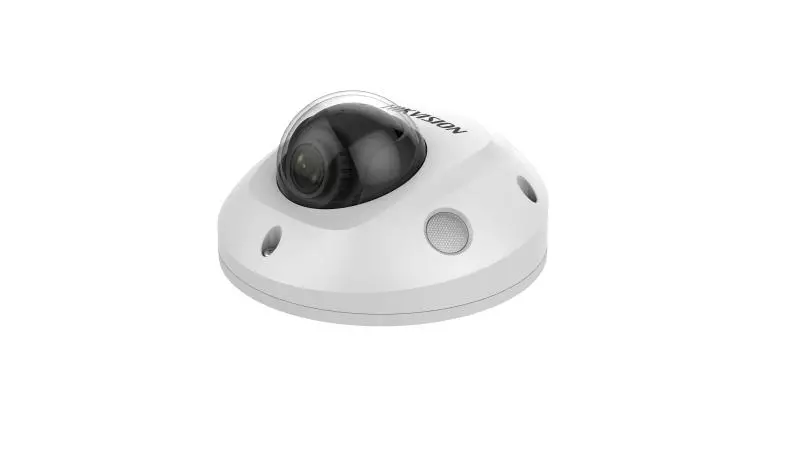

Hikvision DS-2CD2747G2H-LIPTRZS
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
4 MP Smart Hybrid Light ilə ColorVu motorlu PTRZ varifokal dome şəbəkə kamerası
Sorğu əsasında
Qiymət sorğusu- Camera
- Image Sensor
1/2.5″ Progressive Scan CMOS
- Min. Illumination
Color: 0.014 lux @(F1.6, AGC ON), 0 lux with IR on
- Shutter Speed
1/3 s to 1/100,000 s
- Slow Shutter
Yes
- Wide Dynamic Range
120 dB
- Day & Night
IR Cut Filter
- Angle Adjustment
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focus
Fixed
- Lens Type
2.8, 4, 6 mm
- FOV
2.8 mm: horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm: horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm: horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61° - Aperture
F1.6
- Lens Mount
M12
- Illuminator
- IR Range
Up to 10 m
- Wavelength
850 nm
- Video
- Max. Resolution
2688 × 1520
- Main Stream
50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) - Sub-Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) - Third Stream
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240) - Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 - Video Bit Rate
32 Kbps to 16 Mbps
- H.264 Type
Main Profile/High Profile
- H.265 Type
Main Profile
- H.264+
Main stream supports
- H.265+
Main stream supports
- Scalable Video Coding (SVC)
H.264 and H.265 encoding support
- Region of Interest (ROI)
Support 1 fixed region for main stream and sub-stream separately
- Audio
- Environment Noise Filtering
Yes
- Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View
Up to 6 channels
- API
ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host
Up to 32 users. 3 levels: administrator, operator and user
- Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage
Support MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client
Wired network: Hik-Connect, iVMS-4200, Hik-Central
Wi-Fi: iVMS-4200, Hik-Central
*Wi-Fi connection with Hik-Connect directly is not possible. - Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ - Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
- Wi-Fi
- Encryption Mode
-W: WPA, WPA2
- Wi-Fi Protocol
-W: IEEE 802.11b/g/n
- Frequency Range
-W: 2.412 GHz to 2.4835 GHz
- Channel Bandwidth
-W: 20 MHz
- Transfer Rate
-W:
11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps - Wireless Range
-W: Up to 50 m (The performance varies based on actual environment)
- Image
- Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Image Enhancement
BLC/3D DNR/HLC
- Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio
-S:
2 inputs: line in or mic in (built-in microphone)
1 output: line out, mono sound, terminal block - Alarm
-S:
1 input: alarm in
1 output: alarm out, terminal block - On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset
Yes
- Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
- Face Detection
Yes
- Exception Detection
Scene change detection
- General
- Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output , Email - Firmware Version
V5.6.5
- Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) - General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply
12 VDC ± 25%
PoE (802.3af) - Power Consumption and Current
12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W - Camera Dimension
Ø120 mm × 67.4 mm (Ø4.7″ × 2.7″)
- Camera Weight
Camera: approx. 400 g (0.9 lb.)
- Approval
- Protection
Ingress protection: IP67 (IEC 60529-2013), IK08 (IEC 60529-2013)
